EVAL_ISO2I828V_BK

Evaluation board for ISOFACE™ ISO2I828V Digital Input IC with GUI support for IEC 61131-2-compliant digital input modules

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL_ISO2I828V_BK
EVAL_ISO2I828V_BK


Product details


OPN
EVALISO2I828VBKTOBO1
Product Status coming soon
Infineon Package LG-MADK-1
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes

Product Status coming soon
Infineon Package LG-MADK-1
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

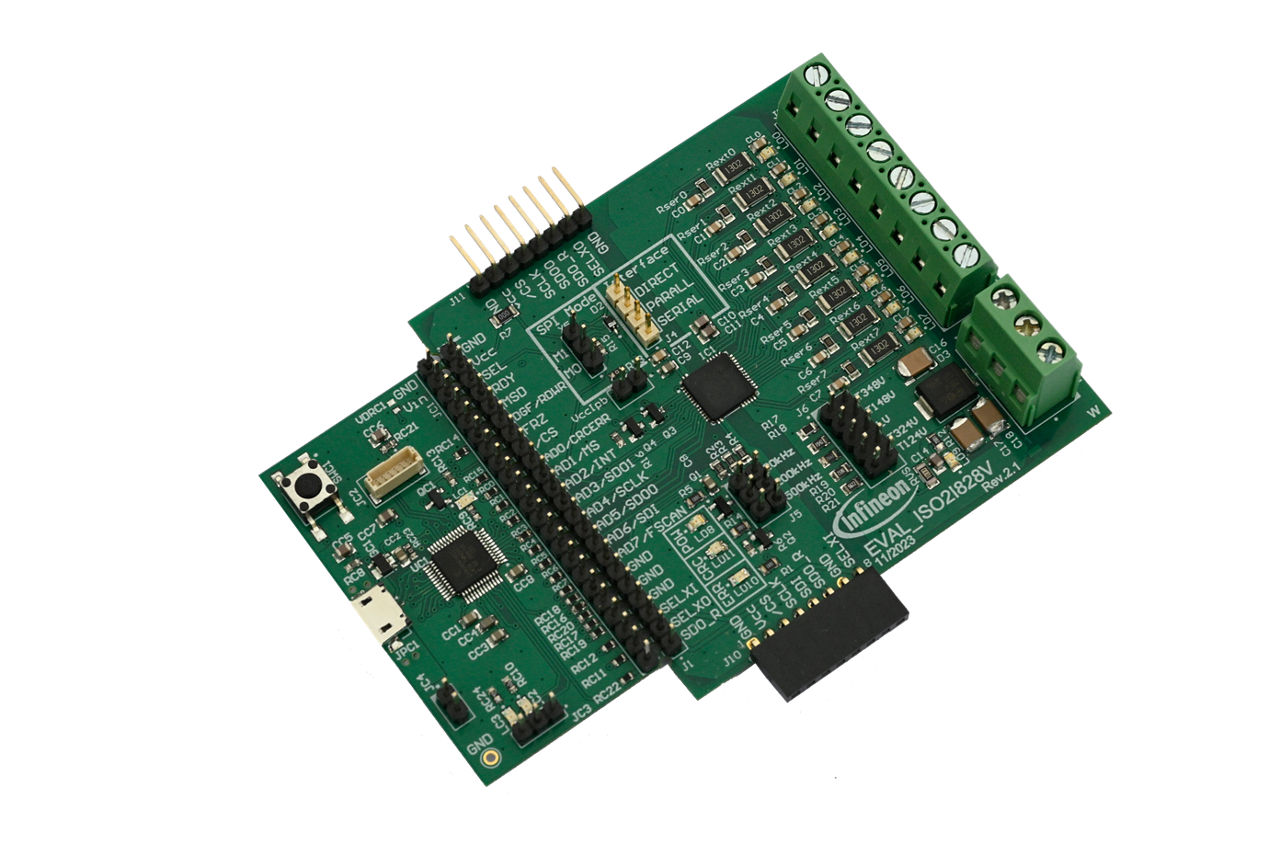

This board provides everything needed for a quick and efficient evaluation of the ISO2I828V. The detachable controller board helps users quickly become familiar with the IC’s functionality using only a PC and an external 24 V power supply, without any programming effort. The controller board has a pre-programmed PSoC™ 4 MCU that can be used directly with a GUI or terminal software to access all IC registers.

Features

  • Evaluation board for ISOFACE™ ISO2I828V
  • Sensor voltage up to ±60 V
  • Supply voltage up to 60 V
  • Supports Type 1 and Type 3 sensors
  • SPI and parallel interface
  • Access to all diagnostic registers
  • Digital filter for data and diagnostics
  • GUI-based device control
  • Interrupt pin highlighting input changes
  • Fully configurable with jumpers

Benefits

  • Accelerates design evaluation
  • Fast access/overview to IC registers
  • Functionality demo of ISOFACE™ ISO2I828V
