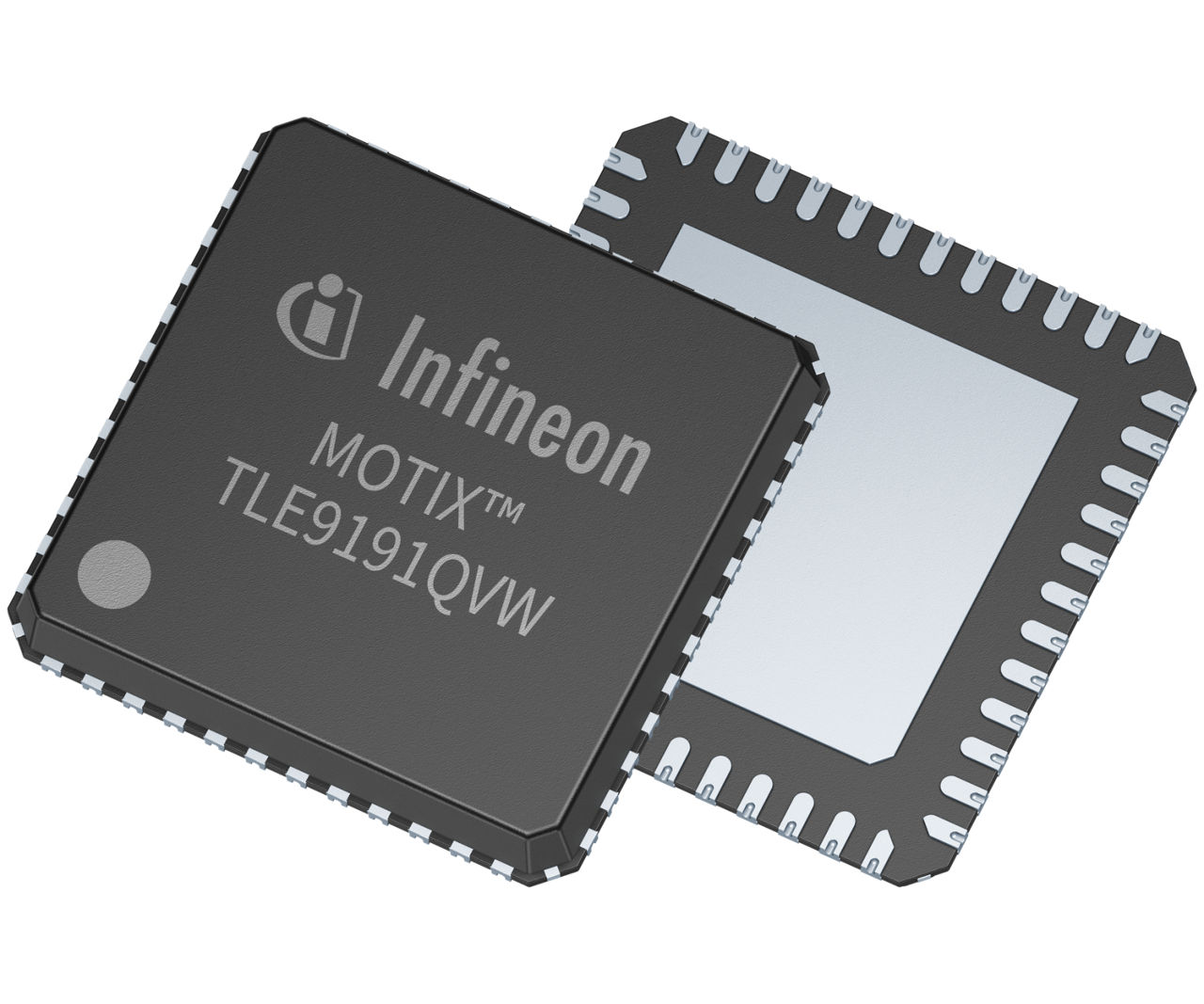

TLE9191QVW
NEW
coming soon
RoHS Compliant
Lead-free

TLE9191QVW

NEW
MOTIX™ TLE9191QVW, ISO 26262-compliant (ASIL D) gate driver IC for BLDC motors, with phase-cut off feature, for 24V and 48V battery voltage systems.
Data Sheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE9191QVW
TLE9191QVW
Data Sheet

Product details

  • Classification
    ISO 26262-compliant (ASIL D)
  • Configuration
    3-phase
  • Control Interface
    PWM, 32-bits SPI
  • Current Sense Amplifier
    3x CSA
  • Driving Capability
    230 nC at 20 kHz
  • Family
    MOTIX™ gate driver ICs for BLDC motors
  • Qualification
    Automotive
  • Supply Voltage range
    9 V to 60 V
  • Temperature range
    -40 °C to 175 °C
OPN
TLE9191QVWXUMA1
Product Status coming soon
Infineon Package
PG-VQFN-48
Package Name N/A
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status coming soon
Infineon Package
PG-VQFN-48
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
MOTIX™ TLE9190QVW gate driver IC for BLDC motors has a conventional motor control concept via PWM input and 3 integrated current sense amplifiers for accurate shunt current measurement. The adaptive MOSFET control feature helps improve EMC performance, achieve target switching time and reduce power losses. Target applications include functional safety related BLDC or PMSM motor drive applications like electric power steering (EPS).

Features

  • Drives 6 MOSFETs, Qgtot= 230 nC/MOSFET
  • Supply voltage range of 9 V to 60 V
  • 0..100% duty cycle w/o restrictions
  • Motor control concept with PWM input
  • 3 integrated current sense amplifiers
  • Ext. monitoring & diagnostics via SPI
  • Support of self-test features
  • Passive clamping of external FETs
  • Current source-controlled output stage
  • VQFN-48 (7x7mm2)

Benefits

  • Reduced external component count
  • Optimized system cost
  • Configurable gate current sequencer
  • Configurable failure reactions
  • Automotive quality (AEC-Q100)
  • Ext. temperature range (-40 to 175°C)
  • ISO 26262 FuSa-compliant: ASIL D
