IRS2552DSPBF

CCFL / EEFL Ballast Controller IC
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IRS2552DSPBF
IRS2552DSPBF
Data Sheet

Product details

  • Output Current (Source)
    300 mA
  • Output Current (Sink)
    450 mA
  • Package
    16-lead SOIC Narrow
  • Topology
    Half-Bridge Resonant
OPN
Product Status
Infineon Package
Package Name
Packing Size
Packing Type
Moisture Level
Moisture Packing
Lead-free
Halogen Free
RoHS Compliant
Infineon stock last updated:

Benefits

  • Drives up to two IGBT/MOSFET power devices
  • Integrated programmable oscillator
  • Supports multi-lamp operation
  • Burst dimming with soft start at every burst
  • Latched open circuit protection
  • Integrated bootstrap functionality
  • Excellent latch immunity on all inputs and outputs
  • Integrated ESD protection on all pins
  • Soft start function
  • 15.6 V voltage clamp on VCC
  • Micro-power startup
  • 0 V to 5 V input analog dimming
  • Programmable ignition frequency
  • Programmable ignition time
  • Lamp current control
  • Programmable deadtime

Applications

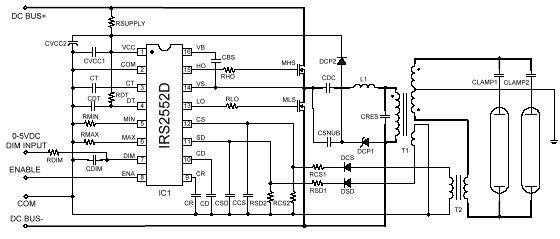

Diagrams

tc-irs2552d
tc-irs2552d
tc-irs2552d tc-irs2552d tc-irs2552d
×
