IRS2118S

600 V single high-side gate driver IC with single input
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IRS2118S
IRS2118S
ea.
Data Sheet

Product details

  • Channels
    1
  • Configuration
    High-side
  • Input Vcc
    10 V to 20 V
  • Isolation Type
    Functional levelshift JI (Junction Isolated)
  • Output Current (Source)
    0.29 A
  • Output Current (Sink)
    0.6 A
  • Qualification
    Industrial
  • Turn Off Propagation Delay
    105 ns
  • Turn On Propagation Delay
    125 ns
  • VBS UVLO (On)
    8.6 V
  • VBS UVLO (Off)
    8.2 V
  • VCC UVLO (On)
    8.6 V
  • VCC UVLO (Off)
    8.2 V
  • Voltage Class
    600 V
Recommended
OPN
IRS2118STRPBF
Product Status active and preferred
Infineon Package
SOIC 8N
Package Name N/A
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 2
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
SOIC 8N
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 2
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
600 V High Side Driver IC with typical 0.29 A source and 0.6 A sink currents in 8 Lead SOIC package for IGBTs and MOSFETs. Also available in 8 Lead PDIP.

Features

  • Floating channel for bootstrap op.
  • Fully operational to +600 V
  • Tolerant to neg. transient volt.
  • dV/dt immune
  • Gate drive supply: 10 V to 20 V
  • Undervoltage lockout
  • CMOS Schmitt-triggered inputs
  • Outputs out of phase with inputs (IRS2118)
  • Outputs in phase with inputs (IRS2117 and IRS21171 )

Applications

Diagrams

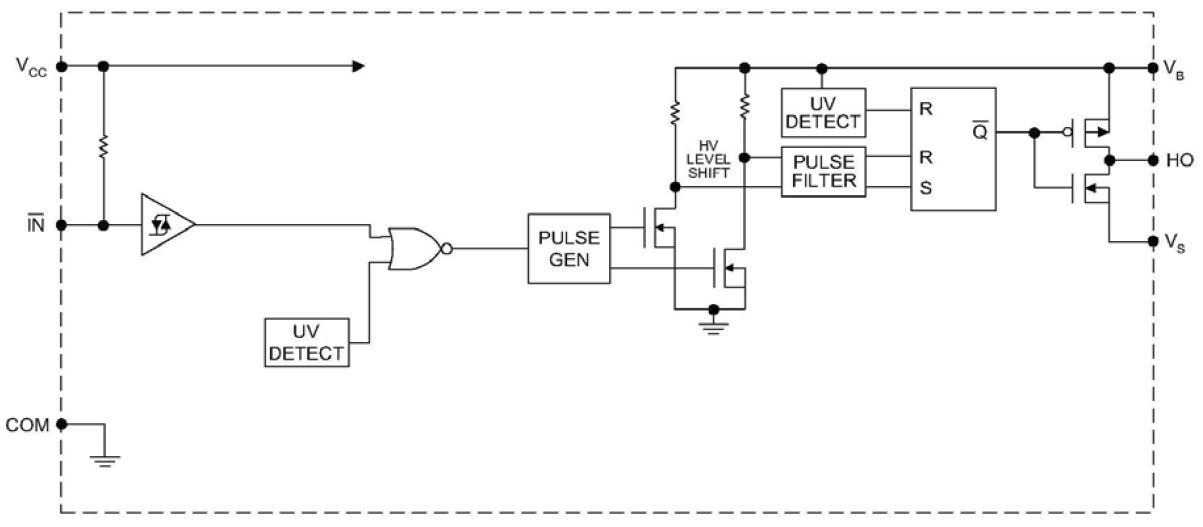

Circuit_Diagramm_IRS2118
Circuit_Diagramm_IRS2118
Circuit_Diagramm_IRS2118 Circuit_Diagramm_IRS2118 Circuit_Diagramm_IRS2118
×
