FP15R12KT3

END OF LIFE
1200 V, 15 A PIM three phase input rectifier IGBT module
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FP15R12KT3
FP15R12KT3
Data Sheet

Product details

  • Configuration
    PIM
  • Dimensions (width)
    45 mm
  • Dimensions (length)
    107 mm
  • Housing
    EconoPIM™ 2
  • IC(nom) / IF(nom)
    15 A
  • IC max
    15 A
  • Qualification
    Industrial
  • Technology
    IGBT3 - T3
  • VCE(sat) (Tvj=25°C typ)
    1.7 V
  • VF (Tvj=25°C typ)
    1.65 V
  • Voltage Class max
    1200 V
OPN
FP15R12KT3BPSA1
Product Status discontinued
Infineon Package AG-ECONO2C
Package Name N/A
Packing Size 15
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status discontinued
Infineon Package AG-ECONO2C
Package Name -
Packing Size 15
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
EconoPIM™ 2 1200 V, 15 A three phase PIM IGBT module with fast TRENCHSTOP™ IGBT3 and NTC.

Features

  • Low stray inductance module design
  • High reliability and power density
  • Copper base plate for optimized heat spread
  • Solderable pins
  • Low switching losses
  • High switching frequency
  • RoHS compliant

Applications

Motor control

Diagrams

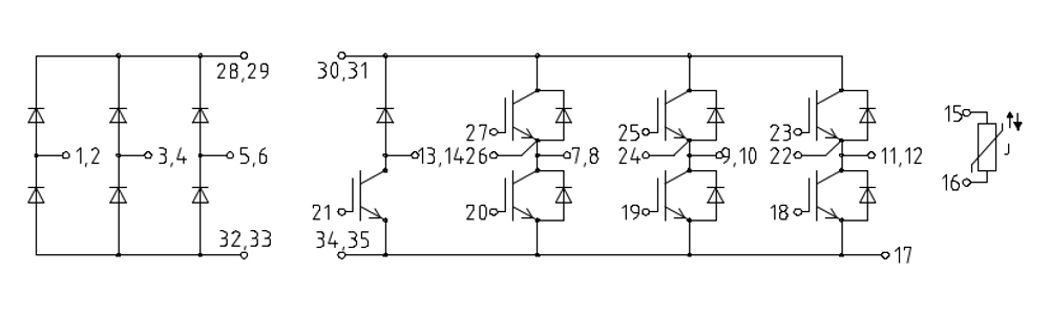

Econo_FP
Econo_FP
Econo_FP Econo_FP Econo_FP
×
