FS225R17OE4

END OF LIFE
1700 V, 225 A sixpack IGBT module
Data Sheet
package
View replacement

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

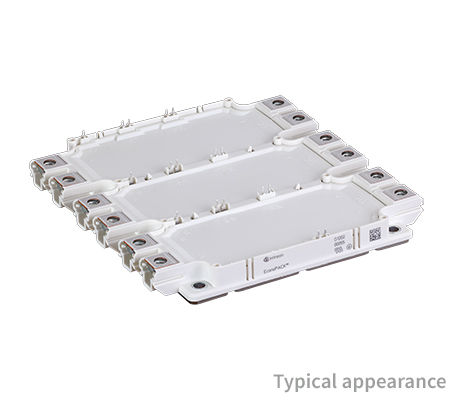

FS225R17OE4
FS225R17OE4
View replacement
Data Sheet

Product details

  • Configuration
    Sixpack
  • Dimensions (length)
    162 mm
  • Dimensions (width)
    150 mm
  • Features
    PressFIT
  • Housing
    EconoPACK™ + D
  • IC(nom) / IF(nom)
    225 A
  • IC max
    225 A
  • Qualification
    Industrial
  • Technology
    IGBT4 - E4
  • VCE(sat) (Tvj=25°C typ)
    1.95 V
  • VCES / VRRM
    1700 V
  • VF (Tvj=25°C typ)
    1.8 V
  • Voltage Class max
    1700 V
OPN
FS225R17OE4BOSA1
Product Status discontinued
Infineon Package
AG-ECONOPP
Package Name N/A
Packing Size 4
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
View replacement

Product Status discontinued
Infineon Package
AG-ECONOPP
Package Name -
Packing Size 4
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
EconoPACK™ + D-series 1700 V, 450 A sixpack IGBT module with Trench/Fieldstop IGBT4, Emitter Controlled 3 diode and NTC.

Features

  • High short circuit capability
  • Self limiting short circuit current
  • Unbeatable robustness
  • Tvj op = 150°C
  • High surge current capability
  • High mechanical robustness
  • Integrated NTC temperature sensor
  • Isolated base plate
  • RoHS compliant

Applications

Wind power
