Active and preferred
RoHS Compliant
Lead-free

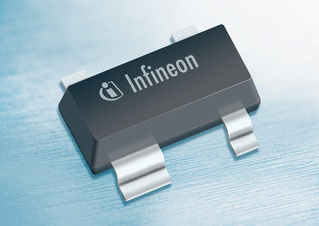

BAS3007A-RPP

Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

BAS3007A-RPP
BAS3007A-RPP
ea.
Data Sheet

Product details

  • Configuration
    4 Bridge
  • CT max
    10 pF
  • IF max
    900 mA
  • Mounting
    SMT
  • VF max
    0.6 V
  • VR max
    30 V
Recommended
OPN
BAS3007ARPPE6327HTSA1
Product Status active and preferred
Infineon Package
SOT143-4-10
Package Name N/A
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free Yes
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
SOT143-4-10
Package Name -
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
Reverse voltage: 30 V.Forward current: 0.9 A.Small diode quad array for polarity independence,reverse polarity protection and low loss bridge rectification.Very low forward voltage:0.5 V typ. @ 0.7 A (per diode).Fast switching.Pb-free (ROHS compliant) package1

Features

  • Schottky Diode rectifier with fast
  • switching speed and low voltage drop
  • for high energy efficiency rectifiers
  • Very small systems
  • Full bridge and Half bridge
  • combinations available
  • Suitable also for advanced reverse
  • polarity protection
