IR25601S

600 V half-bridge gate driver IC with shoot through protection
Datasheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IR25601S
IR25601S
Datasheet


Product details

  • Channels
    2
  • Configuration
    Half-Bridge
  • Input Vcc range
    10 V to 20 V
  • Isolation Type
    Functional levelshift JI (Junction Isolated)
  • Output Current (Sink)
    0.169 A
  • Output Current (Source)
    0.078 A
  • Qualification
    Industrial
  • Turn Off Propagation Delay
    220 ns
  • Turn On Propagation Delay
    220 ns
  • VBS UVLO (Off)
    8.2 V
  • VBS UVLO (On)
    8.9 V
  • VCC UVLO (Off)
    8.2 V
  • VCC UVLO (On)
    8.9 V
  • Voltage Class
    600 V

Recommended
OPN
IR25601STRPBF
Product Status active
Infineon Package
SOIC 8N
Package Name N/A
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 2
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Country of Assembly (CoA)
TH
Country of Diffusion (CoD)
TW,US
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
SOIC 8N
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 2
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
Country of Assembly (CoA)
TH
Country of Diffusion (CoD)
TW,US
600 V Half Bridge Driver IC with typical 0.078 A source and 0.169 A sink currents in 8 Lead SOIC package for IGBTs and MOSFETs.

Features

  • Floating channel for bootstrap op.
  • Fully operational to +600 V
  • Tolerant to neg. transient volt.
  • dV/dt immune
  • Gate drive supply: 10 V to 20 V
  • Under voltage lockout for both channels
  • 3.3, 5 & 15 V input logic compatib.
  • Cross-conduction prevention logic
  • Internally set dead-time (100ns)
  • Outputs in phase with inputs
  • Matched prop. delay for both chan.
  • Lower di/dt gate driver

Benefits

  • Independent output channels give flexible high- and low-side control
  • High- and low-side driver in one IC means smaller PCB area and lower BOM

Diagrams

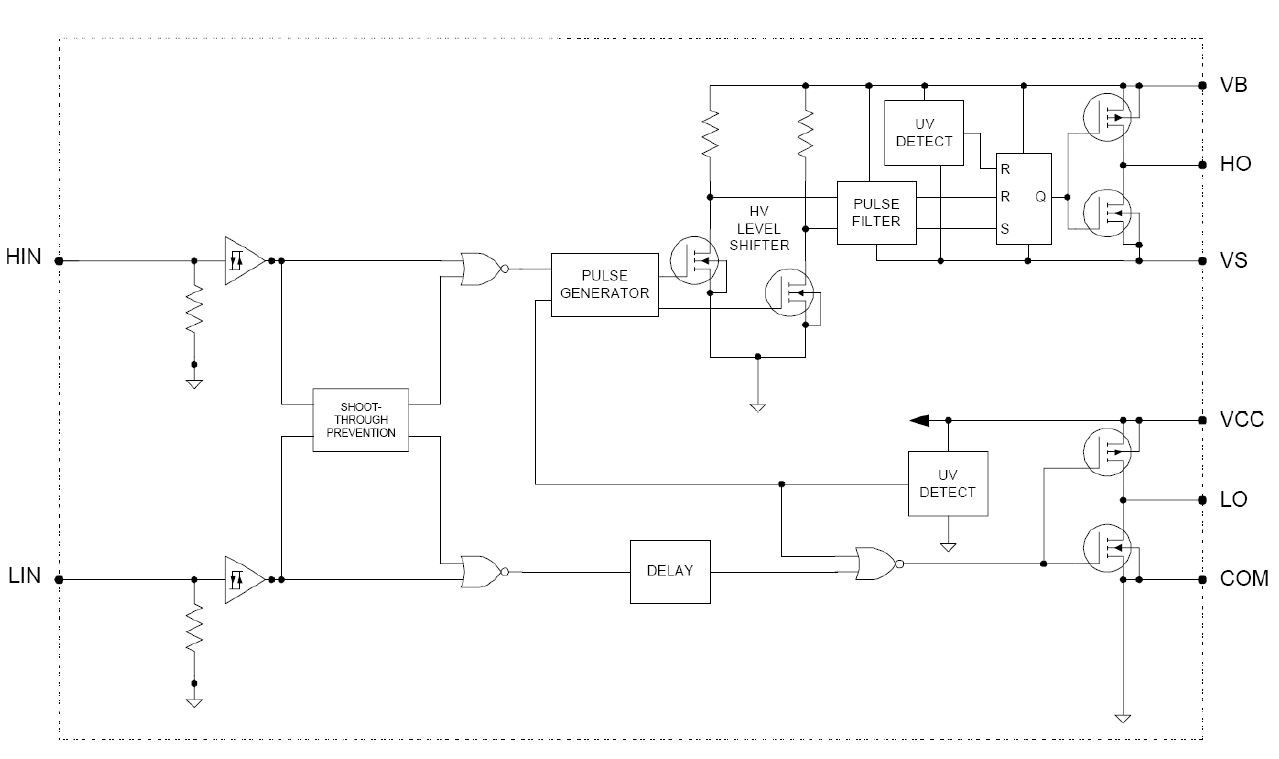

Circuit_Diagramm_IR25601
Circuit_Diagramm_IR25601
Circuit_Diagramm_IR25601
×
