FS980R08A7F32B

NEW

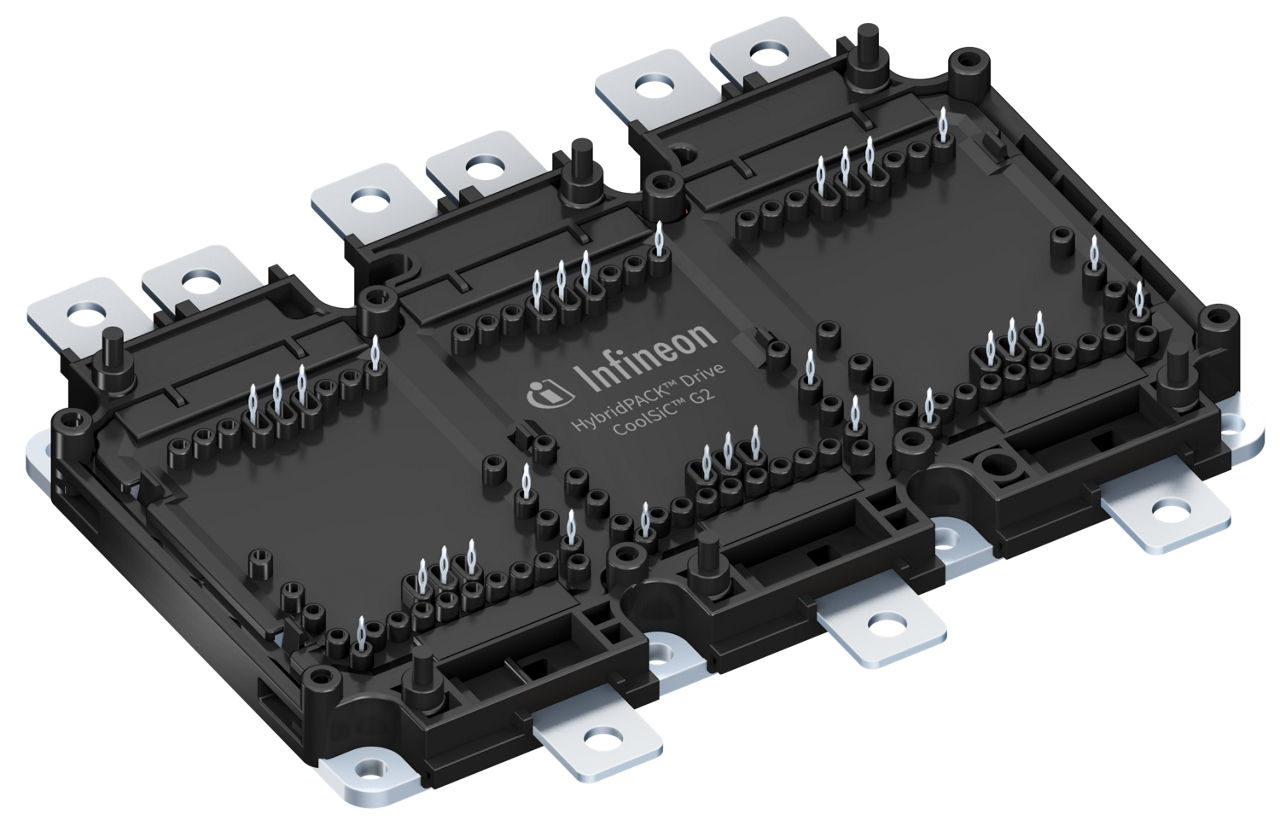

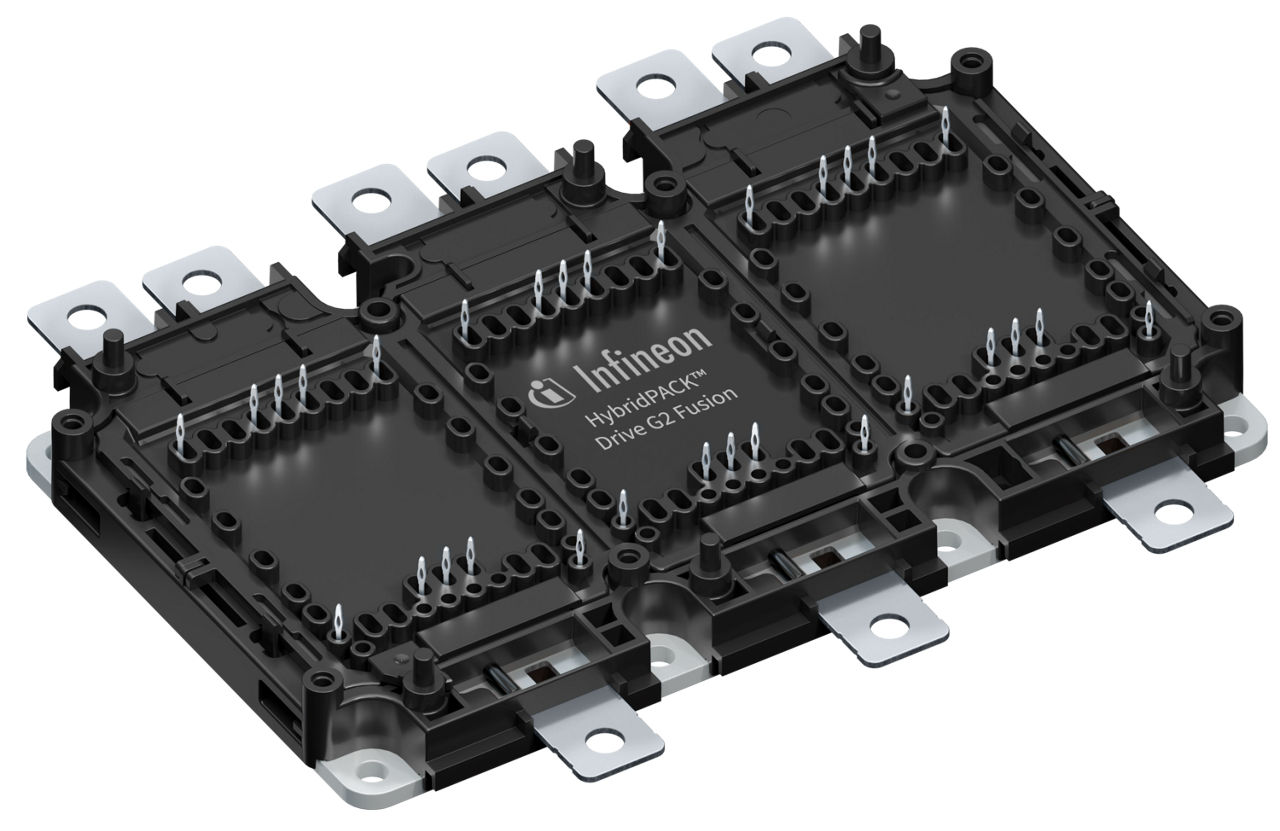

HybridPACK™ Drive G2 with Si/SiC Fusion switch : Compact 750V B6-bridge power module optimized for inverter various power classes
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FS980R08A7F32B
FS980R08A7F32B
Data Sheet

Product details

  • Configuration
    Sixpack
  • Cooling Concept
    PinFin baseplate
  • Features
    Short Tabs, PinFin baseplate
  • Housing
    HybridPACK™ Drive G2
  • IC max
    980 A
  • Launch year
    2026
  • Planned to be available until at least
    2040
  • Qualification
    Automotive
  • Technology
    IGBT EDT3, CoolSiC™ G2
  • VCES (Tvj=25°C typ)
    750 V
  • Voltage Class max
    750 V
Recommended
OPN
FS980R08A7F32BHPSA1
Product Status active and preferred
Infineon Package AG-HDFSXT-3311
Package Name N/A
Packing Size 6
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package AG-HDFSXT-3311
Package Name -
Packing Size 6
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The power module combines the latest EDT3 IGBT 750V and second generation CoolSiC™ Automotive MOSFET 750V, optimized for electric drive train applications, from mid- to high-range automotive power classes to high-range commercial, construction, and agricultural vehicles.

Features

  • EDT3 IGBT/Diode & CoolSiC Gen2 MOSFET
  • Optimized for simultaneous gate drive
  • Integrated on-chip temperature sensor
  • Low conduction and switching losses
  • Low inductive design
  • Tvj,op = 175°C
  • 4.25kV DC 1s insulation
  • High power density
  • Direct-cooled PinFin base plate
  • PressFIT contact technology
  • High-performance Si3N4 ceramic
  • Guiding elements for PCB & cooler assembly

Benefits

  • Higher temperature cycling capability
  • Integrated on-chip temperature sensor
  • New plastic material
  • Better temperature capability
  • Improved thermal conductivity
  • Lower system BOM
  • Lower AC contact resistance
  • Lower tab temperature
  • PressFIT Contact Technology
  • RoHS compliant
  • Completely Pb free
  • Superior reliability

Applications
