CYW55572

Wi-Fi 6 tri-band 2x2 Wi-Fi and Bluetooth® 6.0 SoC
Data Sheet
package
board

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

CYW55572
CYW55572
Data Sheet

Product details

  • Antenna Configuration
    2x2
  • Bluetooth Interface
    UART/PCM/I2S
  • Bluetooth Specification
    Bluetooth 6.0
  • Core
    Cortex-M33
  • CPU
    N/A
  • Dimensions
    5.32 x 5.67 mm, 12 x 12 mm, 5.3 x 5.7 mm
  • Family
    AIROC™ Wi-Fi + Bluetooth® Combos
  • GPIOs
    15
  • Launch Date
    2023
  • Longevity - 15 years
    Yes
  • Longevity - Extended
    No
  • Memory
    N/A
  • Operating system support
    Linux, Android
  • Operating Temperature
    -40 °C to 85 °C
  • Operating Voltage
    3 V to 4.8 V
  • Package
    WLCSP-486, WLBGA-225, FCFBGA-289
  • Partner Module
    Y
  • Pitch
    0.2 mm, 0.35 mm, 0.65 mm
  • Currently planned availability until at least
    01-01-2038
  • Product Description
    Wi-Fi 6 Combo
  • ROM
    2000 KB
  • SRAM
    512 kByte
  • Wi-Fi Band
    2.4GHz, 5GHz
  • WI-FI Interface
    SDIO/PCIe
  • Wi-Fi Specification
    Wi-Fi 6 (802.11ax)
Recommended
OPN
CYW55572MIFFBGT CYW55572MIWBGT CYW55572MIUBGT
Product Status active and preferred active and preferred active and preferred
Infineon Package
PG-TF2BGA-289
SG-XFWLB-486 SG-UFWLB-225
Package Name FCFBGA-289 (002-29083) WLCSP-486 (002-29726) WLBGA-225 (002-36128)
Packing Size 1500 5000 5000
Packing Type TAPE & REEL TAPE & REEL TAPE & REEL
Moisture Level 3 1 1
Moisture Packing DRY NON DRY NON DRY
Lead-free No No Yes
Halogen Free No No Yes
RoHS Compliant Yes Yes Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
PG-TF2BGA-289
Package Name FCFBGA-289 (002-29083)
Packing Size 1500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant

Product Status
Active
Infineon Package SG-XFWLB-486
Package Name WLCSP-486 (002-29726)
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

Product Status
Active
Infineon Package SG-UFWLB-225
Package Name WLBGA-225 (002-36128)
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The AIROC™ CYW55572 is part of Infineon's Wi-Fi 6 and Bluetooth® 5.3 SoC family. The highly integrated solution supports dual-band Wi-Fi 6 (2.4G, 5G) 2x2 MIMO. It offers an exceptional video/audio streaming and seamless gaming experience in congested network environments and significantly boosts range and coverage, while also decreasing total Bill of Materials cost and board space.

Features

  • Wi-Fi 6, dual-band, 2x2 MIMO
  • 20/40/80 MHz, up to 1.2 Gbps PHY rate
  • OFDMA, MU-MIMO, TWT,DCM
  • Enhanced range, pwr & network efficiency
  • Multi-layer security protection
  • Smart coexistence
  • Temperature: -40°C to 85°C
  • Bluetooth® 5.3, Dual-mode operation
  • LE audio w/Auracast, LE- 2M, LR, Adv Ext
  • Bluetooth transmit at 20dbm/13dbm/0 dbm

Benefits

  • Performance beyond Wi-Fi 6/6e
  • Maximizes network efficiency
  • Extended edge AI+IoT device capabilities
  • High quality Bluetooth® LE audio
  • Multi-layer security protection
  • Accelerates time to market
  • Reduces development costs

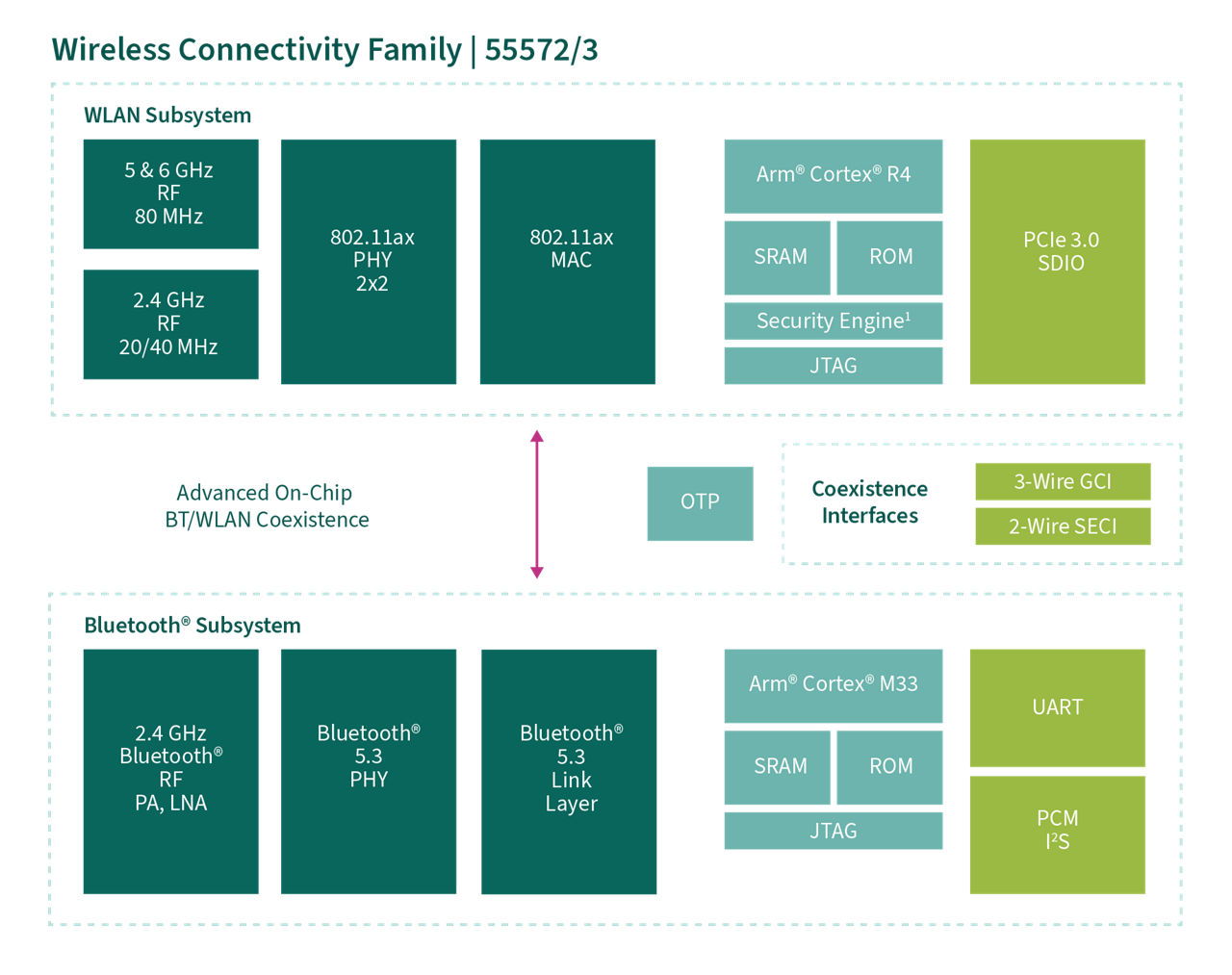

Diagrams

CYW55572_3-Block-Diagram
CYW55572_3-Block-Diagram
CYW55572_3-Block-Diagram CYW55572_3-Block-Diagram CYW55572_3-Block-Diagram
×
