Active and preferred
RoHS Compliant

CYBLE-333073-02

Data Sheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

CYBLE-333073-02
CYBLE-333073-02
Data Sheet

Product details

  • ADC (#, Max. Resolution @ Sample Rate)
    SD(1,12 bit ENoB (audio), 10-bit ENoB (DC), 12MHz Clock)
  • Base Silicon
    CYW20835
  • Bluetooth Classic
    No
  • Bluetooth EDR 2MBPS RX SENSITIVITY
    N/A
  • Bluetooth EDR 2Mbps TX POWER
    N/A
  • Bluetooth LE Data rate
    2 MByte/s
  • Bluetooth LE RX SENSITIVITY
    - 94.5 dBm
  • Bluetooth LE TX POWER
    12 dBm
  • Bluetooth LE
    Yes
  • CapSense
    No
  • CPU Core
    96MHz
  • Extended Range
    No
  • Family
    AIROC™ Bluetooth Modules
  • Flash
    512 kByte
  • GPIOs
    24
  • I2C
    1
  • Launch Date
    31-12-2019
  • Longevity - 15 years
    Yes
  • Longevity - Extended
    No
  • Main CPU Core
    Arm® Cortex®- M4
  • Operating Temperature
    -30 °C to 85 °C
  • Operational Amplifier
    No
  • Pads
    45
  • PDM
    1
  • Planned to be available until at least
    31-12-2034
  • PWM
    6
  • ROM
    2MB
  • Secondary CPU Core
    None
  • Serial Communication Blocks
    0
  • Size (X mm x Y mm x Z mm)
    13.31 x 21.89 x 1.95 mm
  • SPI
    1
  • SRAM
    384 kByte
  • Type of Antenna
    External - RF pad
  • UART
    2
  • V
    2.5 V to 3.6 V
Recommended
OPN
CYBLE-333073-02
Product Status active and preferred
Infineon Package
LG-MLGA-42
Package Name MODULE-42 (002-28053)
Packing Size 500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
LG-MLGA-42
Package Name MODULE-42 (002-28053)
Packing Size 500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant

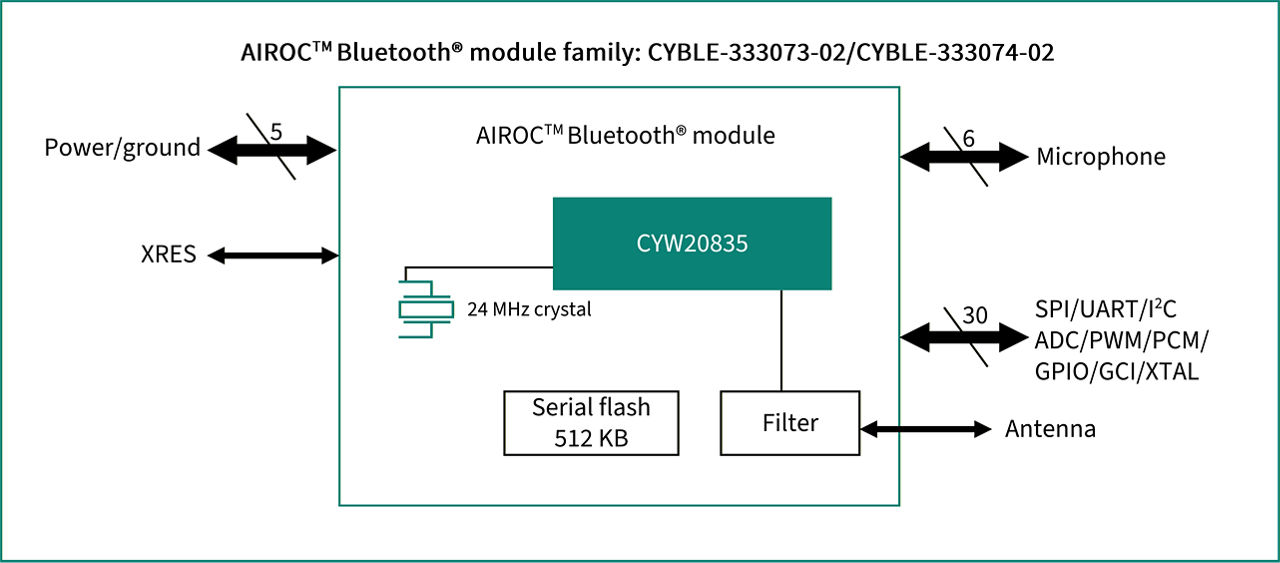

Infineon’s AIROC™ CYBLE-333073-02 is a fully certified Bluetooth® LE module based on Infineon’s CYW20835. This embedded module includes a royalty-free Bluetooth® stack compatible with Bluetooth® 5.0 and is available in 13.31 x 21.89 x 1.95 mm SMT form-factor. This module complies with Bluetooth® Core 5.2 and has gone through Qualification with Required Testing path with Declaration ID D056777 and QDID 176091.

Features

  • FCC, ISED, MIC, and CE certified
  • Onboard crystal oscillator
  • Passive components
  • Flash memory
  • RF solder pad for external antenna

Benefits

  • Support fast time-to-market
  • Support a wide spectrum of applications

Applications
