AUIRS2092S

Automotive High Voltage, high performance Class D audio aplifier driver with PWM modulator and protection in a 16-Lead SOIC Narrow Package
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

AUIRS2092S
AUIRS2092S
Data Sheet

Product details

  • Qualification
    Automotive
OPN
Product Status
Infineon Package
Package Name
Packing Size
Packing Type
Moisture Level
Moisture Packing
Lead-free
Halogen Free
RoHS Compliant
Infineon stock last updated:

Benefits

  • Integrated analog input Class D audio amplifier driver in a small 16 pin package
  • Floating inputs enable easy half bridge implementation
  • Programmable bidirectional over-current protection with self-reset function
  • Programmable preset deadtime for improved THD performances
  • + - 100V ratings deliver up to 500W in output power
  • Start and stop click noise reduction
  • High noise immunity
  • Operates up to 800kHz
  • ROHS compliant
  • Audio Reference Design IRAUDAMP7S

Applications

Diagrams

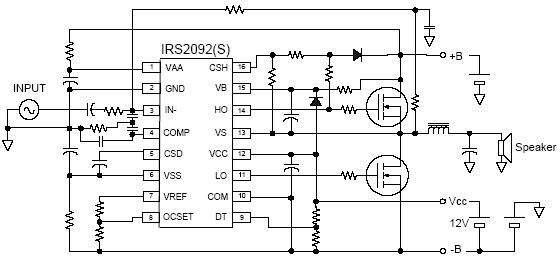

tc-irs2092
tc-irs2092
tc-irs2092 tc-irs2092 tc-irs2092

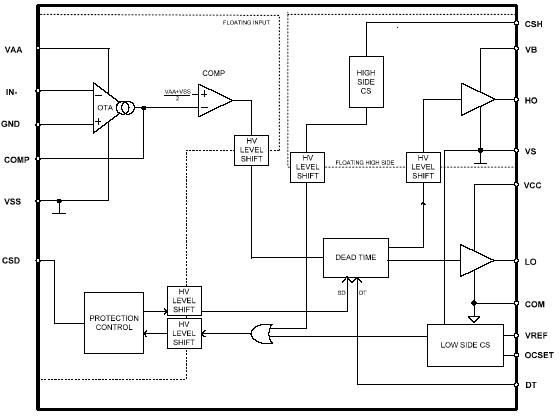

fbd-irs2092 fbd-irs2092 fbd-irs2092
×
modalImg
