FMx Pin and Code Wizard

About fmx-pin-and-code-wizard

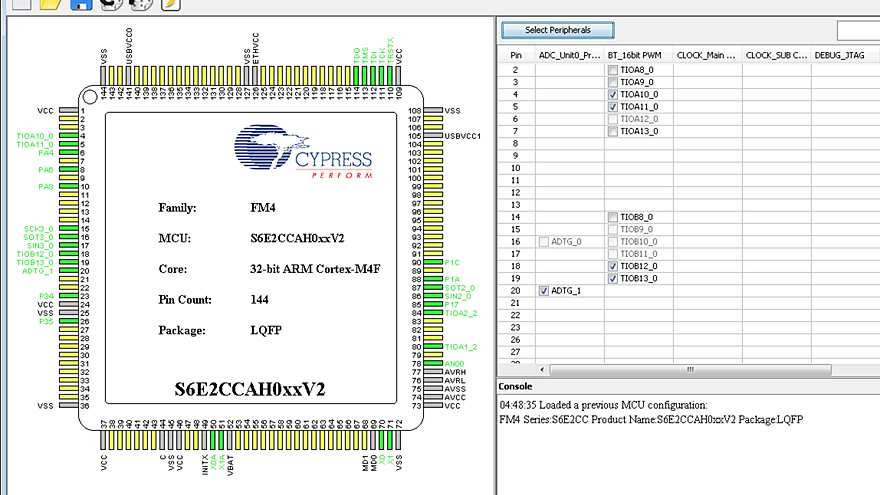

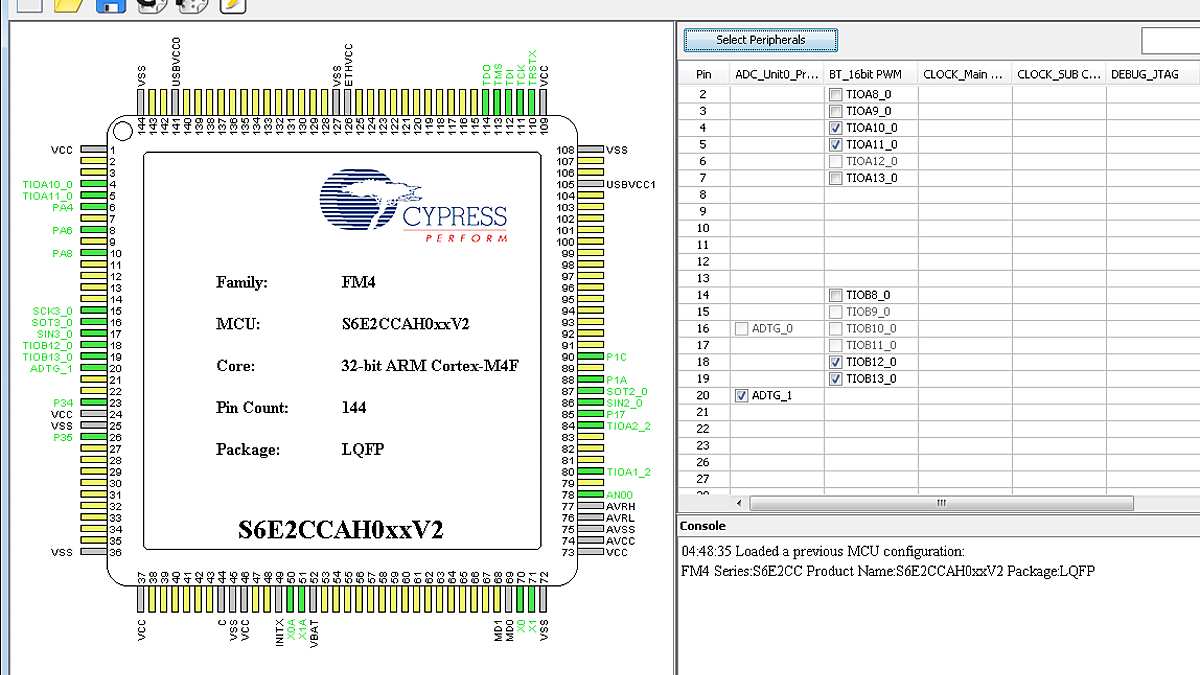

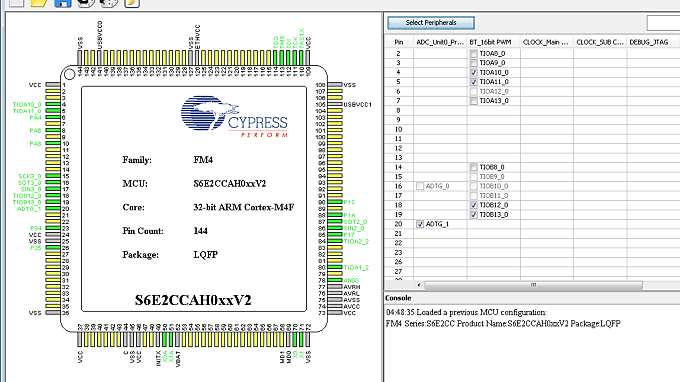

This Pin and Code Wizard is the tool helps to set the IO ports for 32-bit ARM® Cortex® microcontroller, and it has the following features.

After activating the peripherals and GPIOs, which are used, the tool assigns the peripherals to the corresponding pins automatically.
Customize easily the result of Pin assignment by graphical user interface.
Setting easily the port relocation.
The tool outputs the source code according to the Setting of IO port for peripheral library function calls.
Generating projects several IDEs.
The Pin and Code Wizard has the following advantages:
Decrease of the development costs.
Usage of the peripherals at their maximum.

Software: JRE (Java Runtime Environment) 32bit Version 7 or later
OS: Windows7(32bit/64bit) English/Japanese; Windows8(32bit/64bit) English/Japanese
Memory: About 1GB or more (Recommended 2GB or more)
Hard disk: About 1GB free capacity is required for installation

Note: Above conditions do not guarantee all operation.
