Active and preferred
RoHS Compliant
Lead-free

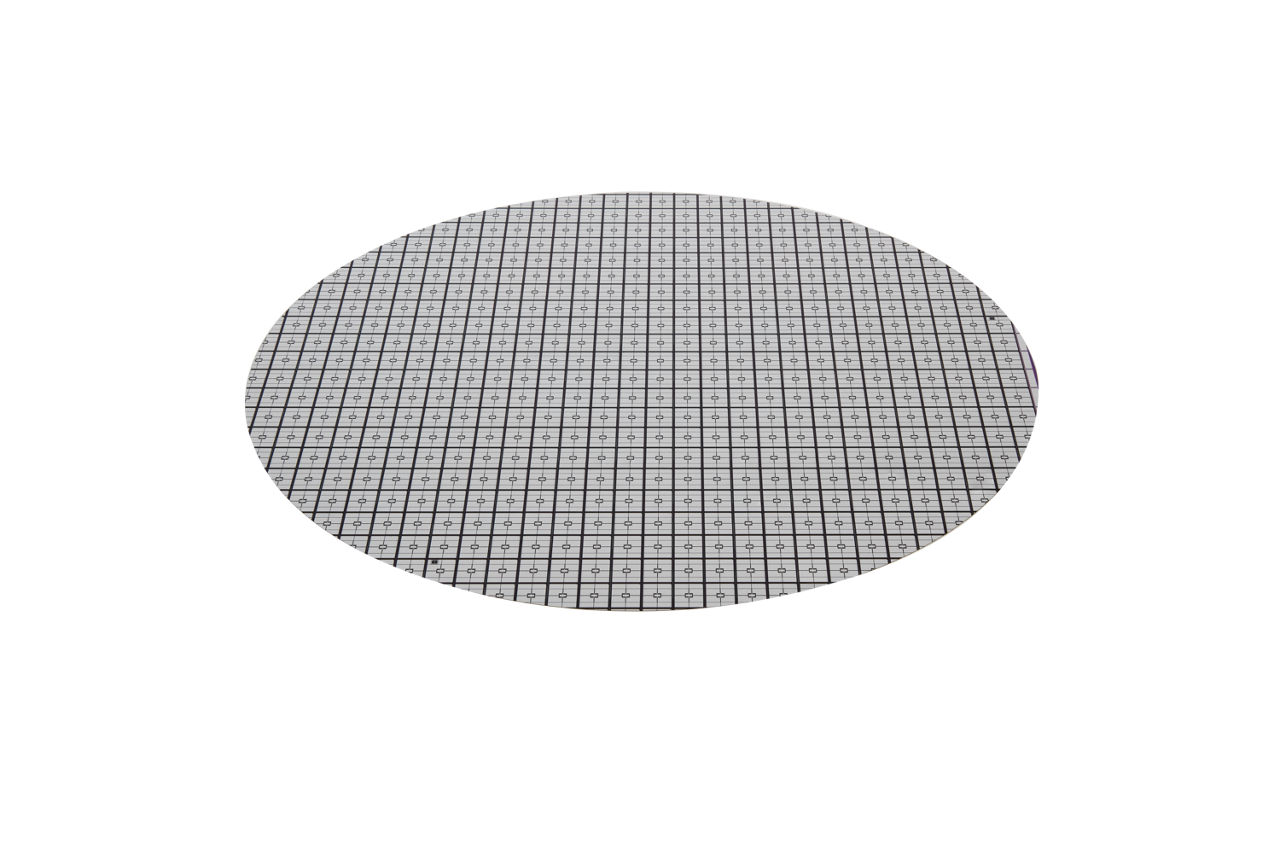

IDC52D75H8DA

Unleashing the Power of Infineon's Cutting-Edge Si IGBT Technology
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IDC52D75H8DA
IDC52D75H8DA
Data Sheet

Product details

  • IFn
    320 A
  • Tvj [°C]
    -40 to 185
  • VF (Tvj=185°C @200A)
    1.45 V
  • VRRM
    750 V
Recommended
OPN
IDC52D75H8DAX7SA1
Product Status active and preferred on request
Infineon Package -- --
Package Name N/A N/A
Packing Size 1 1
Packing Type HORIZONTAL FRAME SHIPPER HORIZONTAL FRAME SHIPPER
Moisture Level N/A N/A
Moisture Packing DRY DRY
Lead-free Yes No
Halogen Free Yes Yes
RoHS Compliant Yes Yes
Infineon stock last updated:

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type HORIZONTAL FRAME SHIPPER
Moisture Level -
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant

Product Status on request
Infineon Package --
Package Name -
Packing Size 1
Packing Type HORIZONTAL FRAME SHIPPER
Moisture Level -
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
Our latest EDT3 devices offer voltage classes of 750 V and 1200 V, delivering unprecedented output current for main inverter applications in low-cost and high-performance vehicles. With the ability to design and manufacture custom power modules tailored to specific application requirements, our Si IGBT & Diode solutions are set to transform the automotive landscape, elevating performance, efficiency, and reliability to new heights.

Features

  • Best-in-class current density
  • Suitable for 470 V VDC systems
  • Maximum junction temperature of 185 °C
  • High switching speed
  • Very low switching losses
  • Very tight parameter distribution
  • Double side solderable and sinterable
  • Product validation acc. to AEC-Q101

Benefits

  • Ideal for automotive requirements
  • Available in 750 V and 1200 V class
  • Customized development (on demand)
  • Decreased losses and increased max. Tvj
  • Cost benefit due to module shrink
  • Low costs per Ampere on system level
  • Less parallelization effort and costs
  • High reliability and quality
  • Drop-in replacement

Applications
