not for new design

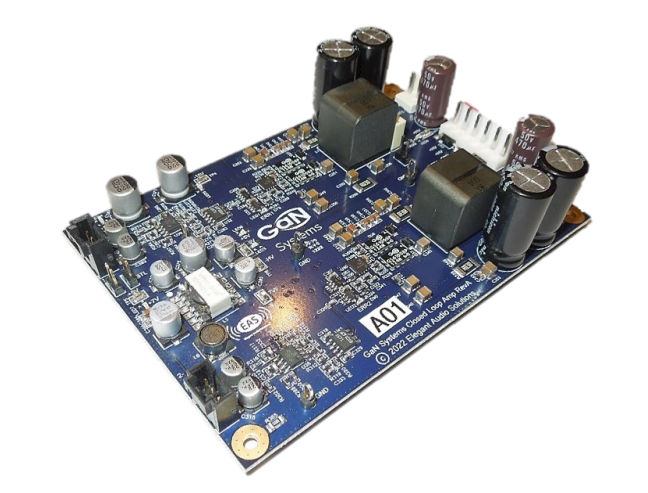

GS-EVM-AUD-AMPCL1-GS

Self-contained class D amplifier module designed for manufacturers of powered loudspeakers, stand-alone stereo and multi-channel amplifiers
User Manual

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

GS-EVM-AUD-AMPCL1-GS
GS-EVM-AUD-AMPCL1-GS
User Manual

Product details

  • Input Type
    DC
  • Input Voltage
    20 V to 32 V
  • Output Current max
    20 A
OPN
GSEVMAUDAMPCL1GSTOBO2
Product Status not for new design
Infineon Package --
Package Name N/A
Packing Size N/A
Packing Type N/A
Moisture Level N/A
Moisture Packing N/A
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:

Product Status not for new design
Infineon Package --
Package Name -
Packing Size 0
Packing Type
Moisture Level -
Moisture Packing
Lead Free
Halogen Free
RoHS Compliant
The GS-EVM-AUD-AMPCL1-GS features enhancement mode CoolGaN™ power transistors coupled with next-generation EiceDRIVER™ gate driver technology, providing highest quality output filters for best audio quality and sound. In addition, the design does not require heat sink under normal operating conditions.

Features

  • High-performance class D amplifier
  • Dual post-filter feedback loop
  • 50 W / channel x 2 into 8 Ω
  • 200 W single-channel BTL into 8 Ω
  • 300 W single-channel BTL into 4 Ω

Benefits

  • Superior sound and high audio quality
  • Reduction in system size and weight
  • No heat sink required
  • Efficiency higher than 96%
