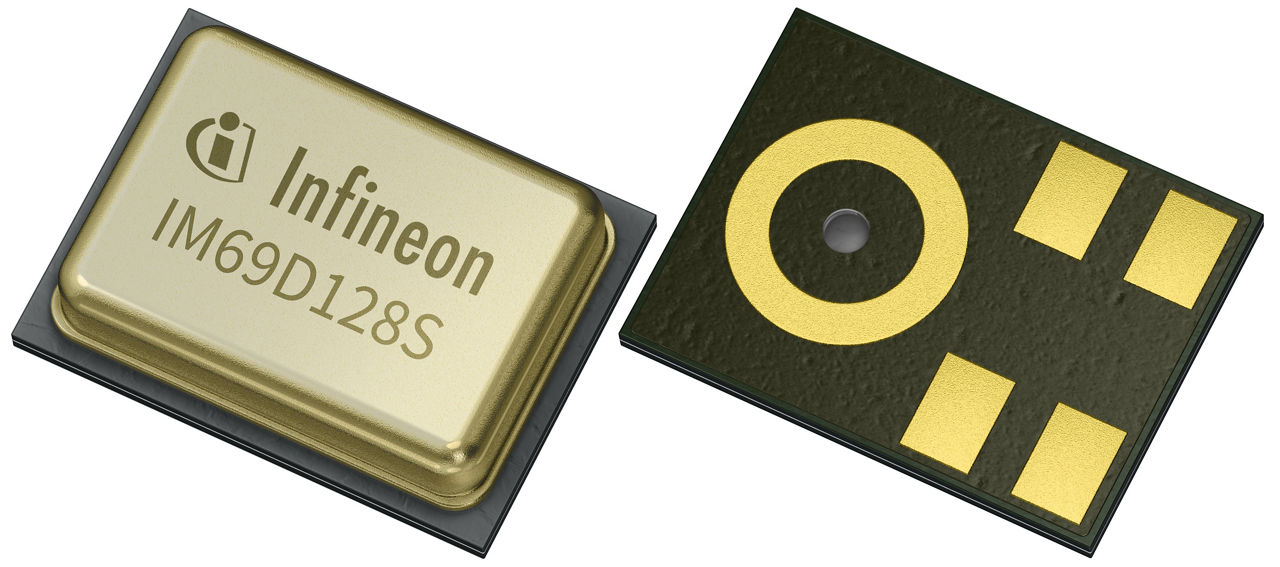

IM69D128S

Ultra-low power digital XENSIV™ MEMS microphone
Data Sheet
package
board

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IM69D128S
IM69D128S
Data Sheet

Product details

  • AEC-Q103-003 qualified
    on demand
  • AOP
    128 dBSPL
  • Current Consumption
    520 µA
  • Green
    RoHS compliant, Halogen free
  • Interfaces
    Digital PDM
  • Package dimensions
    3.50 x 2.65 x 1.00 mm³
  • Sensitivity
    -37 dBFS
  • SNR
    69 dB(A)
  • Supply Voltage
    1.62 - 3.60 V
Recommended
OPN
IM69D128SV01XTMA1
Product Status active and preferred
Infineon Package
PG-TLGA-5-2
Package Name N/A
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
PG-TLGA-5-2
Package Name -
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The IM69D128S is an ultra-low power digital XENSIV™ MEMS microphone, with current consumption as low as 520 μA. Enabled by revolutionary digital microphone ASIC, IM69D128S masters the art of switching between different power & performance profiles without any audible artifacts. The Sealed Dual Membrane MEMS technology provides high IP57 ingress protection at a microphone level.

Features

  • Very low self-noise / high SNR of 69dB(A)
  • Ultra-low current consumption: 520 μA  in high performance profile; 420 μA in power saving profile; 180 μA in low power mode
  • Sealed Dual Membrane (SDM) technology with IP57 ingress protection at microphone level
  • Very high dynamic range and acoustic overload point (AOP) of 128dBSPL
  • Very tight part-to-part phase and sensitivity matching (± 1dB)
  • Flat frequency response with an LFRO (low frequency roll-off) of 30Hz
  • Small package size of 3.5*2.65*0.98 mm

Benefits

  • Substantial battery saving without compromising on acoustic performance
  • Crystal clear audio signals even for highest sound pressure levels
  • Enablement of advanced audio features (ANC, transparent hearing, audio zoom, beamforming)
  • PCB area savings for space-critical applications
