Active
RoHS Compliant

CYW20706

Data Sheet
package
board

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

CYW20706
CYW20706
Data Sheet

Product details

  • Bluetooth Classic
    Yes
  • Bluetooth EDR 2MBPS RX SENSITIVITY
    -95.5 dBm
  • Bluetooth LE RX SENSITIVITY
    -96.5 dBm
  • Bluetooth LE TX POWER
    9 dBm
  • Bluetooth LE
    Yes
  • Bluetooth Specification
    5.4
  • CPU Frequency
    48 MHz
  • CPU
    Arm® Cortex®- M3
  • Family
    AIROC™ Bluetooth LE & Bluetooth
  • GPIOs
    24
  • Launch Date
    2025
  • Longevity - 15 years
    Yes
  • Longevity - Extended
    No
  • Operating Temperature
    -30 °C to 85 °C
  • Operating Voltage
    2.25 V to 2.94 V, 1.62 V to 3.6 V
  • Partner Module
    Y
  • Planned to be available until at least
    31-12-2030
  • RAM
    352 kByte
  • ROM
    848 kByte
  • Software Support
    ModusToolbox™
Recommended
OPN
CYW20706UA2KFFB4G CYW20706UA2KFFB4GT
Product Status active active
Infineon Package
PG-VF2BGA-49
PG-VF2BGA-49
Package Name FCBGA-49 (002-13601) FCBGA-49 (002-13601)
Packing Size 4900 2500
Packing Type TRAY TAPE & REEL
Moisture Level 3 3
Moisture Packing DRY DRY
Lead-free No No
Halogen Free Yes Yes
RoHS Compliant Yes Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
PG-VF2BGA-49
Package Name FCBGA-49 (002-13601)
Packing Size 4900
Packing Type TRAY
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant

Product Status
Active
Infineon Package
PG-VF2BGA-49
Package Name FCBGA-49 (002-13601)
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
The AIROC™ CYW20706 Bluetooth® & Bluetooth® LE SoC is a Bluetooth® 5.4 core compliant device for IoT applications. Manufactured using the industry's advanced 40 nm CMOS low-power process, the CYW20706 employs high levels of integration to minimize external components, reducing the device footprint and the costs associated with implementing Bluetooth® solutions.

Features

  • Arm® Cortex®-M3 32-bit RISC processor
  • Embedded ICE-RT debug
  • SWD interface units
  • 352-KB on-chip RAM
  • Bluetooth® core specification 5.2
  • Integrated low dropout regulators (LDO)
  • LE data rate up to 2 Mbps
  • Up to 24 GPIOs
  • I²C, I²S, UART, and PCM interfaces

Benefits

  • Support for BR, EDR, and Bluetooth® LE
  • Support for EEPROM and serial flash

Diagrams

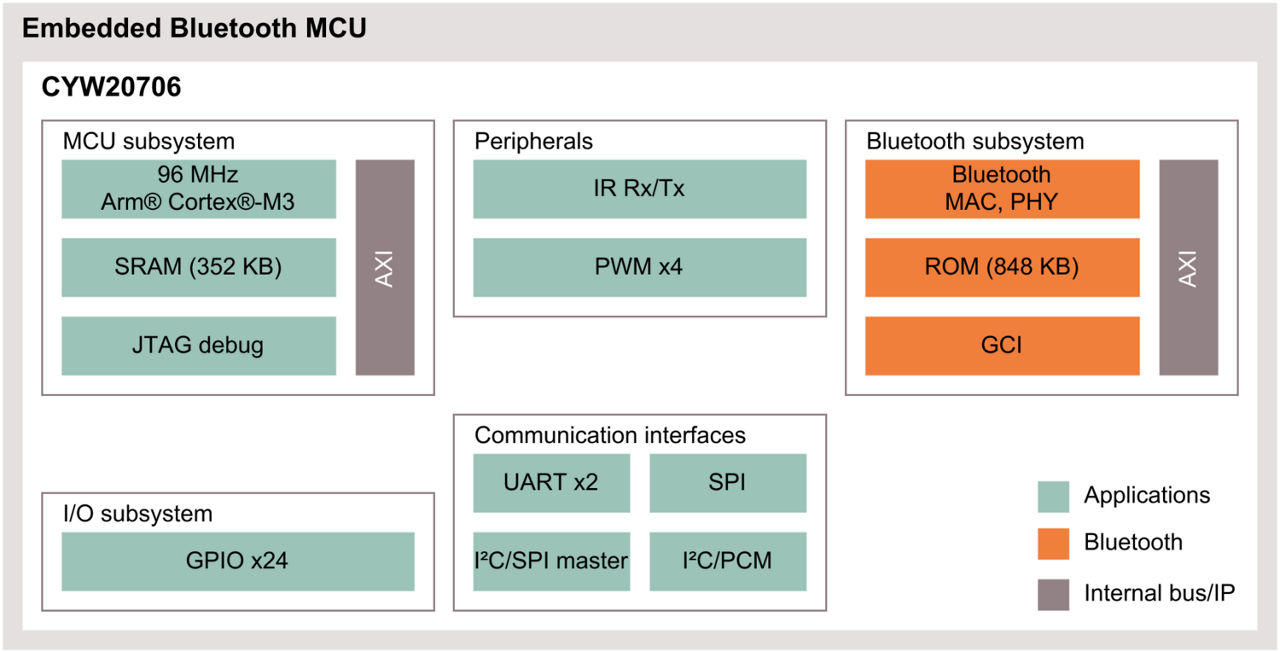

CYW20706 Block Diagram
CYW20706 Block Diagram
CYW20706 Block Diagram CYW20706 Block Diagram CYW20706 Block Diagram
×
