REF_WLCAUTO_TX15W_C1

Qi v1.3 EPP free position transmitter
User Manual

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

REF_WLCAUTO_TX15W_C1
REF_WLCAUTO_TX15W_C1
User Manual

Product details

  • Description

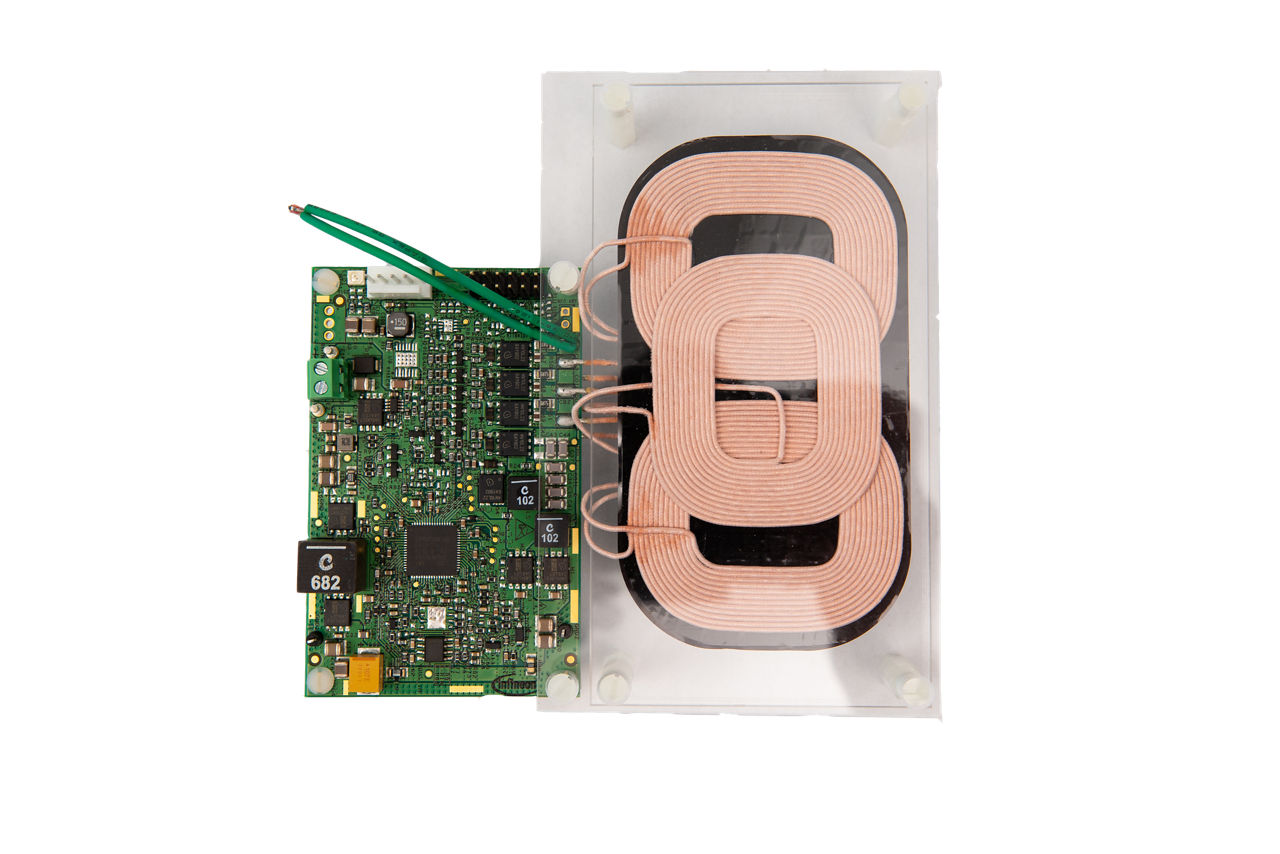

    REF_WLCAUTO_TX15W_C1 is a highly integrated Qi v1.3 EPP transmitter design. This reference board operates with an automotive battery input voltage between 9 V-18 V, supporting reverse polarity protection and auto transients. On-chip LIN or serial interfaces can be used to communicate with the host system for additional functionality. Additional features of AUTOSAR, CAN and NFC can be supported with an external MCU such as TRAVEO™ II or PSoC™.
  • Features
    Supports BPP, PPDE and custom protocol, Output power: 15 W Qi EPP free position , Integrated buck-boost controller, Integrated gate drivers, Slew rate and dithering controls, UVLO, OVP, OCP and OTP protections, LIN and host interface, In-built LIN interface, External LIN transceiver, Interface to external MCU over I2C, 68 QFN (10x10 mm) automotive grade
  • Input Voltage
    4.5 V to 24 V
  • Target Application
    In-cabin wireless charging
OPN
REFWLCAUTOTX15WC1TOBO1
Product Status on request
Infineon Package --
Package Name N/A
Packing Size N/A
Packing Type TRAY
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status on request
Infineon Package --
Package Name -
Packing Size 0
Packing Type TRAY
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
REF_WLCAUTO_TX15W_C1 is a highly integrated Qi v1.3 EPP transmitter design. This reference board operates with an automotive battery input voltage between 9 V-18 V, supporting reverse polarity protection and auto transients. On-chip LIN or serial interfaces can be used to communicate with the host system for additional functionality. Additional features of AUTOSAR, CAN and NFC can be supported with an external MCU such as TRAVEO™ II or PSOC™ .

Features

  • Supports BPP, PPDE and custom protocol
  • Input voltage 4.5–24 V (40 V tolerant)
  • Output power: 15 W Qi EPP free position
  • Integrated buck-boost controller
  • Integrated gate drivers
  • Slew rate and dithering controls
  • UVLO, OVP, OCP and OTP protections
  • LIN and host interface
  • In-built LIN interface
  • External LIN transceiver
  • Interface to external MCU over I2C
  • 68 QFN (10x10 mm) automotive grade

Benefits

  • Scalable solution for in-cabin charging
  • Qi stack with library support
  • Fixed frequency operation for low EMI
  • Configurable gate drivers for EMC
  • Configurable FOD and protections
  • ModusToolbox™ code examples

Applications
