Please note that this is an end of life product. See newer alternative product version Please note that this is an end of life product. See newer alternative product version
END OF LIFE
discontinued
RoHS Compliant

KIT_DPS310_2GO

END OF LIFE
DPS310 Kit2Go
User Manual

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

KIT_DPS310_2GO
KIT_DPS310_2GO
User Manual

Product details

  • Product Category
    Pressure sensors for IoT
  • Product Name
    DPS310
OPN
KITDPS3102GOTOBO1
Product Status discontinued
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status discontinued
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

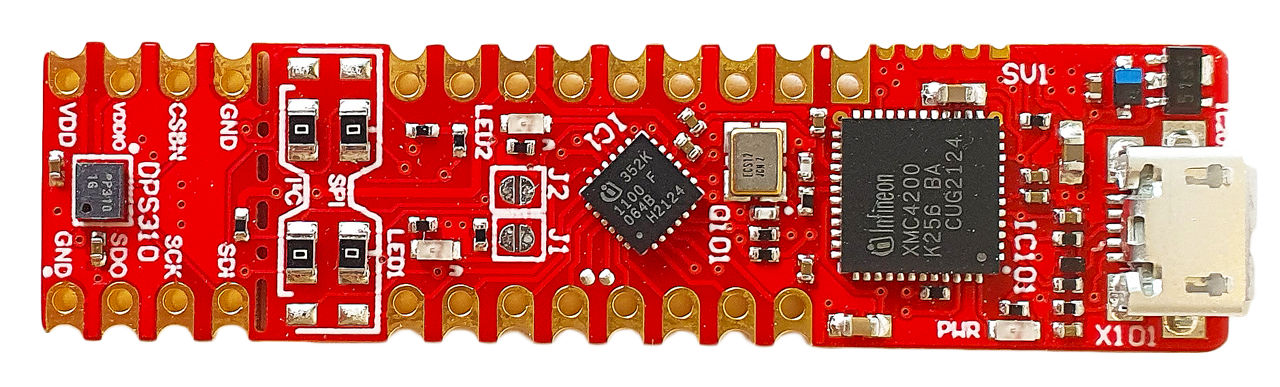

The DPS310 Kit2Go from Infineon is a versatile solution for barometric pressure sensing in IoT and embedded systems. It features a built-in XMC1100 microcontroller unit and an XMC4200 Debugger, providing convenience and versatility. Fully compatible with the Arduino IDE, it enables easy integration into existing projects or new ones. Example codes are available on Infineon's Github repository for easy customization.

Features

  • Supply voltage 5V USB
  • Micro USB Type AB Connector
  • 16-pin Shield2GO Interface
  • Two User LEDs and one Power LED
  • Integrated MCU and Debugger Unit
  • Operation range:
  • Pressure: 300–1200 hPa
  • Temperature: -40–85°C
  • Precision: ± 0.002 hPa (or ±0.02 m)
  • Rel. accuracy: ± 0.06 hPa (or ±0.5 m)
  • Pressure temperature sensitivity of 0.5Pa/K
  • Temperature accuracy  ±0.5C°
  • Interface: I2C and SPI (both with optional interrupt)

Benefits

  • High precision measurements with low power consumption
  • Arduino IDE compatible – Check out our Infineon Github Repository
  • Easy integration into IoT and embedded systems projects
  • Super small and light design

Applications
