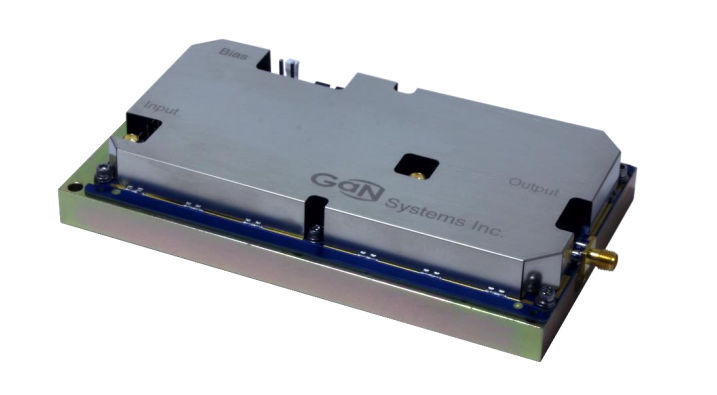

GSWP100W-EVBPA

Evaluation board designed to support and expedite the innovation of wireless power transfer systems
User Manual

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

GSWP100W-EVBPA
GSWP100W-EVBPA
User Manual

Product details

  • Input Type
    DC
  • Input Voltage max
    33 V
  • Power max
    100 W
  • Switching Frequency max
    6780 kHz
OPN
GSWP100WEVBPATOBO2
Product Status not for new design
Infineon Package --
Package Name N/A
Packing Size N/A
Packing Type N/A
Moisture Level N/A
Moisture Packing N/A
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:

Product Status not for new design
Infineon Package --
Package Name -
Packing Size 0
Packing Type
Moisture Level -
Moisture Packing
Lead Free
Halogen Free
RoHS Compliant
The GSWP100W-EVBPA uses CoolGaN™ power transistors GS61008P in a 6.78 MHz class EF2 power amplifier. The GaN switches are used with the integrated high-speed gate driver in a push-pull configuration. The outputs are capable of providing switching transition speeds in the nano-seconds range for hard-switching applications.

Features

  • Multiple configurations
  • Push-pull with EMI filter
  • Single-end mode with/without EMI filter

Benefits

  • Overtemperature protection
  • High switching transition speed
  • Fast charging
