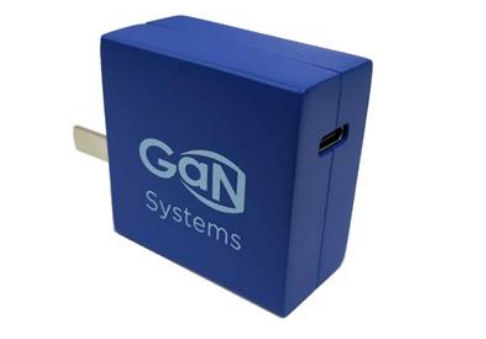

GS-EVM-CHG-65WQR-GS1

Low-cost 65 W charger reference design with small form factor and high reliability
User Manual

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

GS-EVM-CHG-65WQR-GS1
GS-EVM-CHG-65WQR-GS1
User Manual

Product details

  • Input Type
    AC
  • Input Voltage
    90 V to 264 V
  • Power max
    65 W
OPN
Product Status not for new design
Infineon Package --
Package Name N/A
Packing Size N/A
Packing Type N/A
Moisture Level N/A
Moisture Packing N/A
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status not for new design
Infineon Package --
Package Name -
Packing Size 0
Packing Type
Moisture Level -
Moisture Packing
Lead Free
Halogen Free
RoHS Compliant
With a high power density of 18.5 W/in³, this charger design meets the performance and safety requirements required by the industry. Input: 90 - 265 V, ~50/60 Hz, 1.7 A. Output: USB-C 5 V 3 A, 9 V 3 A / 12 V 3 A / 15 V 3 A / 20 V 3.25 A 65 W max. EMI: CISPR22 Conduction and Radiation Class B.

Features

  • Passes safety and EMI test
  • Supports PD3.0, PPS, QC, QC4.0+, BC1.2
  • Comprehensive protection: OVP, OCP, SCP and open loop

Benefits

  • High power density
  • High efficiency
  • High level performance of GaN transistor

Bill of Material
