SLE 66R01PN
Active and preferred
RoHS Compliant
Lead-free

SLE 66R01PN

Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

SLE 66R01PN
SLE 66R01PN
Data Sheet

Product details

  • Ambient Temperature range
    -25 °C to 75 °C
  • Applications
    Consumer Engagement, Smart cards & marketing, Accessory identification and configuration, Electronic Shelf Labels (ESL), Data storage and tracing
  • Certifications
    NFC Forum Type 2 Tag
  • Counter
    anti-tearing support, 16-bit counter
  • Data Rate
    106kbit/s to card, 106kbit/s to reader
  • Delivery Forms

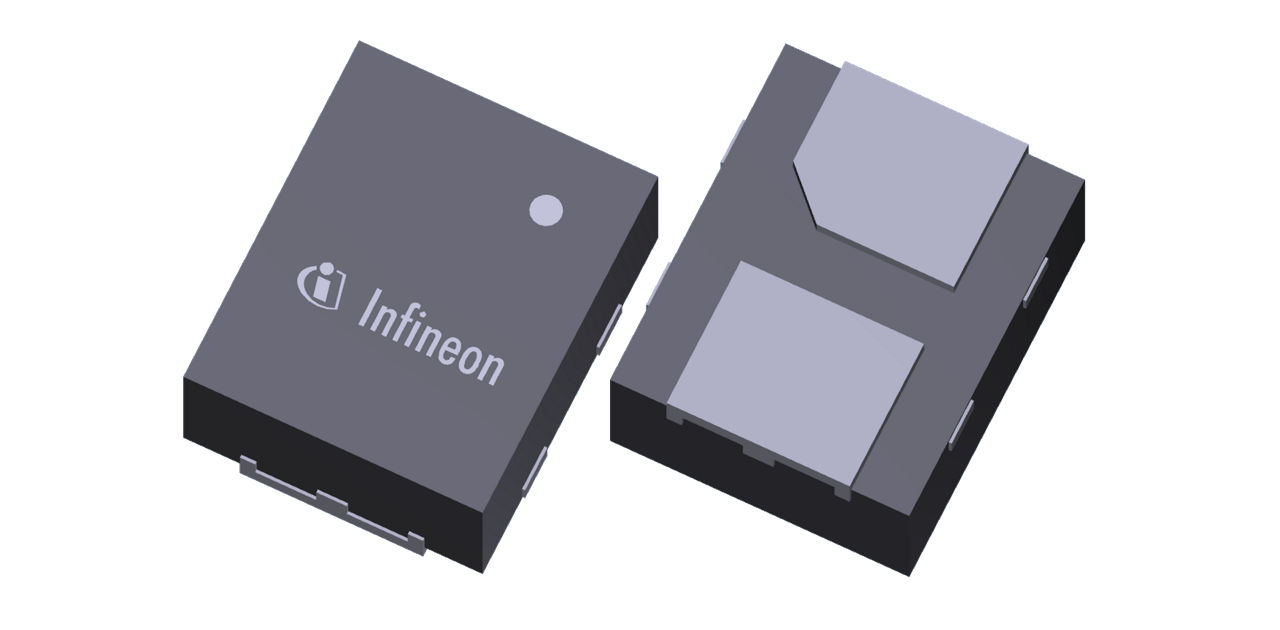

    TSNP Package, sawn wafer, NiAu-bump
  • Distance (read/write)
    typically up to 10cm and above
  • EEPROM (user)
    128 Byte
  • EEPROM (admin)
    24 Byte
  • Endurance
    100,000
  • Interfaces
    ISO/IEC 14443-3 Type A, NFC Forum Type 2 Tag operation
  • Leading Technologies
    NFC Ready
  • Memory
    152 Bytes of memory for NDEF data storage, Block-oriented memory structure (38 blocks of 4 bytes each)
  • Product Description
    my-d™ move NFC, NFC Forum Type 2 Tag certified, NFC pre-initialized
  • Retention Time min
    10 year
  • Security Features
    individual page locking, 32-bit password protection for read and/or write access, unique serial number, password retry counter, block locking
  • Use Cases
    consumer goods information, NFC device pairing, smart posters
Recommended
OPN
SLE66R01PNNBX1SA3
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type WAFER SAWN
Moisture Level NA
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type WAFER SAWN
Moisture Level NA
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
my-d™ move NFC offers cost-effective authentication and data integrity based on 32-bit password protection and a 16-bit cyclic redundancy check, making it ideal for mass-market consumer goods, data storage, and tracing applications. The NFC Type 2 Tag is based on open industry standards which gives customers freedom from proprietary architecture, allowing for more flexible supply chains, seamless interoperability, and lower switching costs.

Features

  • NFC interface with ISO/IEC 14443 Type A
  • 7-byte Unique ID
  • NFC Forum Type 2 Tag certified
  • 152 bytes of memory
  • Memory protected by 32-bit password
  • Configurable retry counter
  • NFC initialization at delivery
  • Ready for use
  • 16-bit customizable value counter
  • On-chip capacitance of 17 pF

Benefits

  • Cost-effective authentication
  • Based on open industry standards
  • Seamless interoperability
  • Ready-to-use NFC Type 2 Tag
  • Long-term durability
  • Simplified design-in
  • Enables enhanced user experiences
  • Reliable performance
