IKY75N120CH7

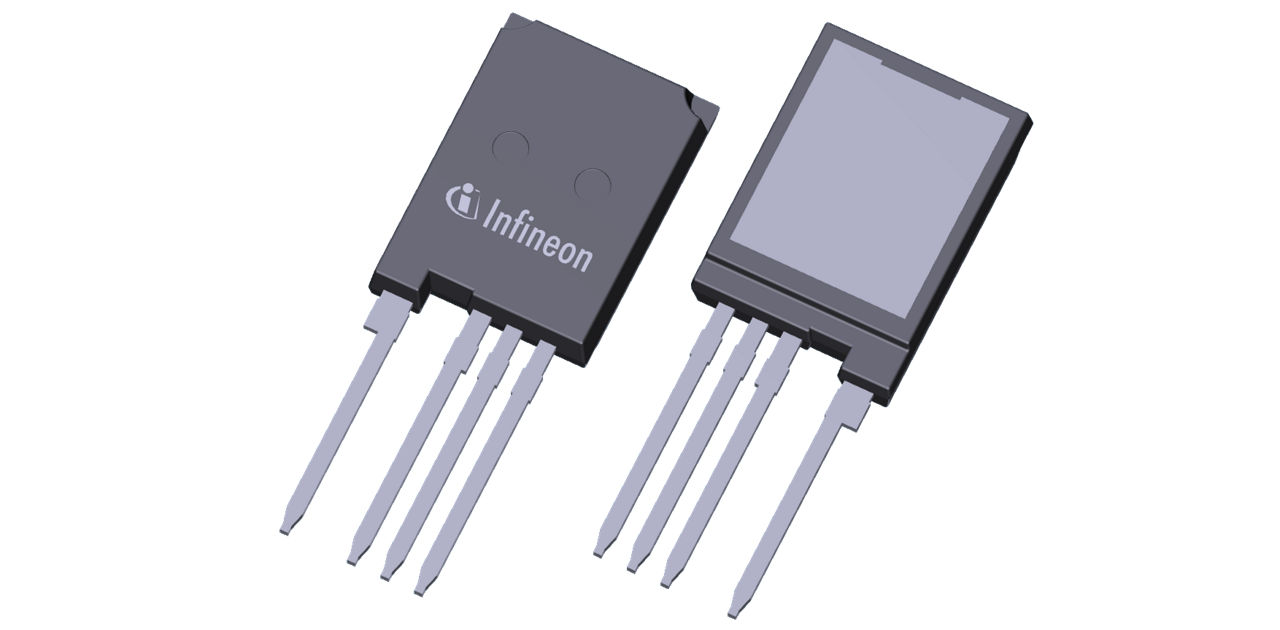

1200 V, 75 A IGBT with anti-parallel diode in TO247PLUS 4pin package
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IKY75N120CH7
IKY75N120CH7
ea.
Data Sheet

Product details

  • Eoff (Hard Switching)
    4.15 mJ
  • Eon
    3.1 mJ
  • IC (@ 100°) max
    75 A
  • IC (@ 25°) max
    83 A
  • ICpuls max
    300 A
  • IF max
    78 A
  • IFpuls max
    300 A
  • Irrm
    130 A
  • Package
    TO247-4-PLUS
  • Ptot (@ TA=25°C) max
    549 W
  • QGate
    550 nC
  • Qrr
    7290 nC
  • RGint
    0 Ω
  • RG
    5.3 Ω
  • Switching Frequency
    16 kHz to 100 kHz
  • td(off)
    446 ns
  • td(on)
    40 ns
  • Technology
    TRENCHSTOP™ IGBT7
  • tf
    111 ns
  • tr
    18 ns
  • VCE(sat)
    2 V
  • VCE max
    1200 V
  • VF
    2.5 V
  • VGE(th)
    5.5 V
Recommended
OPN
IKY75N120CH7XKSA1
Product Status active and preferred
Infineon Package
PG-TO247-4
Package Name N/A
Packing Size 240
Packing Type TUBE
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-TO247-4
Package Name -
Packing Size 240
Packing Type TUBE
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
Hard-switching 1200 V, 75 A TRENCHSTOP™ IGBT7 H7 discrete in TO-247PLUS-4pin package technology has been developed to fulfill the demand in applications focusing on decarbonization such as solar photovoltaic, uninterruptible power supplies and battery chargers.

Features

  • Excellent VCEsat behav.
  • Fast switching behavior
  • Low EMI emissions
  • Optimized diode for target applica.
  • Low Qrr
  • Low gate resistor select. possible
  • Excellent switch.behavior (@>5 Ω)
  • Offering Tj(max) of 175 °C
