IAUCN04S7L038D

NEW
40 V, N-Ch, 3.84 mΩ max, Automotive MOSFET, Dual SSO8 (5x6), OptiMOS™7
Data Sheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IAUCN04S7L038D
IAUCN04S7L038D
Data Sheet

Product details

  • Country of Assembly
    Malaysia
  • Country of Diffusion
    Austria, Germany
  • Family
    Automotive MOSFET
  • ID (@25°C) max
    60 A
  • Launch year
    2026
  • Operating Temperature range
    -55 °C to 175 °C
  • Package
    PG-TDSON-8
  • Planned to be available until at least
    2038
  • Polarity
    N+N
  • QG (typ @10V) max
    20 nC
  • QG (typ @10V)
    15 nC
  • Qualification
    Automotive
  • RDS (on) (@10V) max
    3.84 mΩ
  • Technology
    OptiMOS™7
  • VDS max
    40 V
  • VGS(th) range
    1.2 V to 1.8 V
  • VGS(th)
    1.5 V
Recommended
OPN
IAUCN04S7L038DATMA1
Product Status active and preferred
Infineon Package
PG-TDSON-8
Package Name Dual SSO8
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
PG-TDSON-8
Package Name Dual SSO8
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

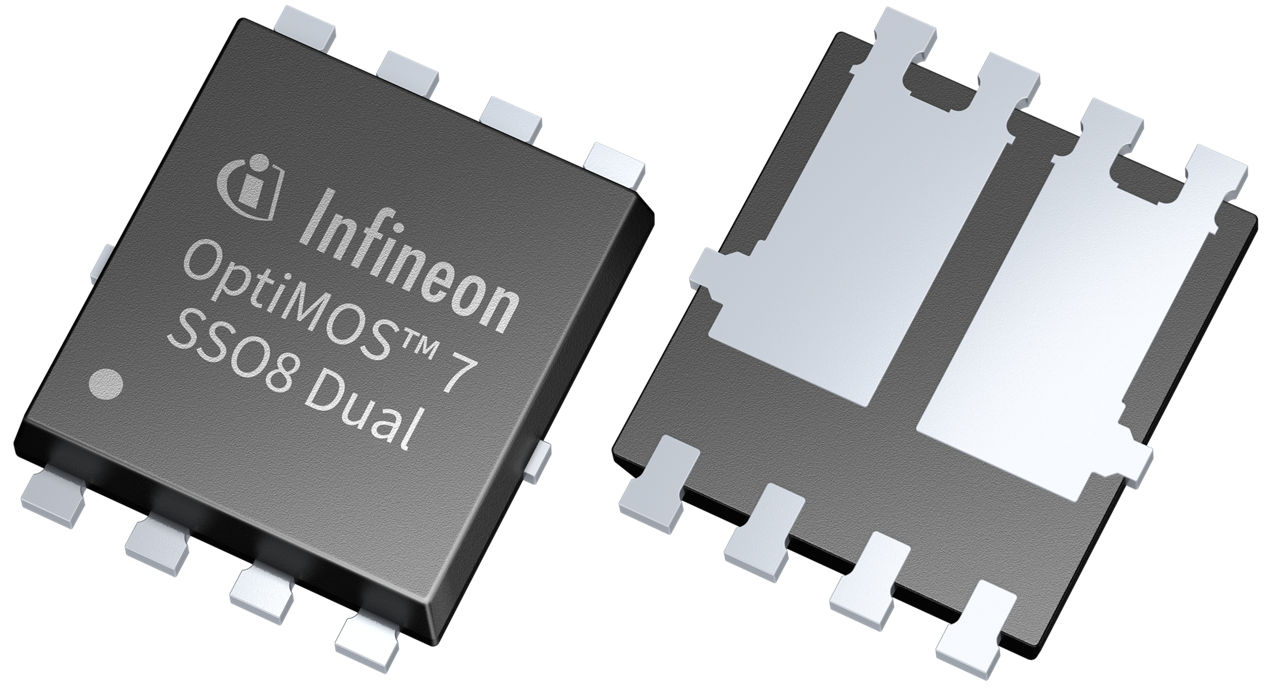

The new automotive OptiMOS™7 40 V dual SSO8 MOSFET is offered in our reliable SSO8 5x6mm2 SMD package. It features two independent N-channel MOSFETs integrated in one package for PCB area savings. It is designed specifically for high performance, high quality and the robustness needed for demanding and cost-efficient power automotive applications. The new portfolio provides a wide RDS range from 1.94 mΩ to 5.59 mΩ combined with an increased current rating of 60 A.

Features

  • 5x6 mm2 small footprint
  • 60 A high current capability
  • Leading-edge OptiMOS™7 40 V technology
  • RDS range: 1.94mΩ to 5.59 mΩ
  • Leadless package with Cu-clip for lowest package resistance & minimized stray inductance
  • High avalanche capability

Benefits

  • High thermal capacity leadframe package
  • Reduced conduction losses
  • Optimized switching behavior
  • Reduced form factor compared to traditional leaded packages
  • Industry standard package (JEDEC standard PG-TDSON-8)
