Watch Counter (PDL_WC)

Efficient Down Counting with Watch Counter & Flexible Clock Options

About

A 6-Bit Down Counter with Interrupt Option and Clock Precision Control

The Watch Counter is a 6-bit down counter that optionally generates an interrupt on underflow. The period of the counter is controlled with the reload value and the clock from the prescaler, which offers four choices (WCCK0 to WCCK3) to the Watch Counter. The prescaler is set up in firmware with an API function to select the clock source and divider for each of the WCCKn clocks.

Watch Counter (PDL_WC) features

  • 6-bit down counter
  • Prescaler generates a wide range of WC input clock frequencies
  • Supports low-power wakeup

A 6-Bit Down Counter with Interrupt Option and Clock Precision Control

The Watch Counter is a 6-bit down counter that optionally generates an interrupt on underflow. The period of the counter is controlled with the reload value and the clock from the prescaler, which offers four choices (WCCK0 to WCCK3) to the Watch Counter. The prescaler is set up in firmware with an API function to select the clock source and divider for each of the WCCKn clocks.

Watch Counter (PDL_WC) features

  • 6-bit down counter
  • Prescaler generates a wide range of WC input clock frequencies
  • Supports low-power wakeup
Documents

Design resources

Image gallery

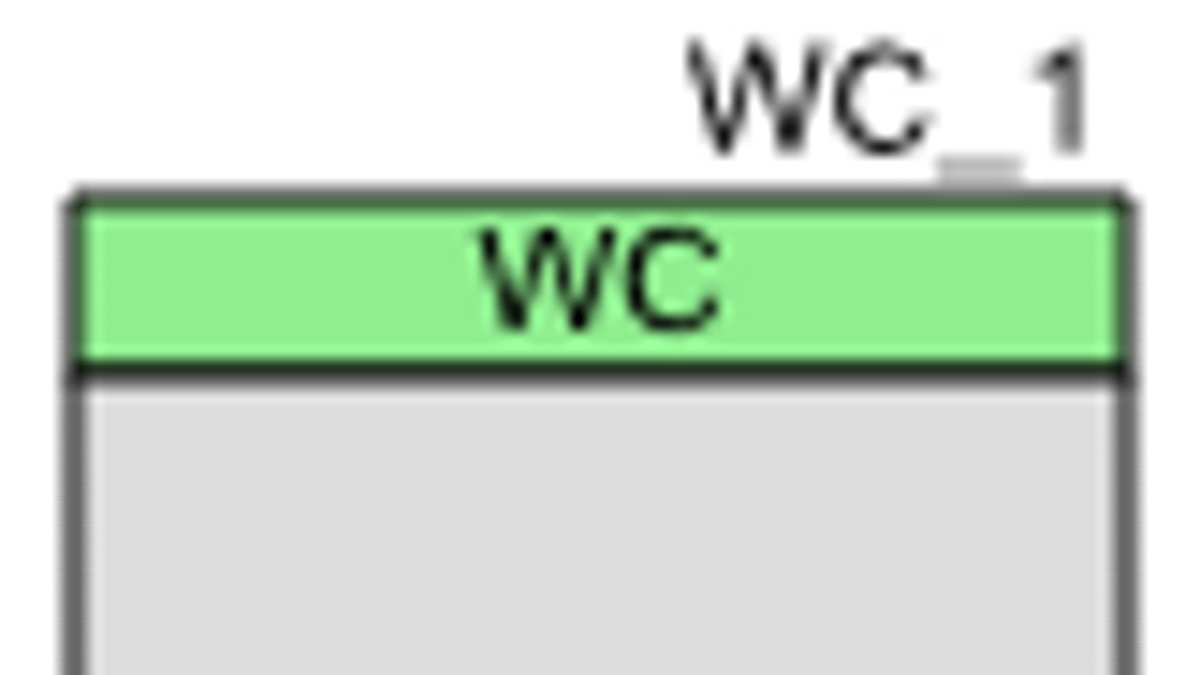

Watch_Counter_Symbol_Diagram
Watch_Counter_Symbol_Diagram Watch_Counter_Symbol_Diagram Watch_Counter_Symbol_Diagram

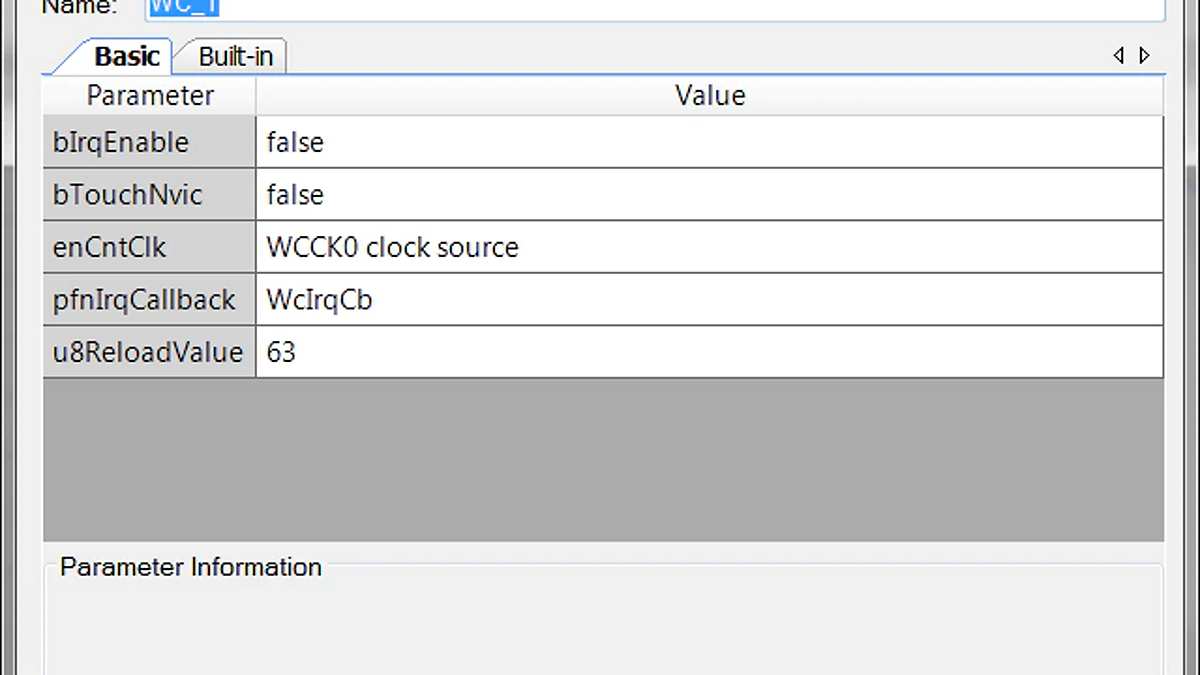

WC_Component_Parameter_Editor WC_Component_Parameter_Editor WC_Component_Parameter_Editor
×
