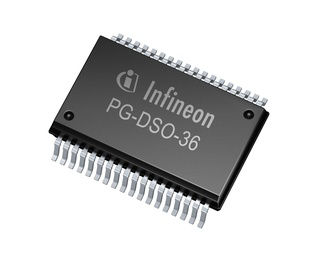

TLE7230R

TLE7230R is an Octal Low-Side Switch in Smart Power Technology (SPT) with a Serial Peripheral Interface (SPI) and eight open drain DMOS output stages
Data Sheet
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE7230R
TLE7230R
ea.
Data Sheet

Product details

  • Channels
    8
  • Configurable Channels
    N/A
  • Cranking mode
    No
  • Daisy-Chain Capability
    Yes
  • Family
    SPIDER
  • ID (multiple)
    500.0 mA
  • ID(lim) min
    1 A
  • Limp Home Feature
    No
  • Mounting
    SMT
  • Open Load Detection
    Off
  • Open Load Disable Function
    No
  • Operating Temperature
    -40 °C to 150 °C
  • Over Current Protection
    Selectable
  • Overload shutdown
    Yes
  • Planned to be available until at least
    2037
  • PWM Inputs
    4
  • Quiescent Current max
    10 µA
  • RDS (on) (@ Tj = 25°C)
    0.8 mΩ
  • Short GND Detection
    Yes
  • SPI
    16 Bit
  • Standby Mode
    Yes
  • Undervoltage Shutdown
    Yes
  • VDD
    4.5-5.5 V
  • VDS(CL)
    48 V to 60 V
Recommended
OPN
TLE7230RAUMA1
Product Status active and preferred
Infineon Package PG-DSO-36
Package Name N/A
Packing Size 800
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package PG-DSO-36
Package Name -
Packing Size 800
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
It is protected by embedded protection functions and designed for automotive and industrial applications. The output stages are controlled via an SPI Interface. Additionally, four channels can be controlled in parallel for PWM applications. These features make the TLE 7230 R particularly suitable for engine management and body systems.

Features

  • Protection:Overload, short circuit
  • Low Quiescent Current< 10μA
  • 16 bit SPI (for Daisychain)
  • Direct Parallel Control of Four Channels
  • PWM input (demux)
  • Parallel Input High-Low Active Program
  • General Fault Flag
  • 5V/3.3V Micro Ctrl Ports
  • Electrostatic Discharge (ESD) Protection
  • ReverseCurrentTolerance Without Latch-Up
  • Green Product (RoHS compliant)

Benefits

  • Less Microcontr. I/Os needed
  • Reduced PCB space
  • Improved reliability
  • Less external components
  • Cost savings

Applications
