IR2214SS

1200 V half-bridge gate driver IC with integrated DESAT, Soft-Off, UVLO, TLTO, deadtime, and fault reporting
Data Sheet

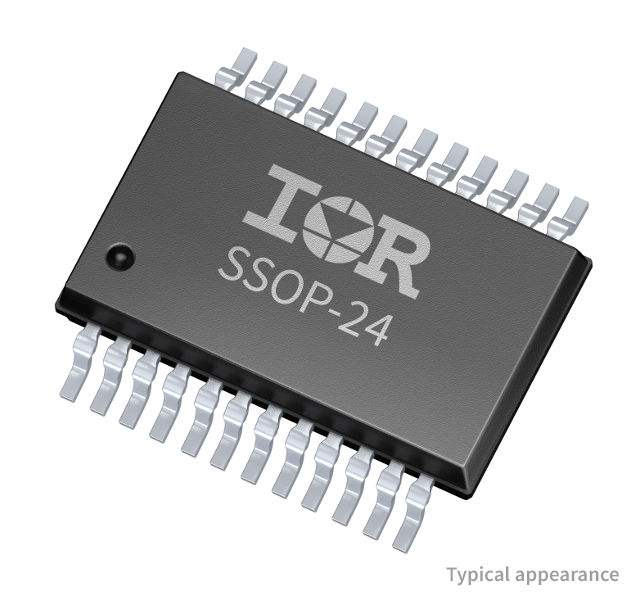

package
board
Multiple OPNs available
ea.

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IR2214SS
IR2214SS
ea.
Data Sheet

Product details

  • Channels
    2
  • Configuration
    Half Bridge
  • Input Vcc
    11.5 V to 20 V
  • Isolation Type
    Functional levelshift
  • Output Current (Sink)
    3 A
  • Output Current (Source)
    2 A
  • Qualification
    Industrial
  • Turn Off Propagation Delay
    440 ns
  • Turn On Propagation Delay
    440 ns
  • VBS UVLO (Off)
    9.3 V
  • VBS UVLO (On)
    10.2 V
  • VCC UVLO (Off)
    9.3 V
  • VCC UVLO (On)
    10.2 V
  • Voltage Class
    1200 V
Recommended
OPN
IR2214SSTRPBF IR2214SSPBF
Product Status active and preferred active and preferred
Infineon Package
SSOP24
SSOP24
Package Name N/A N/A
Packing Size 2000 2200
Packing Type TAPE & REEL TUBE
Moisture Level 3 3
Moisture Packing DRY DRY
Lead-free Yes Yes
Halogen Free No No
RoHS Compliant Yes Yes
Infineon stock last updated:
 ea. in stock ea. in stock

Product Status
Active
Infineon Package
SSOP24
Package Name -
Packing Size 2000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

Product Status
Active
Infineon Package
SSOP24
Package Name -
Packing Size 2200
Packing Type TUBE
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
EiceDRIVER™ 1200 V half-bridge gate driver IC with typical 2 A source and 3 A sink currents in SSOP-24 lead package for IGBT discretes and IGBT modules. It utilizes proprietary 1200 V HVIC and latch immune CMOS technologies which enable a rugged, monolithic construction with integrated protective features such as desaturation detection, soft over-current shutdown, under-voltage lockout protection, two-level turn-on output and fault reporting.

Features

  • Floating channel up to 1200 V
  • Integrated desat. detection circuit
  • Soft over-current shutdown
  • Two-stage turn on output
  • Under-voltage lockout protection
  • Cross-conduct. prevent. (dead-time)
  • Low quiescent current
  • Synchronization signal
  • Matched delay outputs
  • Separate pull-up/pull-down output

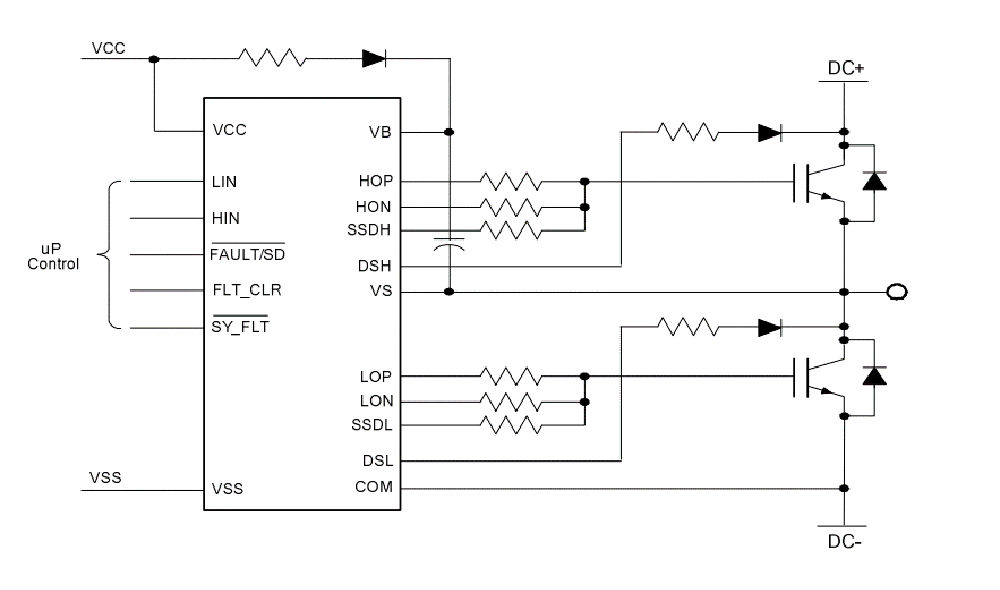

Diagrams

IR2214xx
IR2214xx
IR2214xx IR2214xx IR2214xx
×
