Active and preferred
RoHS Compliant
Lead-free

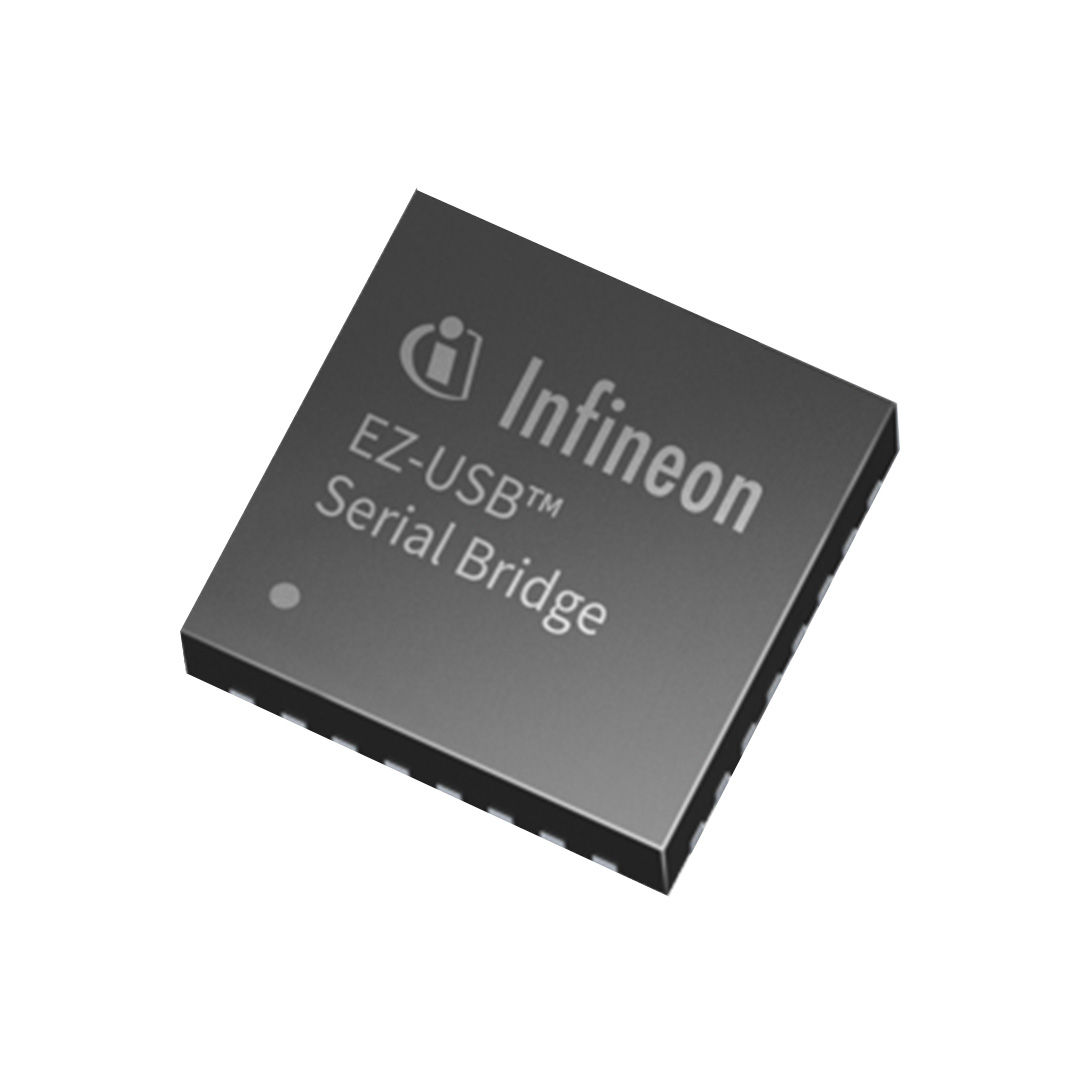

CY7C65211A-24LQXS

Automotive-grade USB serial single-channel (UART/I2C/SPI) bridge with CAPSENSE™, BCD and RS485 support in tray packing
Data Sheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

CY7C65211A-24LQXS
CY7C65211A-24LQXS
Data Sheet

Product details

  • Applications
    Automotive Infotainment system
  • Family
    EZ-USB™ Serial Bridge Controller
  • Operating Temperature range
    -40 °C to 105 °C
  • Operating Voltage range
    1.71 V to 5.5 V
  • Package Type
    24-pin QFN
  • Peak Reflow Temp
    260 °C
  • Product Category
    2.0 Peripheral Controllers
  • Product Description
    USB-Serial single-channel (UART/I2C/SPI) bridge with CAPSENSE™ and BCD
  • Temperature grade
    Automotive Grade-S
  • USB Speed
    12 MBit/s
  • USB Standard
    USB 2.0 FS
Recommended
OPN
CY7C65211A24LQXSXQLA1
Product Status active and preferred
Infineon Package
PG-VQFN-24
Package Name QFN-24 (001-13937)
Packing Size 4900
Packing Type TRAY
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
PG-VQFN-24
Package Name QFN-24 (001-13937)
Packing Size 4900
Packing Type TRAY
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
A full speed USB to UART/I2C/SPI controller compliant BC1.2, integrating flash memory, voltage regulator and oscillator. It supports bus-powered and self-powered modes and can enable efficient system power management with suspend and remote wake-up signals.

Features

  • USB 2.0-complaint, full-speed (12 Mbps)
  • Single-channel configurable SPI I2C UART
  • CAPSENSE™
  • Ten general-purpose I/O (GPIO) pins
  • 512 byte flash memory
  • Configuration utility (Windows)
  • Driver support for VCOM and DLL
  • Integrated 48-MHz clock oscillator
  • Bus- & self-powered configurations
  • Operating voltage: 1.71 to 5.5 V
  • Operating temperature: –40 °C to 105 °C
  • 24-pin QFN, tray

Applications
