Active and preferred
RoHS Compliant

BTN9960LV

The MOTIX™ BTN9960LV is an integrated high-current half-bridge with low path resistance for motor drive applications
Data Sheet

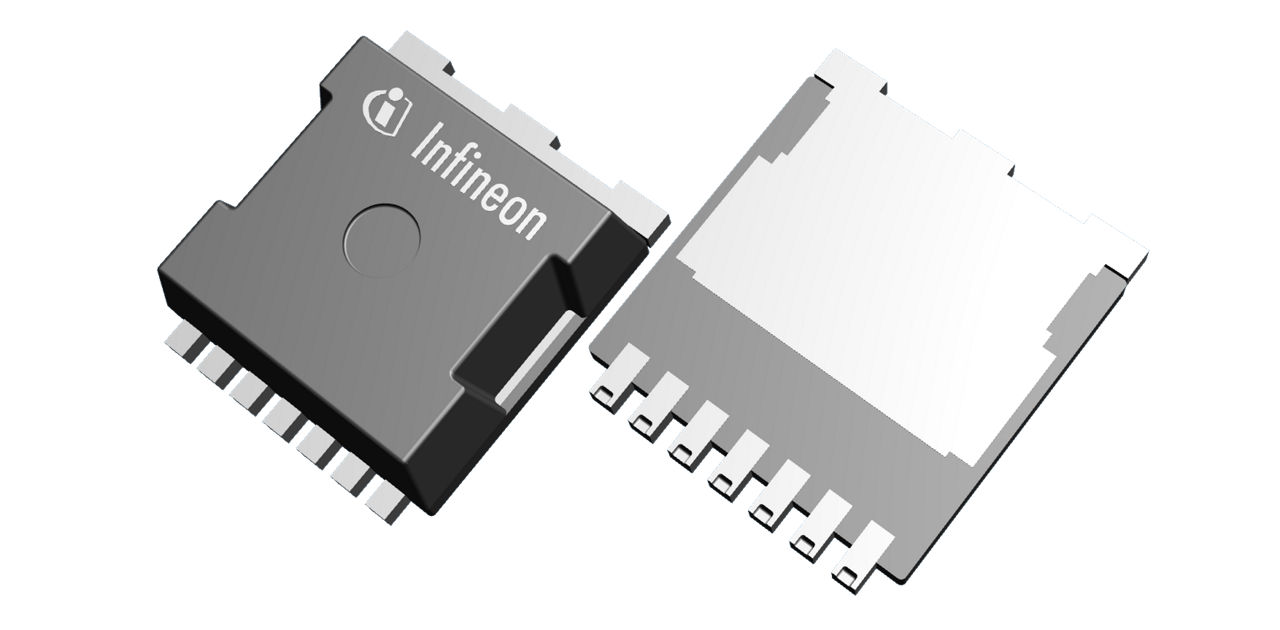

package
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

BTN9960LV
BTN9960LV
ea.
Data Sheet

Product details

  • Classification
    ISO26262-ready
  • Diagnostics
    Current Sense, Overtemperature-Protection, Overcurrent-Protection-failure flag
  • ID(lim)(multiple)
    min 35A , typ. 47.0 A , max 60.0 A
  • Inhibit
    Yes
  • Iq max
    3.3 µA
  • Mounting
    SMT
  • Normal Operating Voltage Range
    8 V - 18 V
  • Operating Voltage
    4.5 V to 40 V
  • Over current detection min
    35 A
  • Currently planned availability until at least
    2037
  • Protect
    Overcurrent-Protection, Undervoltage Protection, Overtemperature-Protection
  • RDS (on) (multiple)
    9.7
  • RDSON_H(typ)
    6.3 mΩ
  • RDSON_L(typ)
    3.4 mΩ
  • Supply Voltage absolute max ratings
    40 V
  • Technology
    MOTIX™ Bridge
  • Temperature
    - 40°C - 150°C
Recommended
OPN
BTN9960LVAUMA1
Product Status active and preferred
Infineon Package
PG-HSOF-7
Package Name N/A
Packing Size 2000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-HSOF-7
Package Name -
Packing Size 2000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The MOTIX™ BTN9960LV The device contains one p-channel high-side MOSFET and one n-channel low-side MOSFET with an integrated driver IC. Due to the p-channel high-side switch the need for a charge pump is eliminated thus minimizing EMI. . It offers easy microcontroller interfacing, logic level inputs, current sense diagnosis, protection against various faults, and a small HSOF-7-1 package.

Features

  • Supply voltage: 8-18V (up to 40V)
  • Typ. 9.7 mΩ path resistance
  • Low 3.3µA quiescent current
  • Protection: overcurrent, UV, OT
  • 35 A min overcurrent detection
  • 8 selectable slew rates
  • UV with recovery delay
  • AEC-Q100/Q006 Grade 1)

Benefits

  • Integrated PMOS, NMOS, and Driver IC
  • Higher system reliability
  • Integrated diagnosis & protection
  • Half- & full-bridge support
  • Otimizes PCB layout
  • No charge pump, low EMI
  • Easy thermal protection
