2ED2304S06F

650 V Half Bridge Gate Driver IC with Integrated Bootstrap Diode (BSD)
Data Sheet
package
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

2ED2304S06F
2ED2304S06F
ea.
Data Sheet

Product details

  • Channels
    2
  • Configuration
    Half Bridge
  • Input Vcc
    10 V to 17.5 V
  • Isolation Type
    Functional levelshift SOI (Silicon On Insulator)
  • Output Current (Source)
    0.36 A
  • Output Current (Sink)
    0.7 A
  • Qualification
    Industrial
  • Turn Off Propagation Delay
    300 ns
  • Turn On Propagation Delay
    310 ns
  • VBS UVLO (Off)
    8.3 V
  • VBS UVLO (On)
    9.1 V
  • VCC UVLO (On)
    9.1 V
  • VCC UVLO (Off)
    8.3 V
  • Voltage Class
    650 V
Recommended
OPN
2ED2304S06FXUMA1
Product Status active and preferred
Infineon Package
PG-DSO-8
Package Name N/A
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 2
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-DSO-8
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 2
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
EiceDRIVER™ 650 V SOI half-bridge gate driver IC with integrated Bootstrap Diode with 0.36 A source and 0.7 A sink currents in DSO-8 package. It provides excellent ruggedness and noise immunity. The Schmitt trigger logic inputs are compatible with standard CMOS or LSTTL logic. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high side configuration.

Features

  • Thin-film-SOI-technology
  • Operational to +650 V offset volt.
  • Integr. ultra-fast bootstrap diode
  • Output source current capa. +0.36 A
  • Output sink current capa. -0.7 A
  • Tolerant to neg. transient volt.
  • Gate drive supply: 10 V to 20 V
  • Independent under-voltage lockout
  • Short propagation delay
  • Schmitt trigger inputs
  • 3.3, 5 & 15 V input logic compatib.
  • DSO-8, RoHS compliant package

Applications

Diagrams

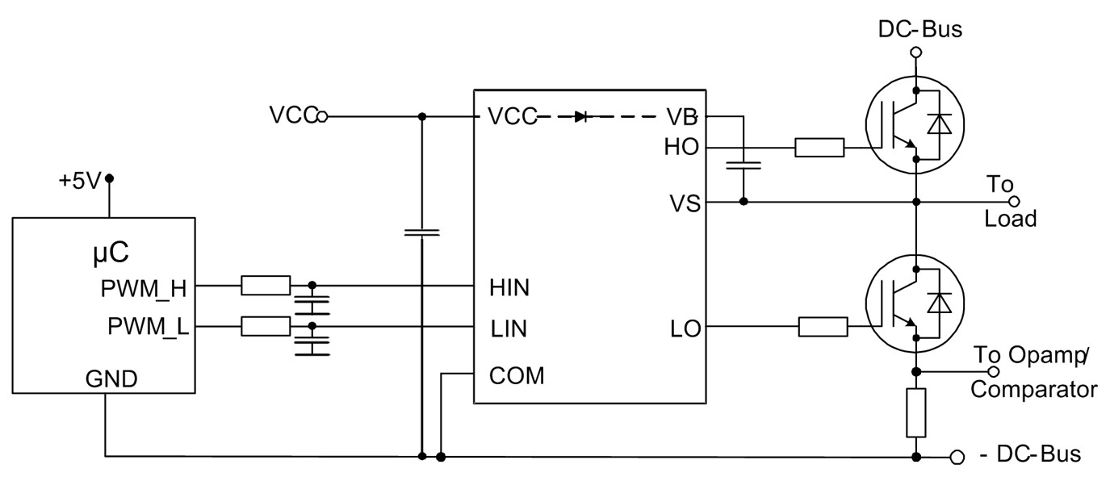

Circuit_diagram_2ED2304S06F
