KIT_XMC750WATT_MC_AK_V1

XMC 750 Watt Motor Control Application Kit
User Manual
software

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

KIT_XMC750WATT_MC_AK_V1
KIT_XMC750WATT_MC_AK_V1
User Manual

Product details

  • Bluetooth Standard
    N/A, N/A
  • Board Type
    Evaluation Kit, Evaluation Kit
  • CapSense
    No, No
  • Core
    ARM Cortex-M4, ARM Cortex-M0
  • External memory
    None, None
  • Family
    XMC1300 Industrial Microcontroller, XMC4400 Industrial Microcontroller
  • Features
    Active PFC, Hall & Encoder interface, Active PFC, Hall & Encoder interface
  • GPIOs/Shield Compatibility
    None, None
  • Product Name
    XMC 750 Watt Motor Control Application Kit
  • Programmer/Debugger
    Onboard XMC4200 Debug IC, Onboard XMC4200 Debug IC
  • Sensors
    None, None
  • Software Support
    ModusToolbox, ModusToolbox
  • WiFi Standard
    N/A, N/A
Recommended
OPN
KITXMC750WATTMCAKV1TOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant

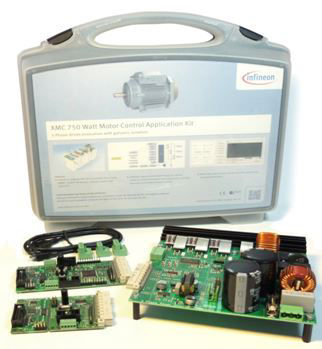

What can you move with 1 horse power? The XMC 750 Watt Motor Control Application Kit gives you the answer. The power board includes off-the-grid supply with input filter, active PFC and high switching frequency IGBTs from Infineon to turn your 3-Phase drive. Both CPU Cards (XMC1300 and XMC4400 Drive Card) provide a galvanic isolation for the debug interface to guarantee safe operation during software development.

Features

  • XMC750 Watt Motor Control Kit
  • Galvanic isolated XMC1300 Drive Card
  • Galvanic isolated XMC4400 Drive Card
  • Power board:
  • 110-230 V / 750 W
  • Input Filter and Active PFC
  • 3-Phase Inv. by Reverse Conduction IGBT
  • Supported control schemes
  • V/f open loop
  • Block or sinusoidal commutation
  • FOC w/ hall sensor/encoder or sensorless
