EVAL_6EDL7151_36V_1KW

Evaluation Board for MOTIX™ 6EDL7151 3-phase smart gate driver
Application Notes
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL_6EDL7151_36V_1KW
EVAL_6EDL7151_36V_1KW
ea.
Application Notes

Product details

  • Board Type
    Evaluation Board
  • Configuration
    Sensorless FOC
  • Dimensions
    3.3 inch x 4.8 inch
  • Frequency
    20 kHz to 20 kHz
  • Input Type
    DC
  • Interfaces
    USB
  • Output Current max
    75 A
  • Qualification
    Industrial
  • Sub Application
    Motor Control & Drives
  • Supply Voltage
    12 V, 12 V to 26 V
  • Target Application
    Other three-phase BLDC and PMSM motors, Pumps and fans, Robotics, RC toys, consumer drones and multicopters, Electric bicycles, Robotic lawn mowers, Battery powered power tools and gardening tools
  • Topology
    3-Phase Motor
Recommended
OPN
EVAL6EDL715136V1KWTOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

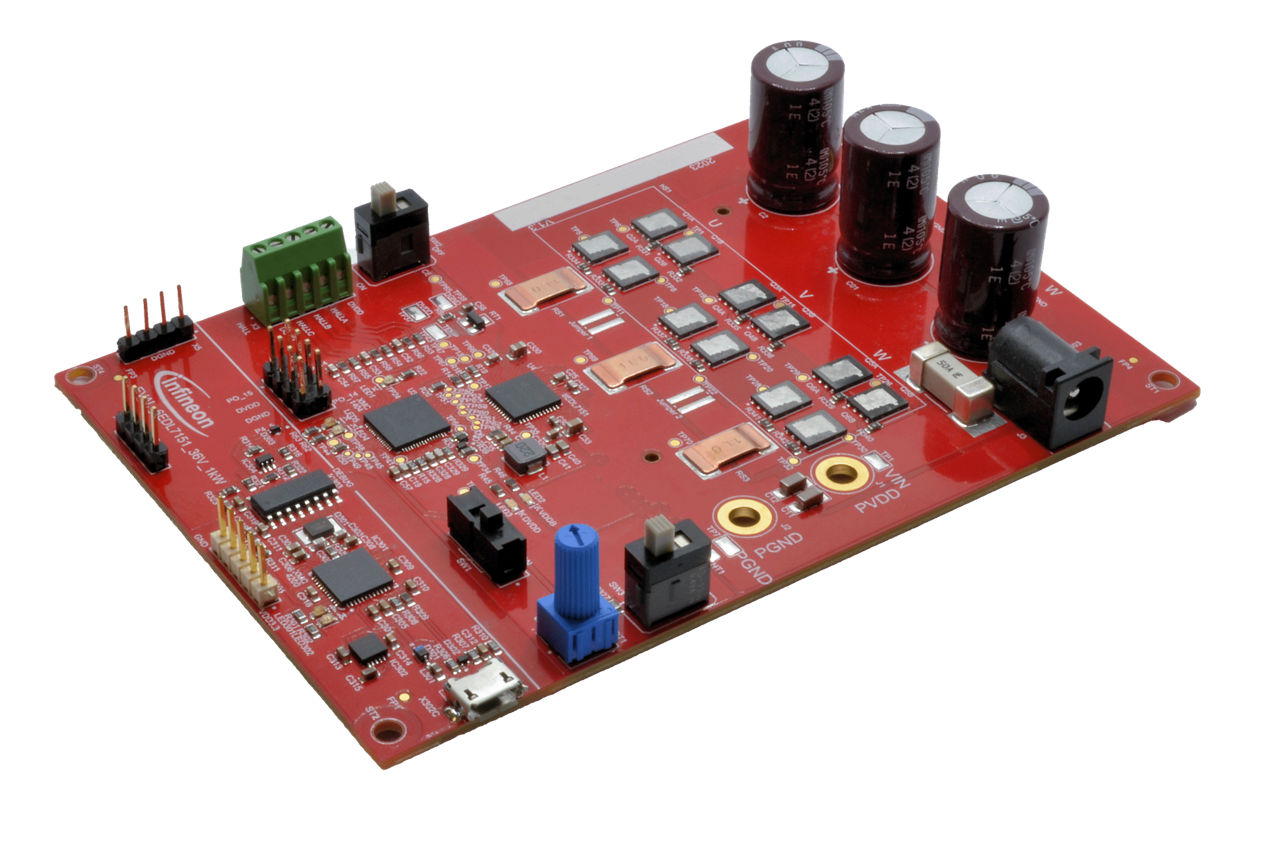

The EVAL_6EDL7151_36V_1kW is a comprehensive evaluation platform designed to evaluate the , a 3-phase smart gate driver integrated circuit (IC). The IC enables the development of high-performance battery-powered products that utilize brushless DC (BLDC) or permanent magnet synchronous (PMSM) motors. The is highly configurable, allowing it to drive a wide range of MOSFETs to achieve optimal system efficiency.

Features

  • 12 V to 36 V operating voltage range
  • Rated phase current up to 75 A
  • Off state diagnostics
  • On-board J-link debugger
  • Overcurrent & overvoltage protection
  • Potentiometer to control speed

Benefits

  • Reduced development time and effort
  • Reduced BOM count
  • Complete protection including Off-state diagnostics
  • Programmability through ModusToolbox™ Motor Suite GUI

Applications

Bill of Material

Documents

Documents

Design resources

Partner solutions

Developer community
