TLE8457CLE

The TLE8457CLE is a monolithic integrated LIN transceiver with low drop-out voltage regulator in the TSON-8 package.
Data Sheet
package
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE8457CLE
TLE8457CLE
ea.
Data Sheet

Product details

  • Additional Features
    5.0 V output VREG, EN, RESET
  • Bus Wake-Up Capability
    Yes
  • Family
    LIN Transceiver
  • Features
    Integrated voltage regulator, EN
  • Output Current
    70 mA
  • Planned to be available until at least
    2038
  • Qualification
    Automotive
  • Quiescent Current
    < 10 µA sleep mode
  • Standards
    LIN 1.2, 1.3, 2.x, 2.2A, SAEJ2602, ISO 17987-4
  • Supply Voltage
    5 V
  • Transmission Rate max
    20 kBit/s
  • Type
    LIN
  • Wake-up Inputs
    Bus wake-up
Recommended
OPN
TLE8457CLEXUMA1
Product Status active and preferred
Infineon Package
PG-TSON-8
Package Name N/A
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 2a
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-TSON-8
Package Name -
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 2a
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
TLE8457CLE supplies microcontrollers with stable 5 V (up to 70 mA). Protection with undervoltage reset. LIN 2.2A and SAE J2602 compliant. Ultra low standby current (20 μA). Infineon BiCMOS technology for ESD robustness and EMC. AEC qualified for automotive environment. Different variants available (output voltage, packages, features).

Benefits

  • 5 V low drop-out linear voltage regulator with 70 mA current capability
  • stable output voltage with small ceramic output capacitor ( 1 µF )
  • integrated initialization time-out feature
  • low current consumption in stand-by mode (40 μA) and sleep mode (16μA)
  • includes the TxD dominant time-out feature
  • excellent EMC performance (IBEE test report)
  • TSON-8 package
  • TLE8457CLE LIN-LDO demo board available

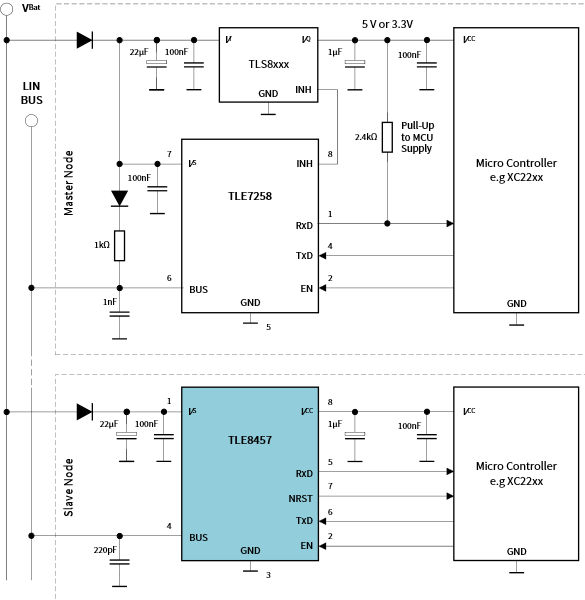

Diagrams

TLE8457CLE
TLE8457CLE
TLE8457CLE TLE8457CLE TLE8457CLE
×
