FF08MR12W1MA1_B11A

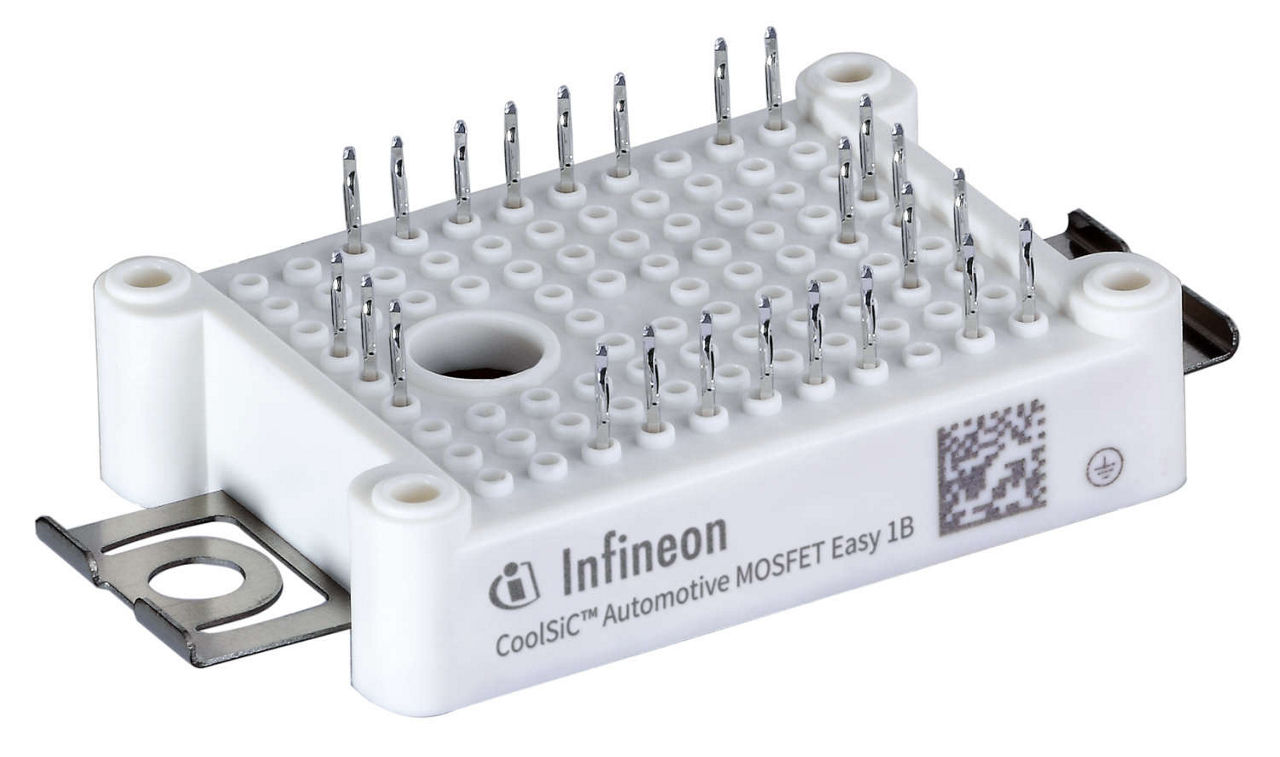

EasyPACK™ CoolSiC™ Automotive MOSFET 1200V Half Bridge Module
Data Sheet
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FF08MR12W1MA1_B11A
FF08MR12W1MA1_B11A
ea.
Data Sheet

Product details

  • Configuration
    Half-bridge
  • Dimensions (length)
    62.8 mm
  • Dimensions (width)
    33.8 mm
  • Features
    PressFIT
  • Housing
    Easy 1B
  • ID
    150 A
  • Launch year
    2020
  • Currently planned availability until at least
    2033
  • Qualification
    Automotive
  • RDS (on) (@ Tj = 25°C)
    8 mΩ
Recommended
OPN
FF08MR12W1MA1B11ABPSA1
Product Status active and preferred
Infineon Package AG-EASY1BA-3211
Package Name N/A
Packing Size 24
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package AG-EASY1BA-3211
Package Name -
Packing Size 24
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
EasyPACK™ 1B , 8 mΩ halfbridge module implementing the new CoolSiC ™ Automotive MOSFET 1200V, NTC temperature sensor and PressFIT contact technology . With the full automotive qualification, the field of applications for CoolSIC™ is now extended to high voltage automotive applications with high efficiency and switching frequency requirements, such as HV/HV DC-DC step-up converters, multiphase inverters and fast-switching auxiliary drives like fuel-cell compressors.

Features

  • High gate threshold Vth=4.4V
  • Driving voltage VGS=-5V/ +15V
  • Intrinsic diode with reverse recovery
  • Low stray inductance 5nH
  • Blocking voltage 1200V
  • Low Switching Losses
  • Tvjop=150°C

Benefits

  • Easy system assembly
  • Superior reliability
  • Flexibility (half bridge concept)
  • Integrated NTC temperature sensor
  • Fully qualified automotive applications
  • RoHS compliant
