REF_ENGCOOLFAN1KW

1 kW engine cooling fan reference design powered by 12V vehicle battery
User Manual

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

REF_ENGCOOLFAN1KW
REF_ENGCOOLFAN1KW
User Manual

Product details

  • Board Type
    Reference Board
  • Family
    SFET6 with OptiMOS™ 6, MOTIX™ MCU | 32-bit motor control SoC
  • Input Type
    DC
  • Pout max
    1 kW
  • Qualification
    Automotive
  • Sub Application
    3-phase Motor drive
  • Supply Voltage
    12 V
  • Target Application
    Engine Cooling Fan, radiator fan, 1 kW BLDC motor for 12V application
  • Topology
    3-phase full-bridge
Recommended
OPN
REFENGCOOLFAN1KWTOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

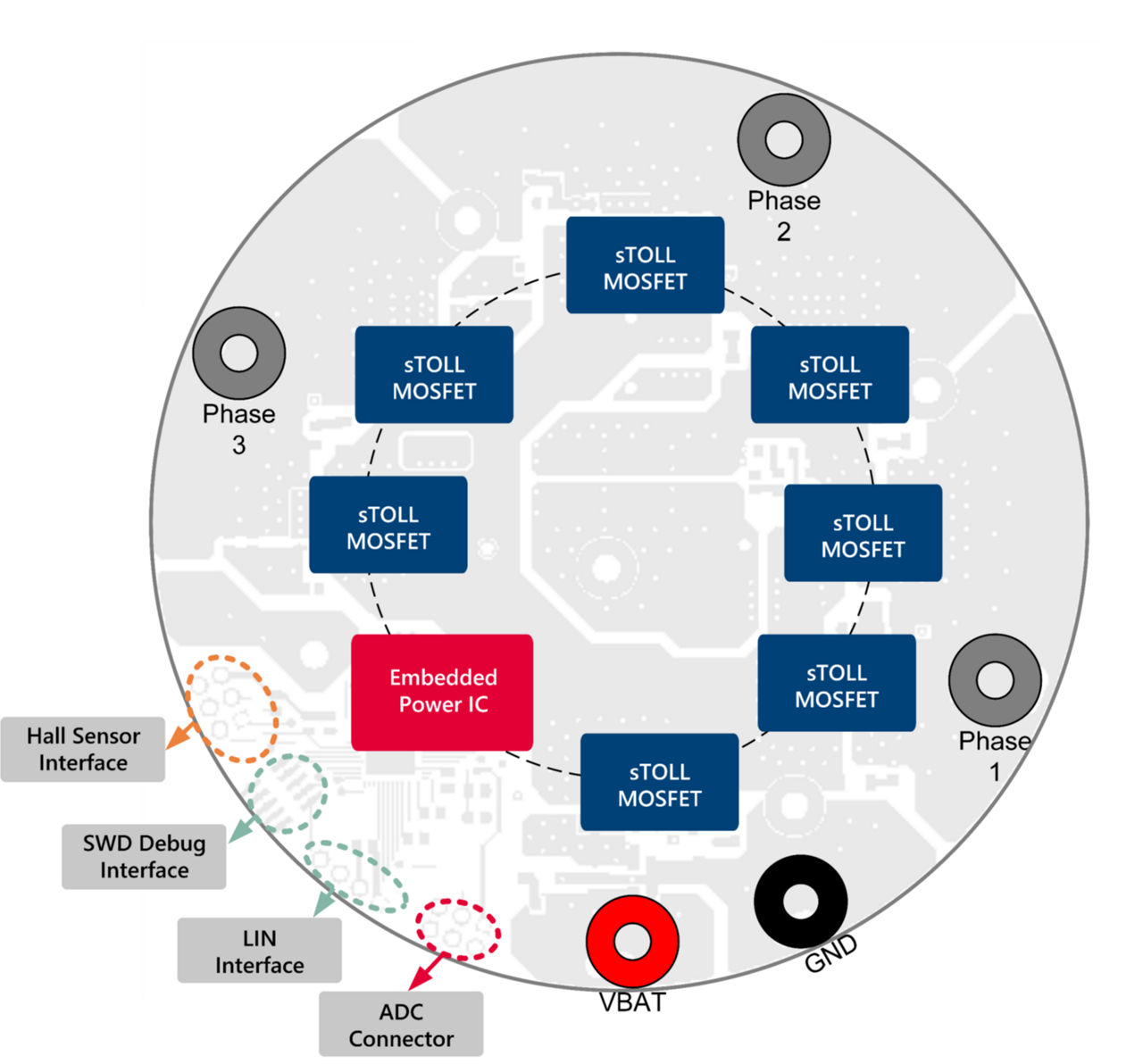

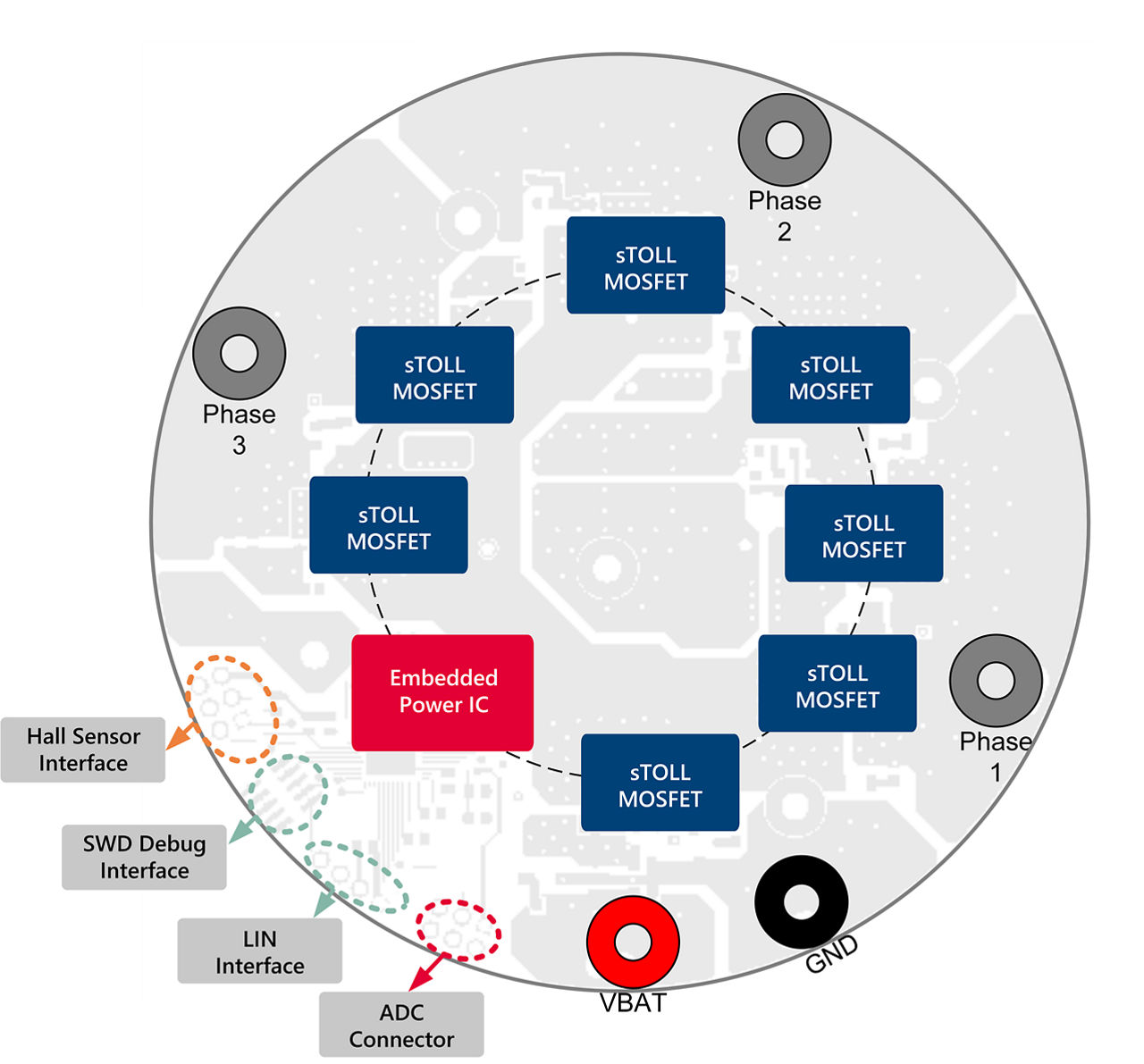

The reference design is an automotive 3-phase motor drive for engine cooling fans, capable of driving 1kW motors at 12V. Key components: TLE9879QXW40: A single chip 3-phase motor driver. IAUA250N04S6N007: An OptiMOS™-6 40 V MOSFET. The reference design is optimized in terms of EMC and thermal performance. Comprehensive support materials are also provided, including layout and schematic files, EMC test reports, thermal analysis data.

Features

  • Up to 1 kW power capability
  • Optimized BOM and PCB size (ø100mm)
  • Optimized thermal behavior
  • SWD port; hall sensor, LIN, ADC ports
  • High-temperature PCB, 6-layer copper
  • Single-side component mounting
  • Extensive documentation including:
    • Layout files and design guide
    • Schematics and getting started guide
    • Hardware design guideline
    • EMC report and thermal analysis
    • Example software

Benefits

  • Reduced time to market
  • Minimal BOM and reduced PCB size
  • State of the art components
  • Scalability of the device

Applications
