EVAL-FFXMR20KM1HDR

Evaluation board for CoolSiC™ MOSFET 2000 V 62 mm half-bridge modules
User Manual
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL-FFXMR20KM1HDR
EVAL-FFXMR20KM1HDR
ea.
User Manual

Product details

  • Applications
    DC/DC Converter, Solar, Solid-State Transformer, UPS
  • Board Type
    Evaluation Board
  • Dimensions
    110x61 mm
  • Family
    CoolSiC™ MOSFET
  • Frequency
    1 kHz to 100 kHz
  • Input Type
    DC
  • Interfaces
    5X2 pin, I²C
  • Motor Power
    7500 W
  • Mounting
    Surface Mount (SMD)
  • Output Current max
    400 A
  • Output Voltage max
    40 V
  • Product Name
    EVAL-FFXMR20KM1HDR
  • Qualification
    Industrial
  • Supply Voltage
    15 V to 24 V
  • Topology
    Half Bridge
Recommended
OPN
EVALFFXMR20KM1HDRTOBO1
Product Status active and preferred
Infineon Package -
Package Name N/A
Packing Size 1
Packing Type BLISTER TRAY
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package -
Package Name -
Packing Size 1
Packing Type BLISTER TRAY
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

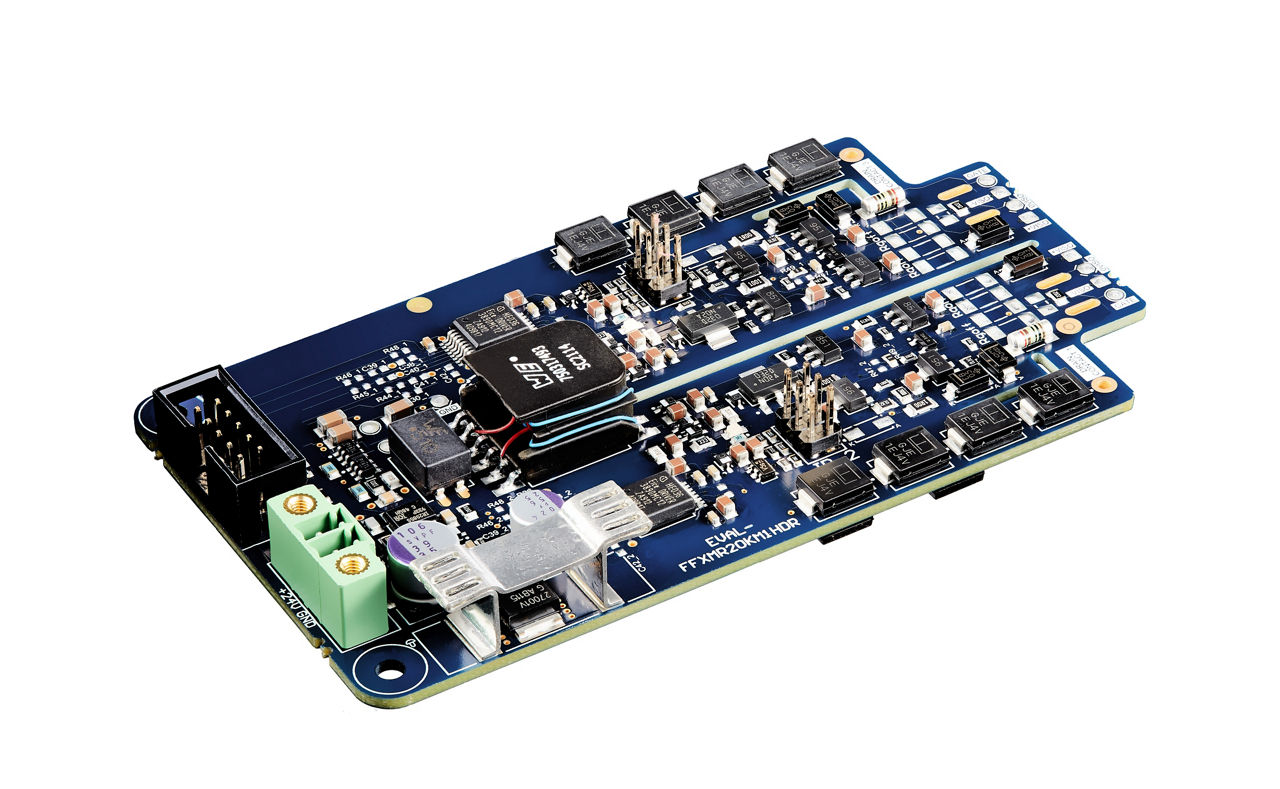

The EVAL-FFXMR20KM1HDR is a gate driver board for driving 62 mm modules with our latest CoolSiC™ MOSFET technology in a half-bridge configuration. It shows a reliable and fast controllability of such devices using the famous 1ED3890MC12M compact gate driver together with a booster stage to increase the driver output power.

Features

  • Half-bridge driver for 62 mm, 2kV modules with CoolSiC™ Trench MOSFET technology
  • Separate source and sink for optimized gate driving
  • Driver IC 1ED3890MC12M or 1ED3890MU12M (X3 digital) with I2C bus for parameter adjustment
  • Hardware undervoltage lockout (UVLO) protection
  • Proper PCB design to limit the PCB heating during operation

Benefits

  • Two-level turn-off (TLTO) with adjustable slopes, plateau time, and plateau level
  • Negative voltage adjustment from -5 V to 0 V
  • Plug-and-play, ready to use board solution for device testing
  • Positive voltage adjustment for high switching frequencies
  • PCB design to limit the PCB heating during operation

Applications
