Gate Driver Board with 1EDI3025AS gate drivers for HybridPACK™ Drive G2 modules with 1200V EDT IGBT Chipset
User Manual

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EV GB HPD2 SI 12
EV GB HPD2 SI 12
User Manual

Product details

  • Applications
    Automotive IGBT Modules
  • Board Type
    Evaluation Board, Reference Board
  • Description

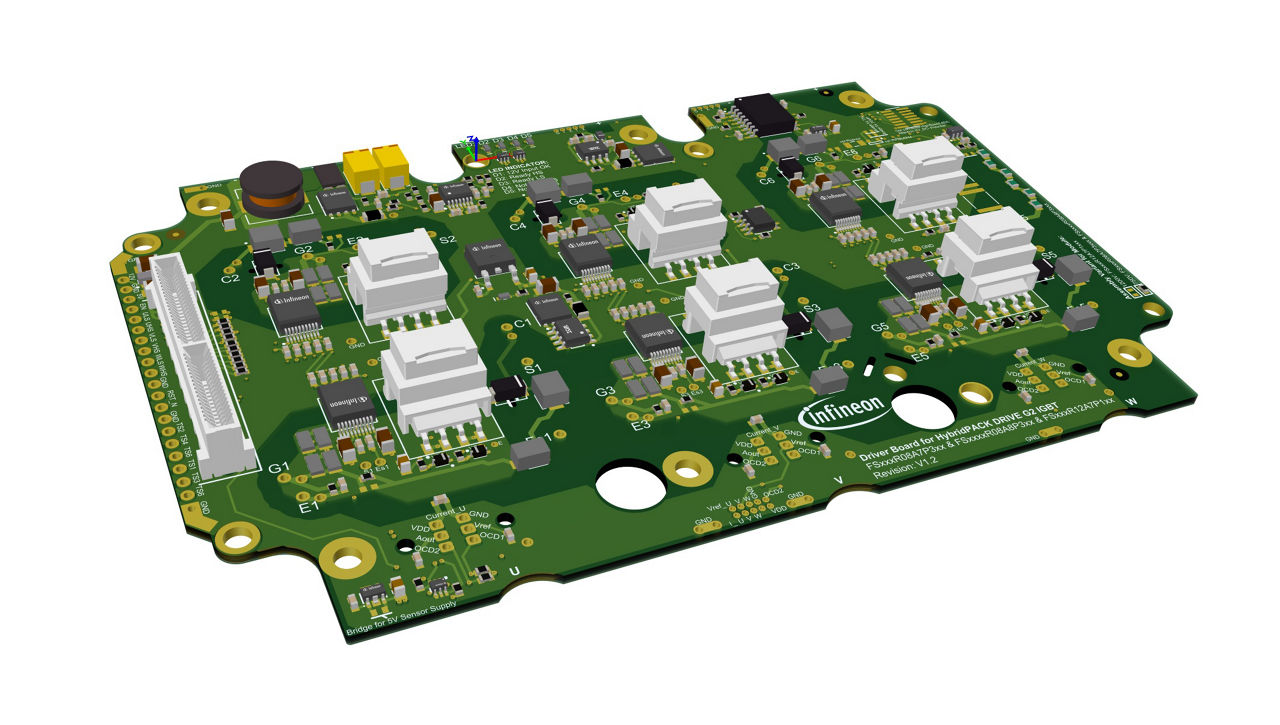

    The HybridPACK™ Drive G2 gate driver board is compatible to all HybridPACK™ Drive SI G2 1200V modules, for all modules FSxxxxR12A7P1xx & FSxxxxR12A8P1xx. It supports Onchip Tempsense with latest Infineon EiceDRIVER™ 1EDI3025AS. It is prepared for Swoboda/IFX Motor Phase Current Sensor.
  • Family
    IGBT Modules
  • Input Type
    DC
  • Interfaces
    PWM & IO
  • Product Name
    The Evaluation Kit for HybridPACK™ Drive G2
  • Qualification
    Automotive
  • Sub Application
    IGBT Modules, Automotive
  • Target Application
    Automotive, Motor Control & Drives, Electromobility, E-Bikes & Small E-Vehicles
  • Topology
    B6 Bridge
Recommended
OPN
EVGBHPD2SI12TOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The HybridPACK™ Drive G2 gate driver board is compatible to all HybridPACK™ Drive SI G2 1200V modules, for all modules FSxxxxR12A7P1xx FSxxxxR12A8P1xx. It supports Onchip Tempsense with latest Infineon EiceDRIVER™ 1EDI3025AS. It is prepared for Swoboda/IFX Motor Phase Current Sensor. not included: power modules, logic board, cooler, oring, software and phase current sensor

Features

  • Features gate driver testing
  • Support for HybridPACK™ Drive G2
  • EiceDriver™ compatibility

Benefits

  • Save design time
  • Ease-of-use
  • Fast IGBT power module evaluation
  • Cross-reference test

Applications

Bill of Material

Documents

Documents

Design resources

Partner solutions

Developer community
