Active and preferred
RoHS Compliant

CYW920829M2EVK-02

User Manual
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

CYW920829M2EVK-02
CYW920829M2EVK-02
ea.
User Manual

Product details

  • Bluetooth Standard
    BLE 5.4
  • Board Type
    Evaluation Kit
  • CAPSENSE™
    No
  • Core
    ARM Cortex-M33
  • External memory
    8-Mbit Serial Flash (optional add-on)
  • Family
    AIROC™ CYW20829 Bluetooth® LE System on Chip
  • GPIOs/Shield Compatibility
    Arduino Uno
  • MCU
    AIROC™ CYW20829
  • On-Board Peripherals
    six-axis IMU, thermistor, RGB LED, user programmable buttons (2) and LEDs (2), Analog mic
  • Programmer/Debugger
    Onboard KitProg
  • Programming/Bridging
    USB-UART (Micro-USB)
  • Protocol
    Bluetooth® LE 5.4
  • RAM
    256 kByte, 96 kByte
  • RF Connectors
    u.FL connector and 2.4 GHz PCB antenna
  • Sensors
    Ambient Light,Analog MIC,Six-axis IMU,Thermistor
  • Software Support
    ModusToolbox
  • Voltage Support
    3.3 V, coin cell, 1.8 V
  • WiFi Standard
    N/A
Recommended
OPN
CYW920829M2EVK-02
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

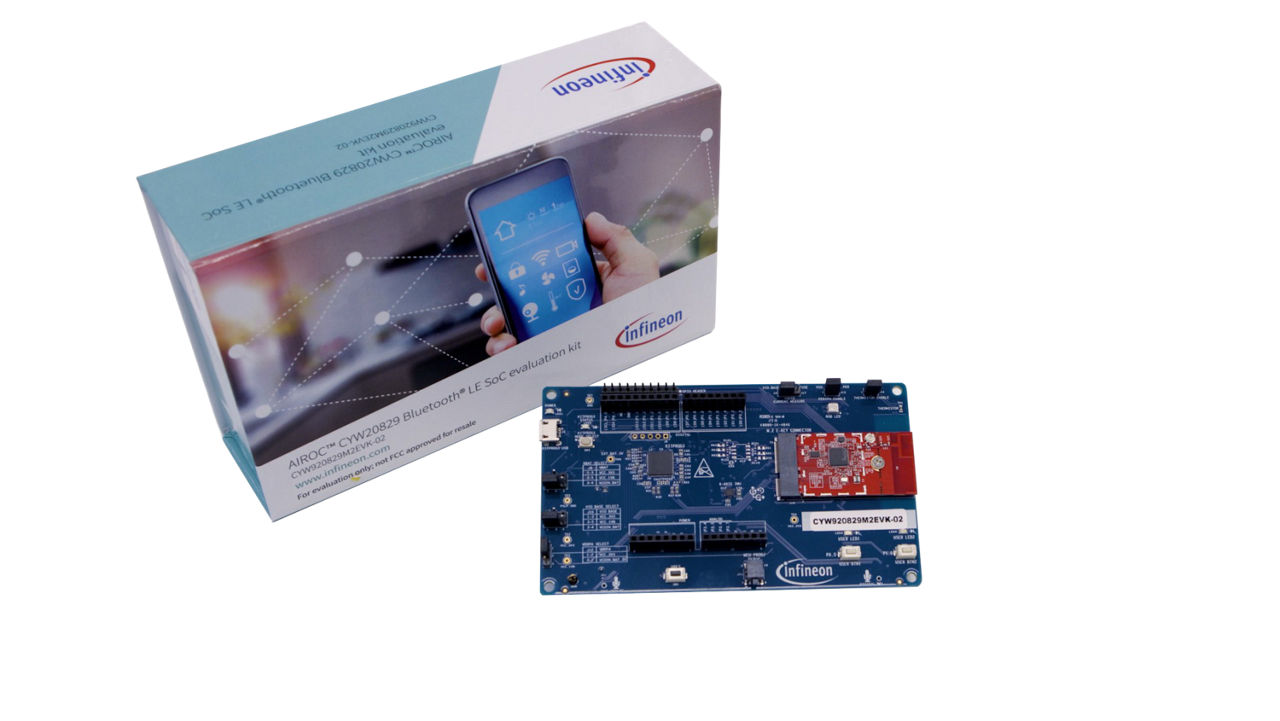

The AIROC™ CYW20829 Bluetooth® LE MCU Evaluation Kit (CYW920829M2EVK-02) with its included on-board peripherals enables evaluation, prototyping, and development of a wide array of Bluetooth® Low Energy applications, all on Infineon’s low power, high performance AIROC™ CYW20829. The AIROC™ CYW20829’s robust RF performance and 10 dBm TX output power without an external power amplifier (PA).

Features

  • Standard Arduino headers support
  • Supports 3.3 V, coin-cell 3 V, and 1.8 V
  • Customizable/Programmable user buttons
  • Onboard micro-USB connector
  • Six-axis Inertial Measurement Unit
  • Thermistor
  • Mic
  • Support for Infineon’s AIROCTM BTSTACK
  • Support for ModusToolbox™ software
  • Code examples from the Infineon GitHub

Benefits

  • Support fast time-to-market
  • Support a wide spectrum of applications

Applications
