CY8CKIT-145-40XX

PSOC™ 4000S CAPSENSE™ Prototyping Kit
User Manual
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

CY8CKIT-145-40XX
CY8CKIT-145-40XX
ea.
User Manual

Product details

  • Bluetooth Standard
    BLE 5.1
  • Board Type
    Prototyping Kit
  • CapSense
    Buttons,Slider
  • Connectivity
    Bluetooth Low Energy, Single-mode BLE
  • Core
    Arm Cortex-M0+
  • External memory
    None
  • Family
    PSOC™ 4 Bluetooth® Low Energy, PSOC™ 4000S Microcontroller
  • Features
    One User button,One User LED.
  • GPIOs/Shield Compatibility
    Extended GPIO Header
  • Hardware Compatibility
    N/A
  • Input Type
    DC
  • Programmer/Debugger
    Onboard KitProg
  • Programming/Bridging
    USB-Serial
  • Qualification
    Industrial, Consumer
  • Sensors
    None
  • Software Ecosystem
    Modus Toolbox
  • Software Support
    ModusToolbox,PSoC Creator
  • Target Application
    Industrial automation, Home entertainment, Wearables
  • WiFi Standard
    N/A
Recommended
OPN
CY8CKIT-145-40XX
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

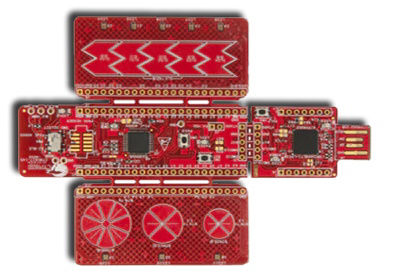

The PSOC™ 4000S Prototyping Kit enables users to evaluate and develop with the fourth-generation, low-power CAPSENSE™ solution using the PSOC™ 4000S device. The kit is designed with a snap-away form-factor, allowing users to separate the KitProg from the target board to use it independently. The PSOC 4000S Proto Kit also integrates KitProg2, which enables onboard programming, debugging, and bridging functionality such as USB-UART and USB-I2C.

Features

  • PSOC™ 4000S device, 32KB Flash, 4KB SRAM
  • 3 CAPSENSE™ Buttons
  • 5 segment CAPSENSE™ slider
  • LEDs for visual feedback
  • CMOD, CTANK, CintA, CintB capacitors
  • Bypass caps for quality AtoD conversions
  • A push button for a simple user input
  • Load caps for external crystal
  • EZ-BLE® PRoC™ Module
  • 5-V operation

Benefits

  • 32-bit, 48-MHz ARM Cortex-M0+ CPU
  • Low Power 1.71 to 5.5-V Device Operation
  • 10-bit ADC, 7-bit iDAC
  • Capacitive Sensing
  • Five 16-bit TCPWM block
