OptiMOS™ 5 n-channel power MOSFETs in 80 V and 100 V

Industry-leading OptiMOS™ 5 power MOSFETs in 80 V and 100 V for telecom and server power supplies

anchor

Overview

Infineon's OptiMOS™ 5 industrial power MOSFET devices in 80 V and 100 V are designed for synchronous rectification in telecom and server power supply applications; they are also the ideal choice for other applications such as solar, low-voltage drives, and laptop adapters.

Key Features

  • Synchronous rectification optimized
  • High switching frequency
  • Low output capacitance
  • Low RDS(on)

Products

About

OptiMOS™ 5 portfolio for high-efficiency and power density

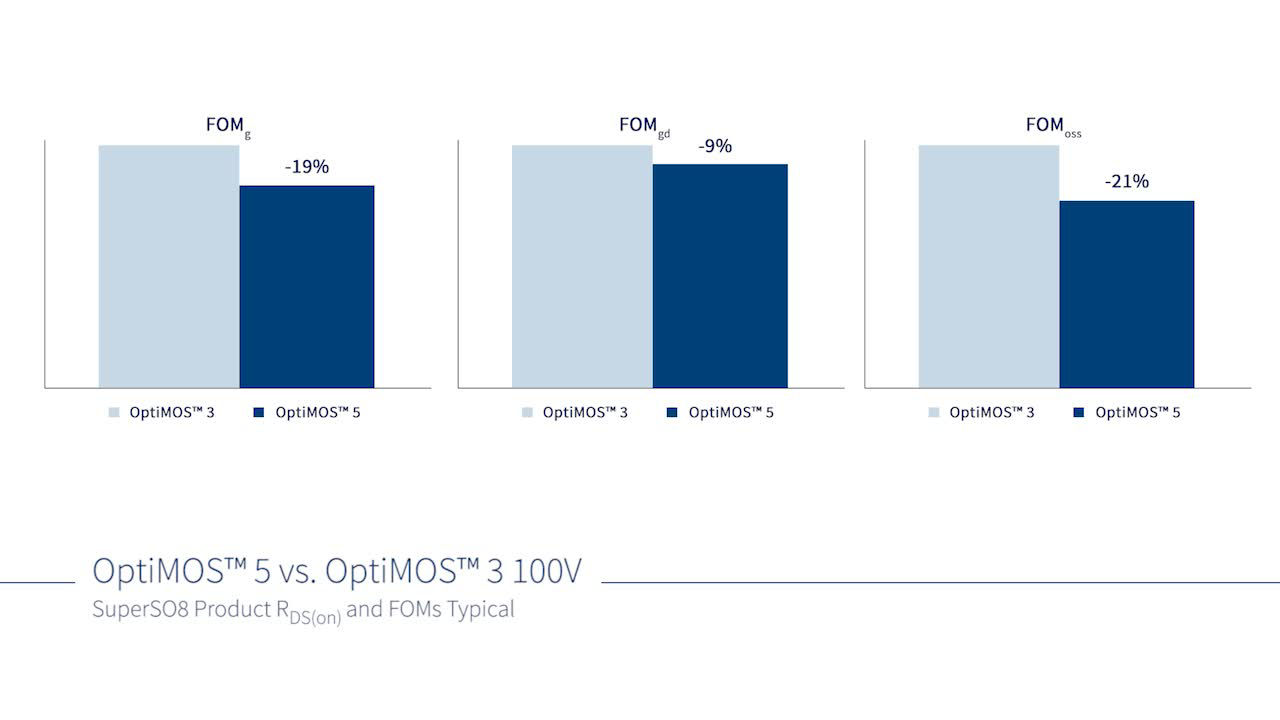

With a broad package portfolio, the OptiMOS™ 5 family of power MOSFETs offers the industry’s lowest RDS(on), as low as 2.7 mΩ in the SuperSO8 package, providing the highest level of power density and efficiency.

Key benefits of OptiMOS™ 5 MOSFETs in 80 V/100 V

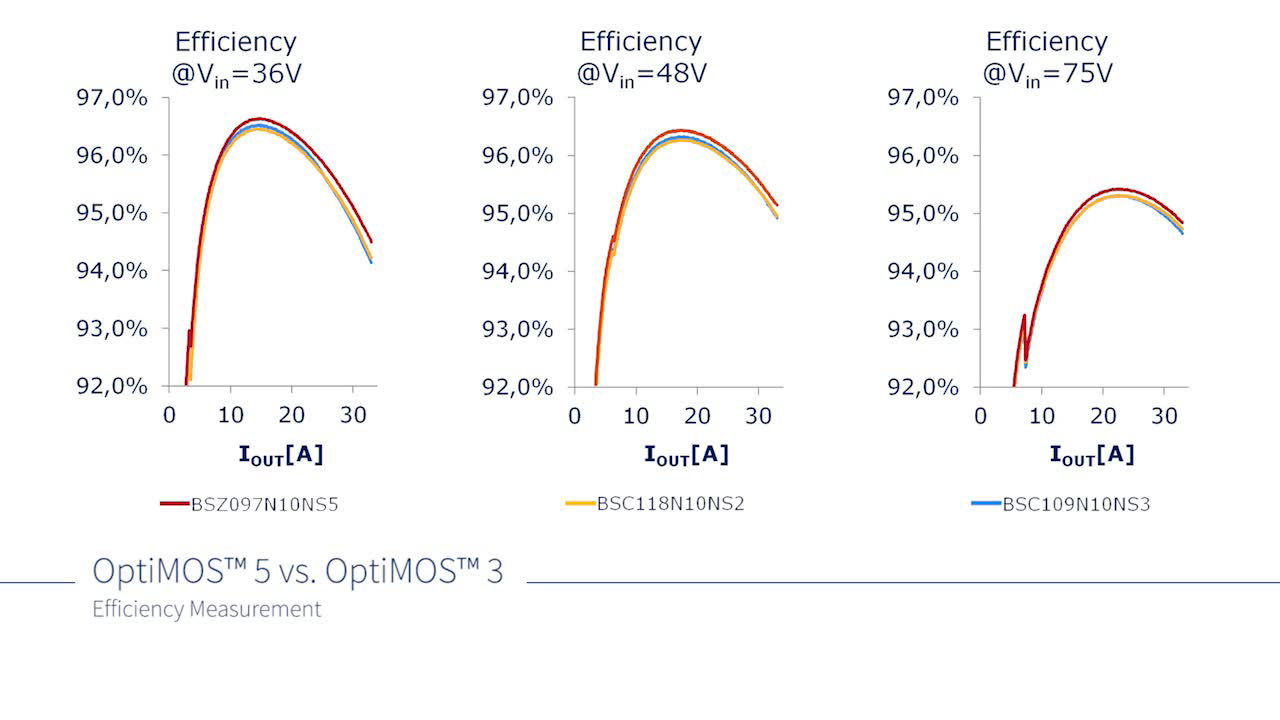

OptiMOS™ 5 MOSFETs provide high system efficiency, reduced switching and conduction losses, increased power density, and a low voltage overshoot. The 100 V OptiMOS™ 5 MOSFET has a 5 V lower voltage overshoot compared to the next best competitor. In addition to its use in isolated DC-DC converters, these can also be used in telecom application blocks including OR-ing, hotswap, and battery protection.

Package portfolio

OptiMOS™ 5 power MOSFETs in 80 V and 100 V are available in a variety of packages from surface mount technology to through-hole technology to meet your design requirements.

The package portfolio includes:

  • DPAK
  • D²PAK
  • D²PAK-7pin
  • PQFN 3.3 x 3.3
  • PQFN3.3 x 3.3 Source-Down
  • SuperSO8
  • sTOLL
  • TOLL
  • TOLG
  • TOLT
  • TO-220

OptiMOS™ 5 portfolio for high-efficiency and power density

With a broad package portfolio, the OptiMOS™ 5 family of power MOSFETs offers the industry’s lowest RDS(on), as low as 2.7 mΩ in the SuperSO8 package, providing the highest level of power density and efficiency.

Key benefits of OptiMOS™ 5 MOSFETs in 80 V/100 V

OptiMOS™ 5 MOSFETs provide high system efficiency, reduced switching and conduction losses, increased power density, and a low voltage overshoot. The 100 V OptiMOS™ 5 MOSFET has a 5 V lower voltage overshoot compared to the next best competitor. In addition to its use in isolated DC-DC converters, these can also be used in telecom application blocks including OR-ing, hotswap, and battery protection.

Package portfolio

OptiMOS™ 5 power MOSFETs in 80 V and 100 V are available in a variety of packages from surface mount technology to through-hole technology to meet your design requirements.

The package portfolio includes:

  • DPAK
  • D²PAK
  • D²PAK-7pin
  • PQFN 3.3 x 3.3
  • PQFN3.3 x 3.3 Source-Down
  • SuperSO8
  • sTOLL
  • TOLL
  • TOLG
  • TOLT
  • TO-220
