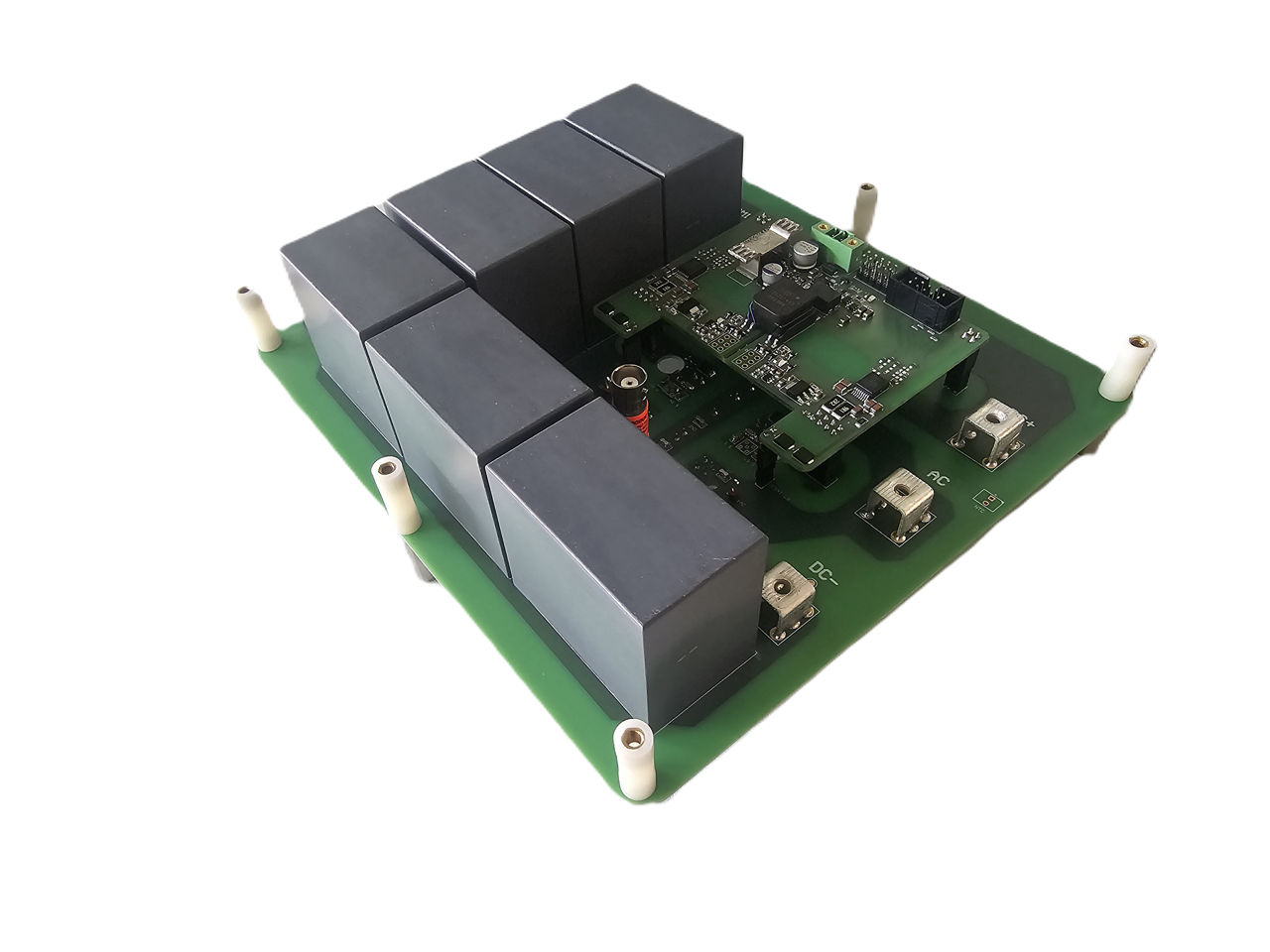

EVAL-FFXMR20W2M1HX

Double pulse testing evaluation board for CoolSiC™ MOSFET FF6MR20W2M1H_B70
User Manual
Multiple OPNs available
ea.

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL-FFXMR20W2M1HX
EVAL-FFXMR20W2M1HX
ea.
User Manual

Product details

  • Applications
    EV Charging, ESS PFC, DCDC stages, Solar applications
  • Board Type
    Evaluation Board
  • Dimensions
    240x201mm
  • Family
    CoolSiC™ MOSFET
  • Interfaces
    I2C BUS
  • Mounting
    Surface Mount (SMD), THT
  • Output Current max
    160 A
  • Output Voltage max
    1500 V
  • Product Name
    EVAL-FFXMR20W2M1HX
  • Qualification
    Industrial
  • Sub Application
    DCDC stages
  • Supply Voltage
    24 V
  • Target Application
    ESS PFC, DCDC stages, EV Charging
  • Topology
    Half Bridge
Recommended
OPN
EVALFFXMR20W2M1HXTOBO1 EVALFFXMR20W2M1HXTOBO2
Product Status active and preferred active and preferred
Infineon Package - --
Package Name EVAL-FFXMR20W2M1HR -Rogowski EVAL-FFXMR20W2M1HS-Shunt
Packing Size 1 1
Packing Type BLISTER TRAY BLISTER TRAY
Moisture Level N/A N/A
Moisture Packing NON DRY NON DRY
Lead-free No No
Halogen Free No No
RoHS Compliant No No
Infineon stock last updated:
 ea. in stock ea. in stock

Product Status
Active
Infineon Package -
Package Name EVAL-FFXMR20W2M1HR -Rogowski
Packing Size 1
Packing Type BLISTER TRAY
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

Product Status
Active
Infineon Package --
Package Name EVAL-FFXMR20W2M1HS-Shunt
Packing Size 1
Packing Type BLISTER TRAY
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The purpose of this board is to enable the evaluation of the FF6MR20W2M1H_B70 CoolSiC™ MOSFET module in combination with 1ED3890MC12M gate driver. The evaluation board allows users to evaluate the device performance via double-pulse measurements.

Features

  • Half-bridge driver for Easy 2B module
  • CoolSiC™ Trench MOSFET 2 kV technology
  • 1ED3890MC12M or 1ED3890MU12M driver
  • I2C bus for parameter adjustment
  • Two variants for current measurement

Benefits

  • 132 µF on-board bulk film capacitance
  • Pressed-in FF6MR20W2M1H_B70 module
  • Negative gate-drive voltage adjustment
