TLE9562QX

END OF LIFE
The MOTIX™ TLE9562QX is a multifunctional system IC with integrated power supply, communication interfaces, multiple half-bridges
Data Sheet

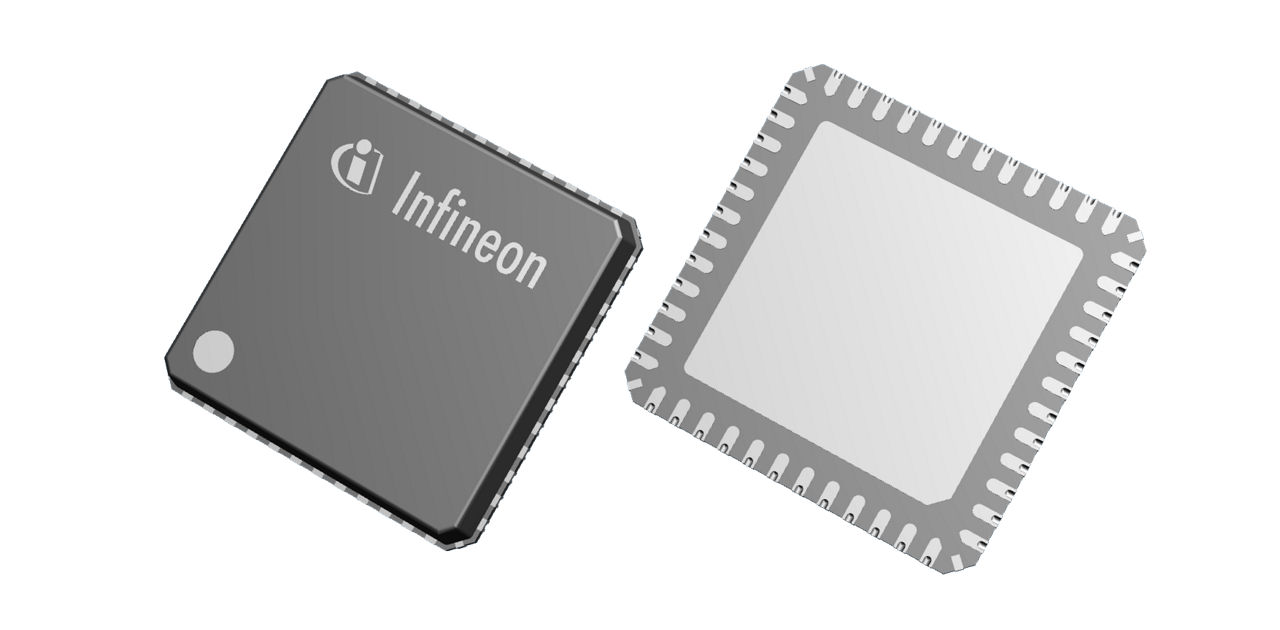

package
board
View replacement

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE9562QX
TLE9562QX
View replacement
Data Sheet

Product details

  • Classification
    ISO 26262-ready
  • Control Interface
    32-bits SPI
  • Family
    MOTIX™ motor system ICs (SBC) for BDC motors
  • Gate current max
    100 mA
  • MCU
    No
  • Planned to be available until at least
    2039
  • Power Stage
    No
  • Qualification
    Automotive
  • Supply Voltage absolute max ratings
    40 V
  • Supply Voltage range
    5.5 V to 28 V
  • Temperature range
    -40 °C to 150 °C
  • Transceiver
    1x CAN FD, 1x LIN
  • Voltage Regulator Output
    5 V / 250mA
OPN
TLE9562QXXUMA1
Product Status discontinued
Infineon Package
PG-VQFN-48
Package Name N/A
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
View replacement

Product Status discontinued
Infineon Package
PG-VQFN-48
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
View replacement
The device provides a 5 V low-dropout voltage regulator, one HS-CAN transceiver supporting CAN FD, one LIN transceiver, four half-bridges for DC motor control, and one 32 bit serial peripheral interface (SPI). This device offers diagnostic and supervision features and is ISO 26262-ready.

Features

  • Low-drop voltage regulator 5 V, 250 mA
  • Half-bridge gate drivers for N-channel
  • Adaptive MOSFET gate control:
  • High-speed CAN supporting CAN FD
  • LIN Transceivers LIN2.2/SAE J2602
  • Four high-side outputs 7 Ω typ
  • High-side and low-side PWM capable
  • Active free-wheeling
  • Up to 25 kHz PWM frequency
  • 32-bit SPI with CRC
  • Ultra-low current in stop & sleep

Benefits

  • Cut PCB size by 50% through integration
  • Efficient MOSFET pre-charge control
  • Product validation
  • Qualified for automotive applications

Diagrams

motor-system-bdc
motor-system-bdc
motor-system-bdc motor-system-bdc motor-system-bdc
×
