FS650R08A4P2

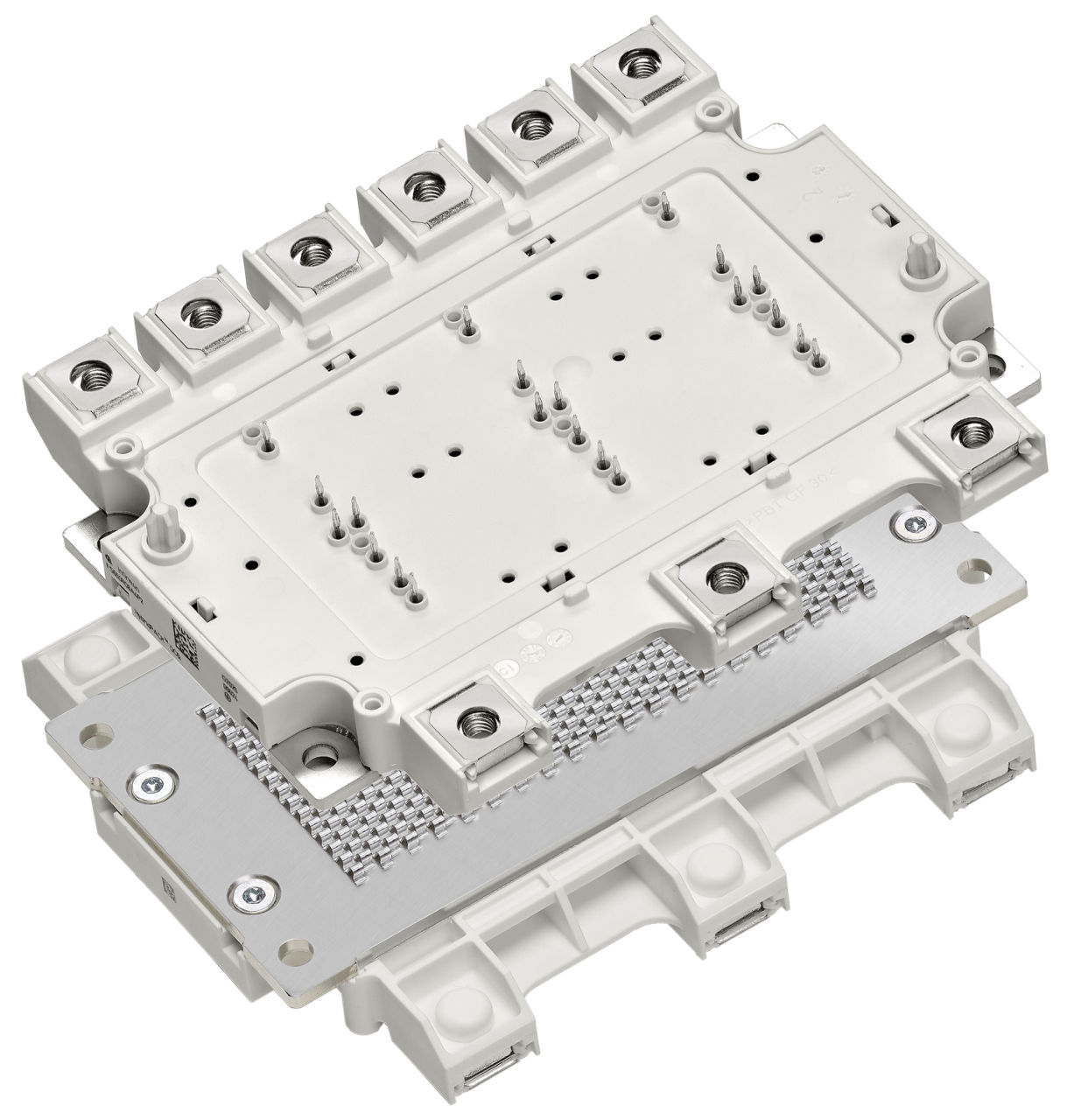

HybridPACK™ DC6i 750V, 650A sixpack automotive qualified IGBT module
Data Sheet
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

FS650R08A4P2
FS650R08A4P2
ea.
Data Sheet

Product details

  • Configuration
    Sixpack
  • Cooling Concept
    Wave baseplate
  • Dimensions (width)
    112.6 mm
  • Dimensions (length)
    140 mm
  • Features
    Wave baseplate
  • Housing
    HybridPACK™ DC6i
  • IC(nom) / IF(nom)
    650 A
  • IC max
    650 A
  • Launch year
    2020
  • Currently planned availability until at least
    2035
  • Qualification
    Automotive
  • Technology
    IGBT EDT2
  • VCE(sat) (Tvj=25°C typ)
    1.1 V
  • VCES (Tvj=25°C typ)
    750 V
  • VF (Tvj=25°C typ)
    1.45 V
  • Voltage Class max
    750 V
Recommended
OPN
FS650R08A4P2BPSA1
Product Status active and preferred
Infineon Package AG-HDC6I-7511
Package Name N/A
Packing Size 16
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package AG-HDC6I-7511
Package Name -
Packing Size 16
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
This power module complements the benchmark EDT2 IGBT generation with Direct Cooled Base Plate with Ribbon Bonds, NTC temperature sensor and PressFIT contact technology for up to 500V DC and 400 Arms capability enabling inverter designs around 100kW power range*.

Features

  • ElectricalBlocking voltage 750V
  • Ic nom: 650A
  • Tvj op = 150°C
  • Operation Temperature Tvj op = 175°C
  • The range of 10kHz switching frequencies
  • 2.5kV AC 1min @ 50Hz
  • Guiding elements for PCB
  • Integrated NTC temperature sensor
  • RoHS compliant

Benefits

  • Very compact design
  • Highest reliability by short circuit
  • Easy and fast assembly through PressFIT
  • Fully qualified for Automotive (AQG324)

Diagrams

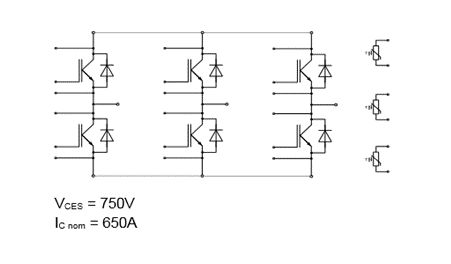

FS650R08A4P2_Diagram
FS650R08A4P2_Diagram
FS650R08A4P2_Diagram FS650R08A4P2_Diagram FS650R08A4P2_Diagram
×
