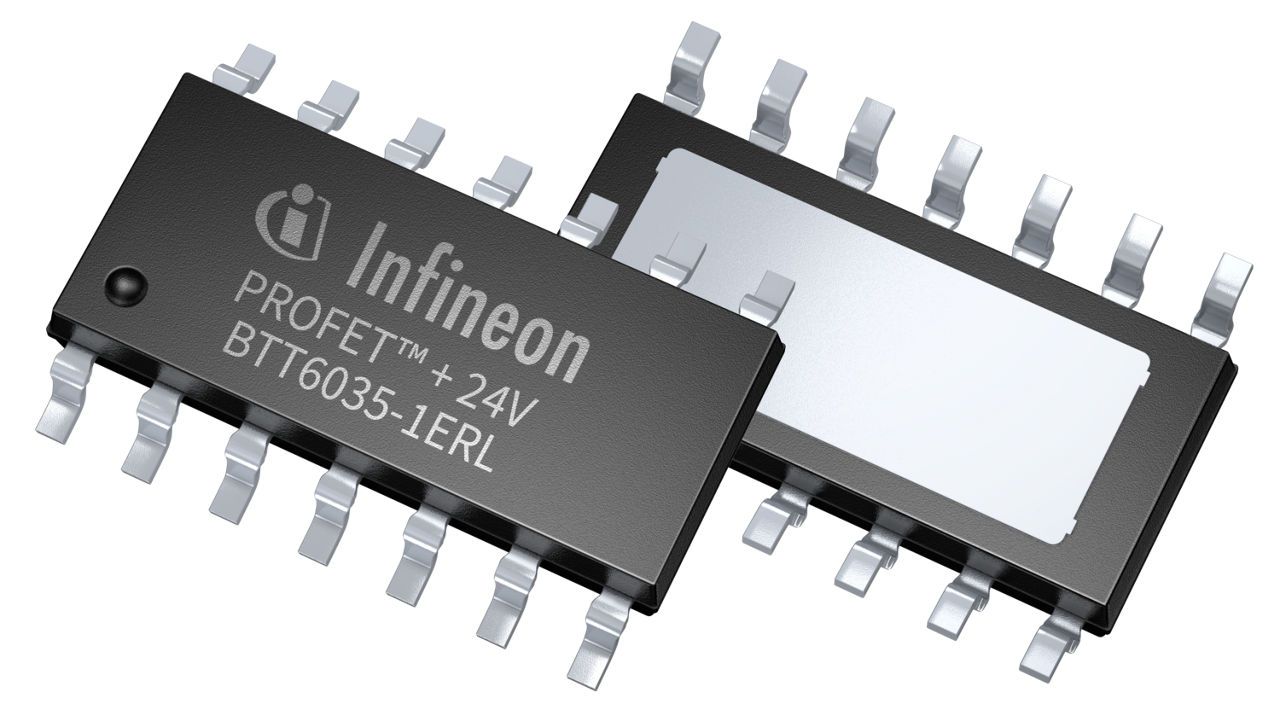

BTT6035-1ERL

NEW
RDS(on) @ Tj = 25°C: 35 mΩ | adjustable current limitation |1 channel| Vs(max) = 48V | PRO-SIL™ ISO 26262-ready
Data Sheet
package
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

BTT6035-1ERL
BTT6035-1ERL
ea.
Data Sheet

Product details

  • Certifications
    ISO 26262-ready
  • Channels
    1
  • Classification
    ISO 26262-ready
  • Diagnostics
    Current Sense
  • Family
    PROFET™ + 24V
  • IL Nominal Current
    5 A
  • Load Current
    5 A
  • Mounting
    SMT
  • Operating Temperature
    -40 °C to 150 °C
  • Planned to be available until at least
    2039
  • Qualification
    Automotive
  • RDS (on) (@ Tj = 150°C) max
    70 mΩ
  • RDS (on) (@ Tj = 25°C)
    35 mΩ
  • Recommended Operating Voltage
    8 V to 36 V
  • toff (Turn OFF time) max
    150 µs
  • ton (Turn ON time) max
    150 µs
Recommended
OPN
BTT60351ERLXUMA1
Product Status active and preferred
Infineon Package
PG-TDSO-14
Package Name N/A
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-TDSO-14
Package Name -
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The BTT6035-1ERL, as part of the PROFET™ + 24 family, features an inbuilt adjustable overcurrent limitation for safeguarding sensitive  loads and supply line wires from abnormal currents. This 35 mΩ single-channel device is fitted for switching large capacitive loads. It comes in a TDSO-14 package and is footprint compatible with family members, offering protection and diagnostic functions for itself, attached loads and power net.

Features

  • RDS(on) of 35 mΩ (typical)
  • Up to 48 V operating voltage
  • 1 channel
  • Adjustable Current limitation
  • Capacitive load switching
  • Self-protection & diagnosis
  • Analog current sense
  • Enhanced energy capability
  • Automotive qualified, AEC-Q100
  • PRO-SIL™ ISO 26262-ready
  • TDSO-14 package
  • Footprint compatible with PROFET™ + 24V

Benefits

  • Flexible current limit thresholds
  • Easy adjustment of overcurrent limit
  • Integrated wire protection - without µC
  • Protect load supply line wires
  • Protect sensitive input filters
  • Allows safe switching of big capacitors
  • No external pre-charge circuit
  • Prevents overdimensioning of the switch
  • Supporting evaluation acc. to ISO 26262
