Thank you for choosing Infineon XENSIV™ PAS CO2 sensor!

Select the board you would like to use:

EVAL_PASCO2_MINIBOARD

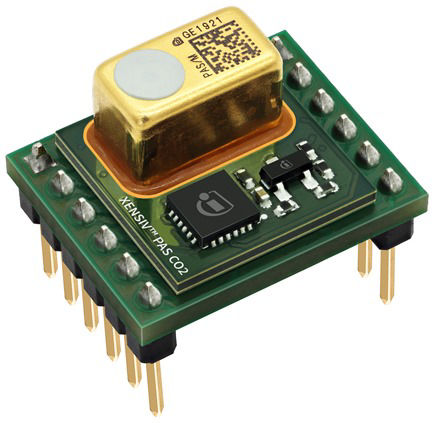

XENSIV™ PAS CO2 Mini Evaluation Board - Measure what matters

The XENSIV™ PAS CO2 Mini Evaluation Board (EVALPASCO2MINIBOARDTOBO1) enables the fast prototyping & design of a CO2 sensing application using Infineon’s revolutionary Photo Acoustic Spectroscopy (PAS) CO2 sensor.

Summary of Features

Compatible with XENSIV™ PAS CO2 Sensor2Go Evaluation Kit for easy lab evaluation
Easy connection to application board with standard 2.54mm pin header – no reflow process needed
Access to all signals and functions of the product
Compatible with a combined PCB layout supporting reflow assembly for later use

Measure what matters - get started with the XENSIV™ PAS CO2 Mini Evaluation Board

In this video you will learn how to get started with the XENSIV™ PAS CO2 Mini Evaluation Board. This video illustrates how fast and easy the sensor is to use for prototyping and design of indoor air quality applications.

Tools & Software

Infineon’s Toolbox supports this platform with a software to enable the evaluation of XENSIVTM PAS CO2 performance.

Where to download the libraries* for XENSIVTM PAS CO2:

Arduino library: Arduino library for Infineon's XENSIV™ PAS CO2 sensor covering interfacing and code examples.

PSoC library: This library provides APIs to interface with the XENSIV™ PAS CO2 sensor that allows user to read the CO2 concentration.

_{* We don’t have any library at the moment for apple support}


EVAL_PASCO2_SENSOR2GO

XENSIV™ PAS CO2 Sensor2Go Evaluation Kit - Measure what matters

The XENSIV^TM PAS CO2 Sensor2Go Evaluation Kit (EVALPASCO2SENSOR2GOTOBO1) has been developed to enable the fast & easy evaluation of Infineon’s revolutionary Photo Acoustic Spectroscopy (PAS) CO2 sensor.

The Sensor2Go Evaluation Kit can be used in combination with the PAS CO2 Mini Evaluation Board

The Sensor2Go Evaluation Kit contains:

XENSIVTM PAS CO2 Evaluation Motherboard
XENSIVTM PAS CO2 Mini Evaluation Board
Micro-USB cable
Graphical User Interface (GUI) and software via Infineon toolbox

Summary of Features

Plug and play: direct connection to PC via micro-USB cable
All key functionalities of the sensor available
Logging of the sensor history
All power supplies generated on board
Device can also be accessed via I2C

Instructions: (How to measure the CO2 concentration with the Evalkit)

Plug in the evalboard (motherboard) with the miniboard (as shown in the image)
Connect the evalkit to the computer via the USB cable
Download the XENSIV PAS CO2 Sensor2Go GUI from the following link: Infineon Toolbox
Find the device in the GUI (in the top left) and connect to it to see the readings

Important Note:

The Miniboard should be attached to the Evalboard such that the PAS Sensor (with the white dot) is on the opposite side of the USB Cable (and near the pin headers)

Measure what matters - get started with the XENSIV™ PAS CO2 Sensor2Go Evaluation Kit

In this video you will learn how to get started with the XENSIV™ PAS CO2 Sensor2Go Evaluation Kit. This video illustrates how fast and easy the sensor is to use. Plug & play CO₂ measurements in ppm readout for indoor air quality monitoring.

SHIELD_PASCO2_SENSOR

XENSIV™ PAS CO2 Shield2Go Board - Measure what matters

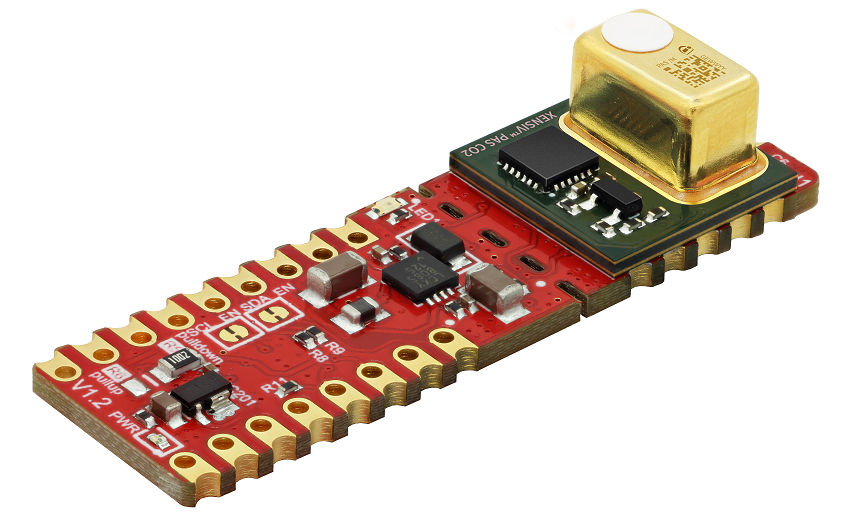

Infineon’s Shield2Go boards offer a unique customer and evaluation experience – this board is equipped with the XENSIVTM PAS CO2 sensor and comes with a ready to use Arduino library (via GitHub).

Summary of Features

XENSIV™ PAS CO2 sensor

Exceptionally small form factor (14 x 13.8 x 7.5 mm3)
Highest accuracy and robust performance at ppm level (±30 ppm ±3% of reading)
SMD package delivered in tape and reel
Advanced compensation and self-calibration algorithms
Various configuration options (e.g. sampling rate, baseline calibration)
and interfaces (UART, I2C, PWM).

Shield2Go board

Ready to use Arduino library on GitHub
Flexibility to develop a custom application with Arduino and Raspberry PI
Fitting security -, additional sensor- & microcontroller boards as well as IoT adapters available on Infineon for Makers | Shield2Go & My IoT - Infineon Technologies for easy mix & match

Prototyping concept for Shield2Go portfolio

Overview of Shield2Go portfolio with Arduino-compatible My IoT Adapter from Infineon for easy, flexible and fast prototyping.

EVAL_PASCO2_MINIBOARD

XENSIV™ PAS CO2 Mini Evaluation Board - Measure what matters

Summary of Features

Compatible with XENSIV™ PAS CO2 Sensor2Go Evaluation Kit for easy lab evaluation
Easy connection to application board with standard 2.54mm pin header – no reflow process needed
Access to all signals and functions of the product
Compatible with a combined PCB layout supporting reflow assembly for later use

Measure what matters - get started with the XENSIV™ PAS CO2 Mini Evaluation Board

Tools & Software

Infineon’s Toolbox supports this platform with a software to enable the evaluation of XENSIVTM PAS CO2 performance.

Where to download the libraries* for XENSIVTM PAS CO2:

Arduino library: Arduino library for Infineon's XENSIV™ PAS CO2 sensor covering interfacing and code examples.

PSoC library: This library provides APIs to interface with the XENSIV™ PAS CO2 sensor that allows user to read the CO2 concentration.

_{* We don’t have any library at the moment for apple support}

EVAL_PASCO2_SENSOR2GO

XENSIV™ PAS CO2 Sensor2Go Evaluation Kit - Measure what matters

The Sensor2Go Evaluation Kit can be used in combination with the PAS CO2 Mini Evaluation Board

The Sensor2Go Evaluation Kit contains:

XENSIVTM PAS CO2 Evaluation Motherboard
XENSIVTM PAS CO2 Mini Evaluation Board
Micro-USB cable
Graphical User Interface (GUI) and software via Infineon toolbox

Summary of Features

Plug and play: direct connection to PC via micro-USB cable
All key functionalities of the sensor available
Logging of the sensor history
All power supplies generated on board
Device can also be accessed via I2C

Instructions: (How to measure the CO2 concentration with the Evalkit)

Plug in the evalboard (motherboard) with the miniboard (as shown in the image)
Connect the evalkit to the computer via the USB cable
Download the XENSIV PAS CO2 Sensor2Go GUI from the following link: Infineon Toolbox
Find the device in the GUI (in the top left) and connect to it to see the readings

Exceptionally small form factor (14 x 13.8 x 7.5 mm3)
Highest accuracy and robust performance at ppm level (±30 ppm ±3% of reading)
SMD package delivered in tape and reel
Advanced compensation and self-calibration algorithms
Various configuration options (e.g. sampling rate, baseline calibration)
and interfaces (UART, I2C, PWM).

Shield2Go board

Ready to use Arduino library on GitHub
Flexibility to develop a custom application with Arduino and Raspberry PI
Fitting security -, additional sensor- & microcontroller boards as well as IoT adapters available on Infineon for Makers | Shield2Go & My IoT - Infineon Technologies for easy mix & match

Prototyping concept for Shield2Go portfolio

Overview of Shield2Go portfolio with Arduino-compatible My IoT Adapter from Infineon for easy, flexible and fast prototyping.
