TLS202B1MB V50

The TLS202B1MB V50 is a monolithic integrated fixed linear voltage post regulator for load currents up to 150 mA.
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLS202B1MB V50
TLS202B1MB V50
ea.
Data Sheet

Product details

  • Accuracy
    3 %
  • Base Product
    TLS202x1MBVxx
  • Budgetary Price €/1k
    0.35
  • Dropout Voltage
    290 mV
  • Early Warning
    no
  • Enable (=Inhibit)
    yes
  • Family
    OPTIREG™ linear Post Regulator
  • Hold
    no
  • Operating Temperature
    -40 °C to 150 °C
  • Operating Voltage
    2.7 V to 18 V
  • Output Current max
    150 mA
  • Output Voltage Type
    5.0 V
  • Over Voltage Protection
    no
  • Currently planned availability until at least
    2037
  • Power Fail
    no
  • Power Good
    no
  • Qualification
    Automotive
  • Quiescent Current
    50 µA
  • Regulator Type
    Post Regulator
  • Reset
    no
  • Status Output
    no
  • Watchdog
    no
Recommended
OPN
TLS202B1MBV50HTSA1
Product Status active and preferred
Infineon Package
PG-SCT595-5
Package Name N/A
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free Yes
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-SCT595-5
Package Name -
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
Regulates input voltage up to 18V to a fixed 5.0V output with ±3% precision. Suitable for low standby current applications with connection to preregulators. Enable/disable feature available. Packaged in small PG-SCT595. Protected against overload, short circuit, and overtemperature. Suitable for automotive applications. Also applicable for other 5.0V voltage stabilization needs.

Features

  • Output Voltage: 5.0 V
  • Output Voltage Accuracy of ±3 %
  • Output Currents up to 150 mA
  • Extended I/O V Op Range of 2.7 V to 18 V
  • Enable Functionality
  • Low Dropout Voltage: typ. 290mV
  • Very Low Current Consumption: typ. 50 μA
  • Very Low Shutdown Current: typ. 0.01 μA
  • Very High PSRR: typ. 63dB at 10 kHz
  • Output Current Limitation
  • Short Circuit protected

Diagrams

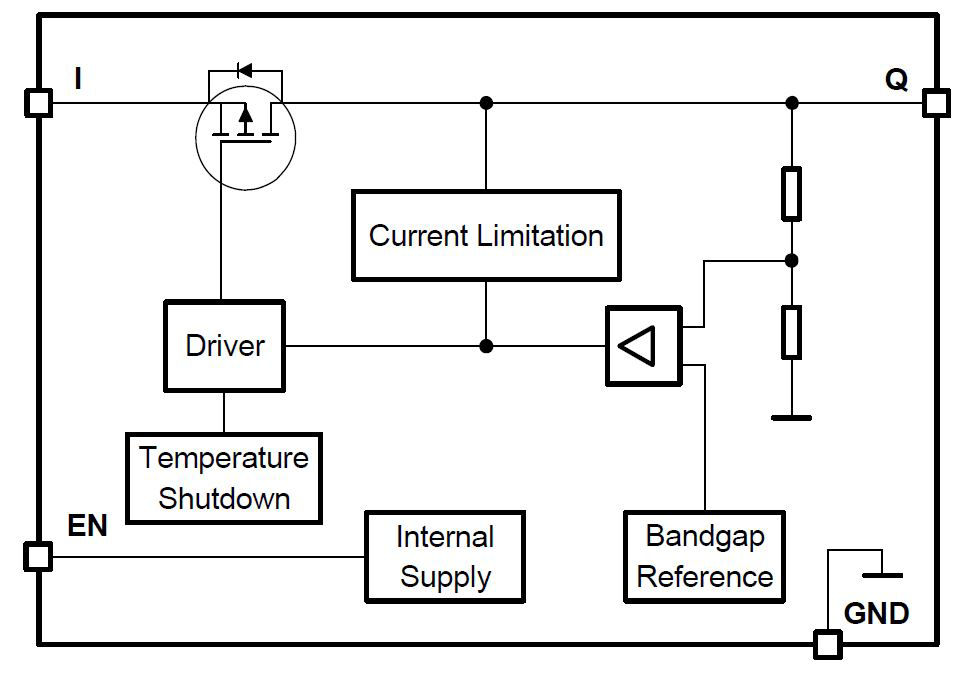

TLS20B1_Block-Diagram
