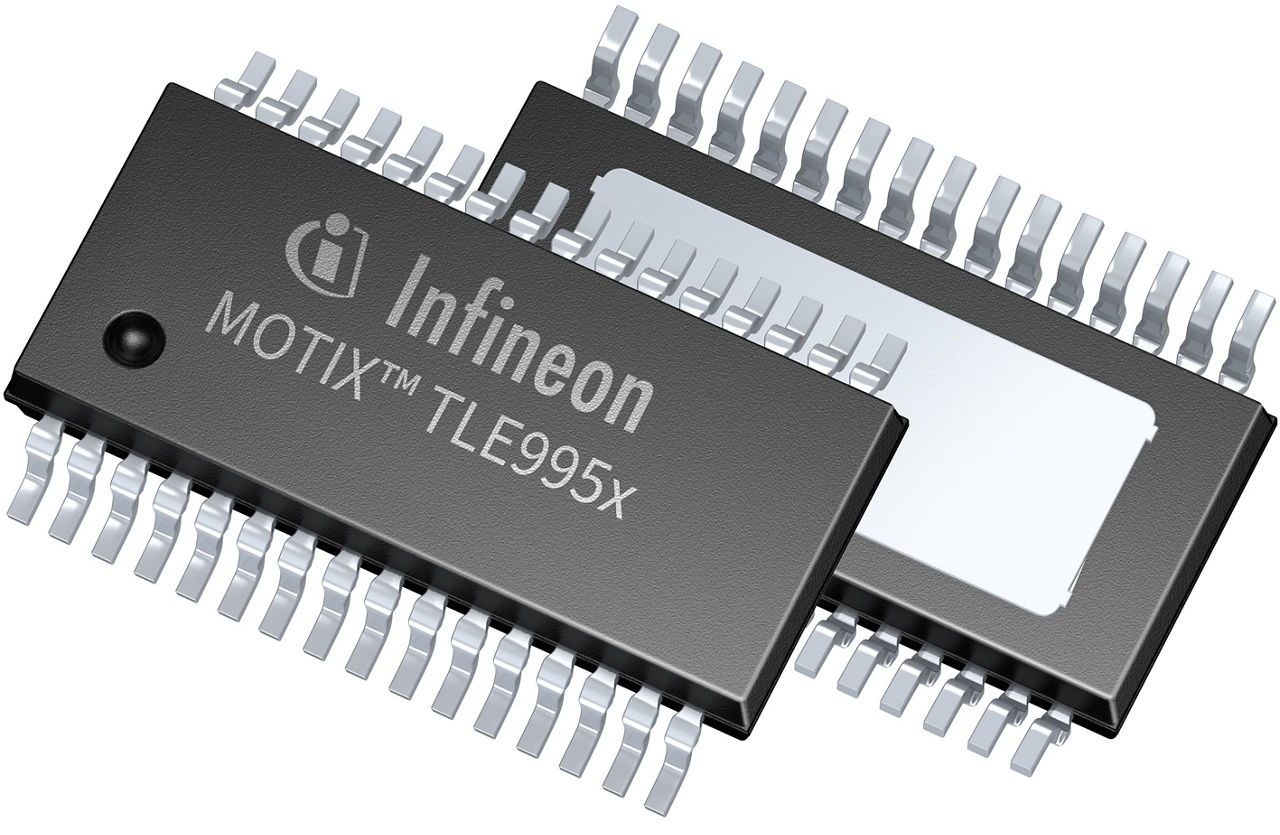

TLE9954EQW40

MOTIX™ TLE9954EQW40 is a cost-effective solution for automotive pumps and fans enabling field-oriented control
Data Sheet
package
board
software
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE9954EQW40
TLE9954EQW40
ea.
Data Sheet

Product details

  • Clock Frequency max
    40 MHz
  • Family
    MOTIX™ 32-bit motor control SoC
  • Frequency
    40 MHz
  • GPIO
    8
  • High Side Switch
    0
  • High Voltage Monitor Input
    1
  • Instruction Set Architecture
    Arm® Cortex®-M23
  • Interfaces
    PWM + LIN
  • Low Side Switch
    0
  • MOSFET Drivers (High Side)
    3
  • MOSFET Drivers (Low Side)
    3
  • Operating Voltage
    5.5 V to 29 V
  • Operational Amplifier
    Yes
  • Planned to be available until at least
    2039, 2039
  • PN MOS DRIVER
    No
  • Product Category
    Microcontroller (MCU)
  • RAM
    6 kByte
  • Solid Flash
    72 kByte
  • Technology
    MOTIX™ MCU
  • Temperature
    - 40°C - 175°C
  • Tj max
    175 °C
Recommended
OPN
TLE9954EQW40XUMA1
Product Status active and preferred
Infineon Package
PG-TSDSO-32
Package Name N/A
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 2a
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-TSDSO-32
Package Name -
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 2a
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The MOTIX™ TLE9954EQW40 is a single-chip 3-phase motor driver with an Arm® Cortex®-M23 core and flash memory. It supports field-oriented control (FOC) and complies with ISO 26262 up to ASIL B for safety. Featuring Arm® TrustZone for security, this AEC-Q100 Grade 0 automotive-qualified device is designed for cost-efficient BLDC motor drive applications like pumps and fans.

Features

  • 32-bit Arm® Cortex®-M23 core, 40 MHz
  • Single power supply from 5.5 V to 29 V
  • On-chip clock generation
  • 72 KB flash, 6 KB RAM, EEPROM emulation
  • LIN with protocol support (LINUART)
  • High voltage monitoring pin (MON)
  • Fast synchronous communication (SSC)
  • Three-phase bridge driver (BDRV)
  • Low-side shunt current sense amplifier
  • Fast 12-bit ADC up to 16 inputs
  • Temperature range: -40°C to 175°C
  • TSDSO-32 package

Benefits

  • Improved hardware features
  • Functional safety (ASIL-B)
  • Cybersecurity (TrustZone)
  • Premium design-in experience
  • Competitive price range
  • FOC capability

Applications
