TLE9564QX

MOTIX™ TLE9564QX is an AEC Q100-qualified system IC for BLDC motors with integrated gate driver, power supply and communication interface.
Data Sheet
package
board

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE9564QX
TLE9564QX
Data Sheet

Product details

  • Channels
    6
  • Classification
    ISO26262-ready
  • Configuration
    Three Phase
  • Current Sense Amplifier
    1xCSA
  • Driving Capability
    90nC at 20kHz
  • Family
    MOTIX™ motor system ICs (SBC)
  • Operating Voltage
    5.5 V to 28 V
  • Output Drivers
    3 x High-Side Switch 150 mA, 1 x Dual-stage Charge Pump
  • Planned to be available until at least
    2039
  • Qualification
    Automotive
  • Supply Voltage
    5.5 V to 28 V
  • Technology
    MOTIX™ SBC
  • Temperature
    - 40°C - 150°C
  • Transceiver
    1 x LIN2.2 / J2602
  • Voltage Regulator Output ((VCC1))
    5V / 250 mA
  • Wake-up Inputs
    Wake Pins, LIN
Recommended
OPN
TLE9564QXXUMA2
Product Status active and preferred
Infineon Package
PG-VQFN-48
Package Name N/A
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
PG-VQFN-48
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
MOTIX™ TLE9564QX motor system IC (SBC) integrates a 5 V low-dropout voltage regulator, LIN transceivers LIN2.2/SAE J2602 with programmable TXD time-out feature and LIN flash mode, three half-bridges for BLDC motor control, one current sense amplifier and one 32-bit serial peripheral interface (SPI). This device offers diagnostic and supervision features and is ISO 26262-ready.

Features

  • Low-drop voltage regulator 5 V
  • Revers battery protection
  • LIN transceivers LIN2.2/SAE J2602
  • Adaptive MOSFET gate control
  • One current sense amplifier
  • Configurable wake-up sources
  • 6 PWM inputs up to 25 kHz
  • Three high-side outputs 7 Ω typ
  • 32-bit serial peripheral interface
  • SPI with cyclic redundancy check (CRC)
  • Configurable time-out
  • Window watchdog

Benefits

  • Diverse protection features
  • Comprehensive monitoring features
  • Improved electromagnetic emission
  • Reduced switching losses in PWM mode
  • Highly efficient constant gate charge
  • Safety documentation - ISO 26262-ready

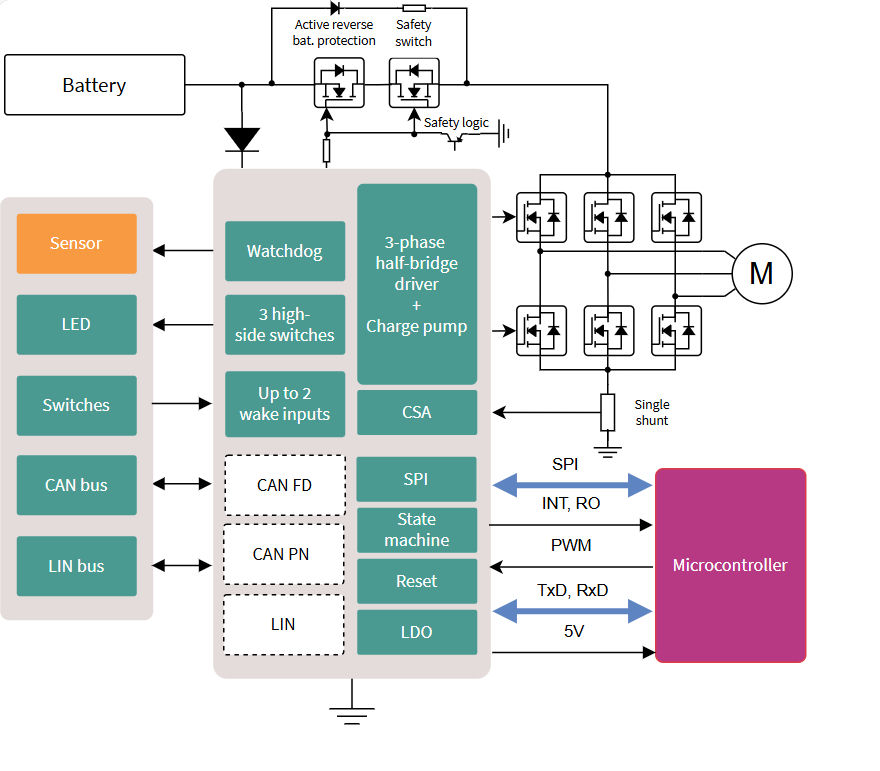

Diagrams

motor-system-bldc
motor-system-bldc
motor-system-bldc motor-system-bldc motor-system-bldc
×
