TLE94003EP

The MOTIX™ TLE94003EP is a protected three-fold half-bridge driver designed to drive small DC motors in automotive applications
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE94003EP
TLE94003EP
ea.
Data Sheet

Product details

  • Diagnostics
    OC, TSD, PSF
  • ID(lim)(multiple)
    3 x 0.9A
  • Inhibit
    Yes
  • Iq
    0.2 µA
  • Mounting
    SMT
  • Operating Voltage
    5.5 V to 20 V
  • Over current detection min
    0.9 A
  • Currently planned availability until at least
    2037
  • Protect
    SC, OT, UV, OV
  • RDS (on) (multiple)
    850 mOhm
  • RDSON_H(typ)
    850 mΩ
  • RDSON_L(typ)
    850 mΩ
  • Supply Voltage absolute max ratings
    40 V
  • Technology
    MOTIX™ Bridge
  • Temperature
    - 40°C - 150°C
Recommended
OPN
TLE94003EPXUMA1
Product Status active and preferred
Infineon Package

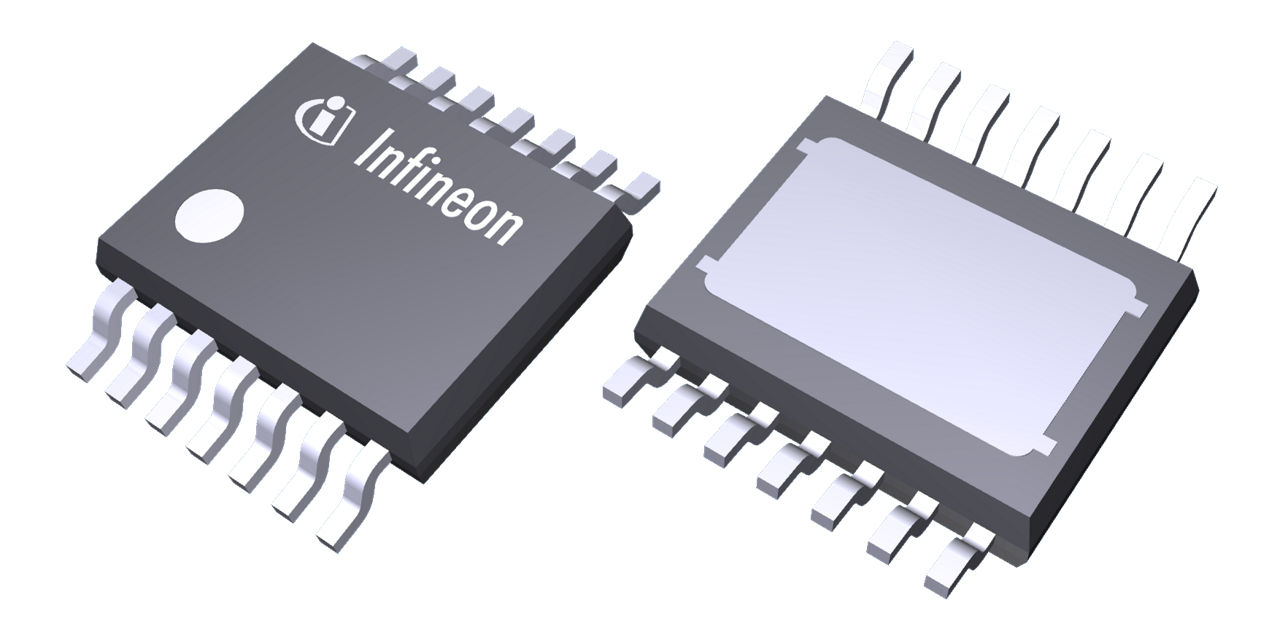

PG-TSDSO-14
Package Name N/A
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 2a
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-TSDSO-14
Package Name -
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 2a
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

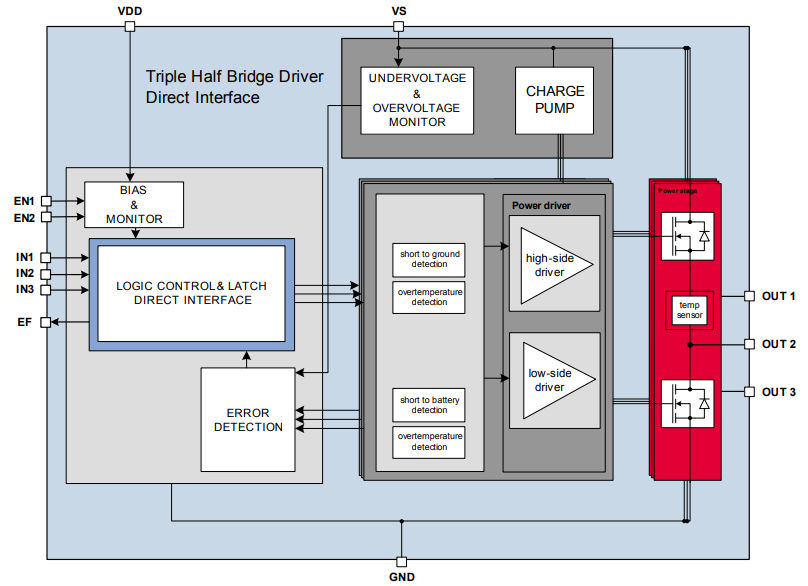

Our family of half-bridge drivers ranges from 3 to 12 outputs, supporting direct interface or SPI. Drive DC motor loads sequentially in forward, reverse, brake, or high impedance modes. Features include short circuit, power supply failure, and overtemperature detection. Ideal for automotive applications with low quiescent current. Compact PG-TSDSO-14 package ensures excellent thermal performance, saving space and reducing costs.

Features

  • Three half-bridges
  • Integrated output stages
  • PWM capability
  • 16-bit DI for control and diagnosis
  • Voltage supply range: 5.5–20 V
  • Short circuit protection
  • Overtemperature protection
  • Cross-current protection

Benefits

  • No external MOSFETS needed
  • Low power consumption in sleep mode
  • Control/diagnos.of outputs via SPI or DI
  • Driving schemes for up to 3 motors
  • Independently diagnosable outputs
