TLE9188QVW

MOTIX™ TLE9188QVW is a gate driver IC is designed for BLDC motor drive applications with PWM generator and ISO 26262 ASIL D compliance.

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE9188QVW
TLE9188QVW

Product details

  • Channels
    3
  • Classification
    ISO 26262-compliant
  • Configuration
    3 phase
  • Current Sense Amplifier
    3xADCs
  • Driving Capability
    250 nC at 20kHz
  • Input Vsm
    4 V to 36 V
  • Operating Voltage
    4 V to 36 V
  • Output Current
    1.5 A
  • Qualification
    Automotive
  • Rise/Fall time
    Typ. 175ns
  • Supply Voltage
    4 V to 36 V
  • Technology
    MOTIX™ Driver
  • Temperature
    - 40°C - 175°C
  • Turn Off Propagation Delay max
    70 ns
  • Turn On Propagation Delay max
    70 ns
  • Voltage range GHx,SHx
    Max 60V
OPN
TLE9188QVWXUMA1
Product Status on request
Infineon Package
Package Name N/A
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status on request
Infineon Package
Package Name -
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
MOTIX™ TLE9188QVW gate driver IC for BLDC motors is uniquely positioned with an innovative digital motor control concept, which uses an integrated digital timer unit for PWM generation and three 12-bit ADCs for accurate current shunt measurement. This digital motor control concept allows the device to be designed in a VQFN-32 package. This device has a supply voltage range from 4V to 36V, which is optimized for automotive 12V battery systems.

Features

  • Drives 6 MOSFETs, Qgtotal=250nC/MOSFET
  • Supply voltage range of 4 V to 36 V
  • 0...100% duty cycle
  • Motor pins rated -15 V for transients
  • Integrated timer unit for PWM generation
  • 3x 12-bit ADCs for current measurement
  • Passive clamping of external FETs
  • Diverse monitoring, diagnostic functions
  • Device monit. (over temp., current,...)
  • Inverter monit. (over-, under,..)
  • MCU & interface: SPI CRC, BISTs,..

Benefits

  • Integrated Sigma-Delta ADC
  • Digital signal transfer to µC in 8/12bit
  • Operational down to 4 V supply
  • Extended temperature range AEC Q100
  • ISO 26262-compliant (ASIL D)
  • Tiny package: VQFN-32 (5x5mm2)

Applications

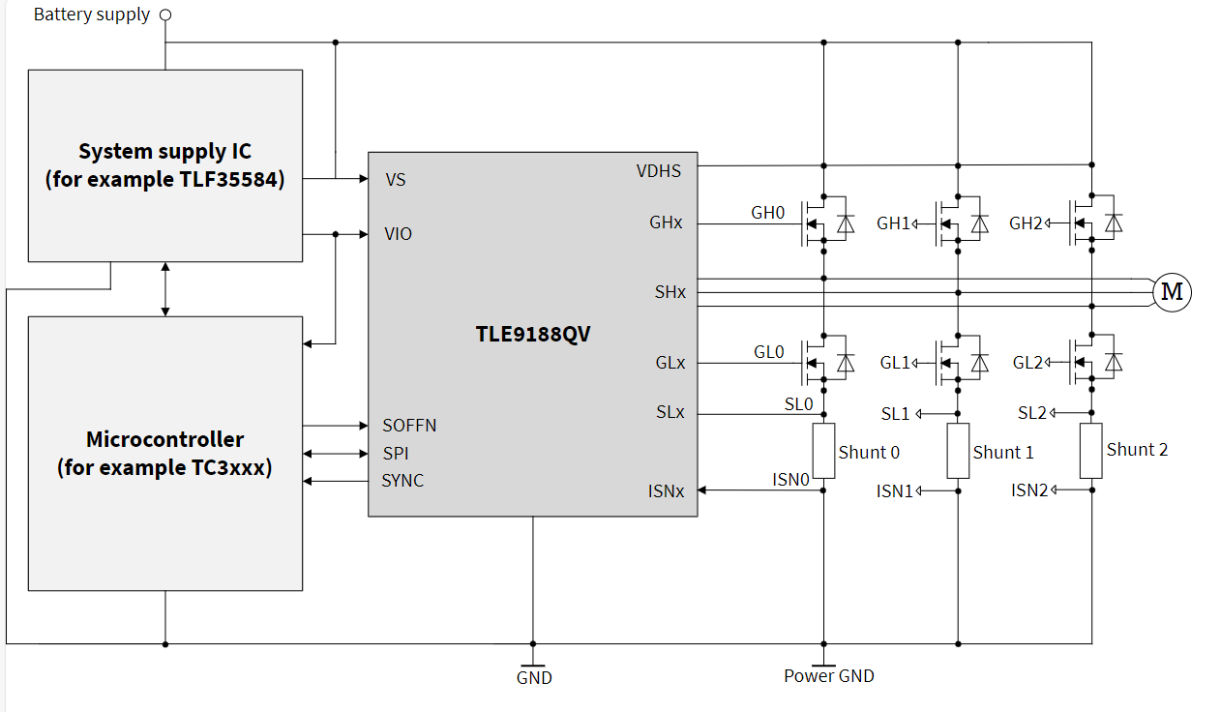

Diagrams

tle9188qv
tle9188qv
tle9188qv tle9188qv tle9188qv
